HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Air Box and Intake Hose Parts Diagram

4x2 Utility Vehicle

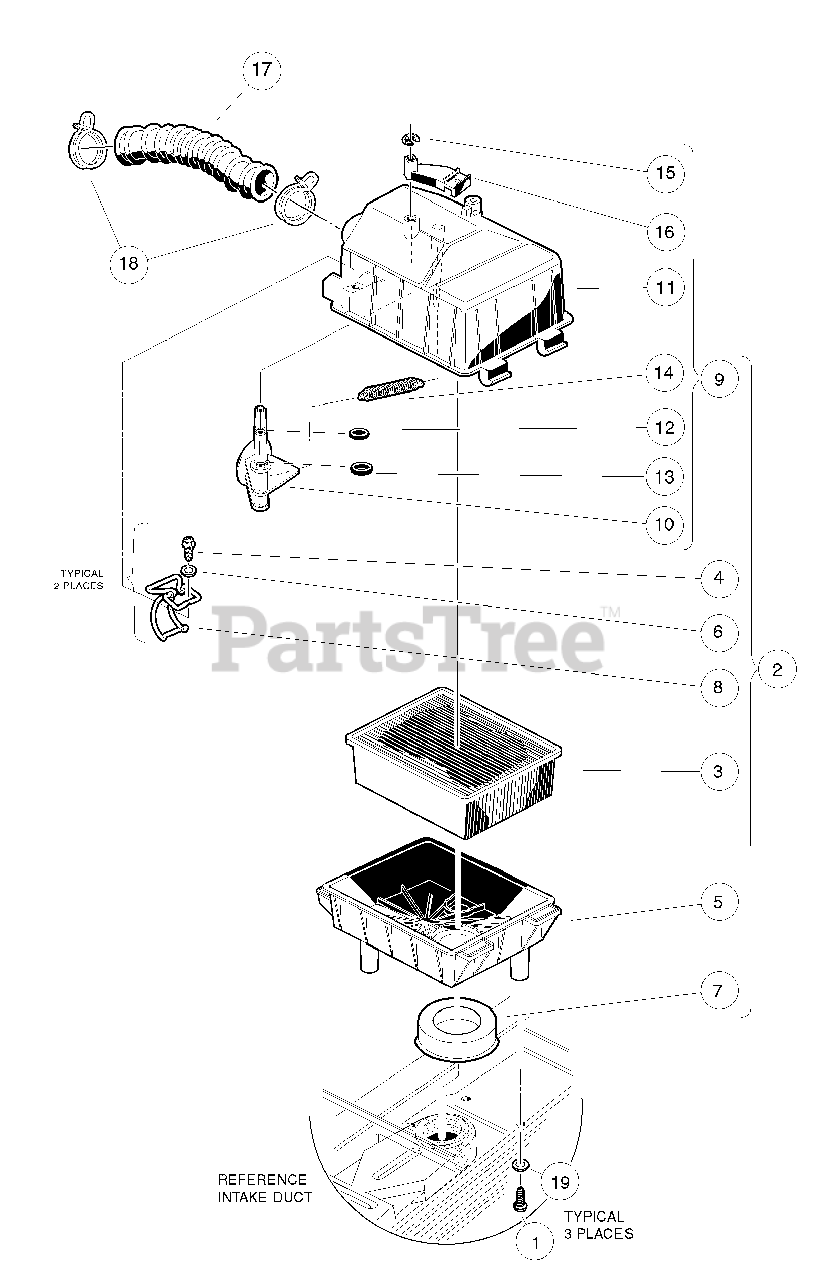

Air Box and Intake Hose Parts Diagram

  • Title

1

Husqvarna 603000268

Screw, #12-16 X 0.625 Hi-Lo

$

$

Not available

2

Husqvarna 603000501

Assembly, Air Box

Note: (includes items 3 through 9)

$

$

Not available

3

Husqvarna 603000004

Filter, Air

$

$

Not available

4

Husqvarna 603000491

Screw, #8 X 0.500, Hex-Head Hi-Lo

$

$

Not available

5

Husqvarna 603000494

Bottom, Air Box

$

$

Not available

6

Husqvarna 603000555

Washer, #8 Stainless-Steel Flat

$

$

Not available

7

Husqvarna 603000592

Seal, Intake

$

$

Not available

8

Husqvarna 603000594

Latch, Wireform

$

$

Not available

9

Husqvarna 603000619

Top Assy, Air Box

Note: (includes items 10 through 16)

$

$

Not available

10

Valve, Choke

$

$

Not available

11

Top, Air Box

$

$

Not available

12

O-Ring, 5/16

$

$

Not available

13

O-Ring, 3/8

$

$

Not available

14

Husqvarna 603000497

Spring, Extension Return

$

$

Not available

15

Husqvarna 603000498

Retaining Ring 0.25, Shaft

$

$

Not available

16

Husqvarna 603000591

Lever, Choke

$

$

Not available

17

Husqvarna 603000523

Hose, Air Intake

$

$

Not available

18

Husqvarna 603000618

Clamp, 1.58" ID Hose

$

$

Not available

19

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available
