HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) TRANSMISSION 2 Parts Diagram

4x2 Utility Vehicle

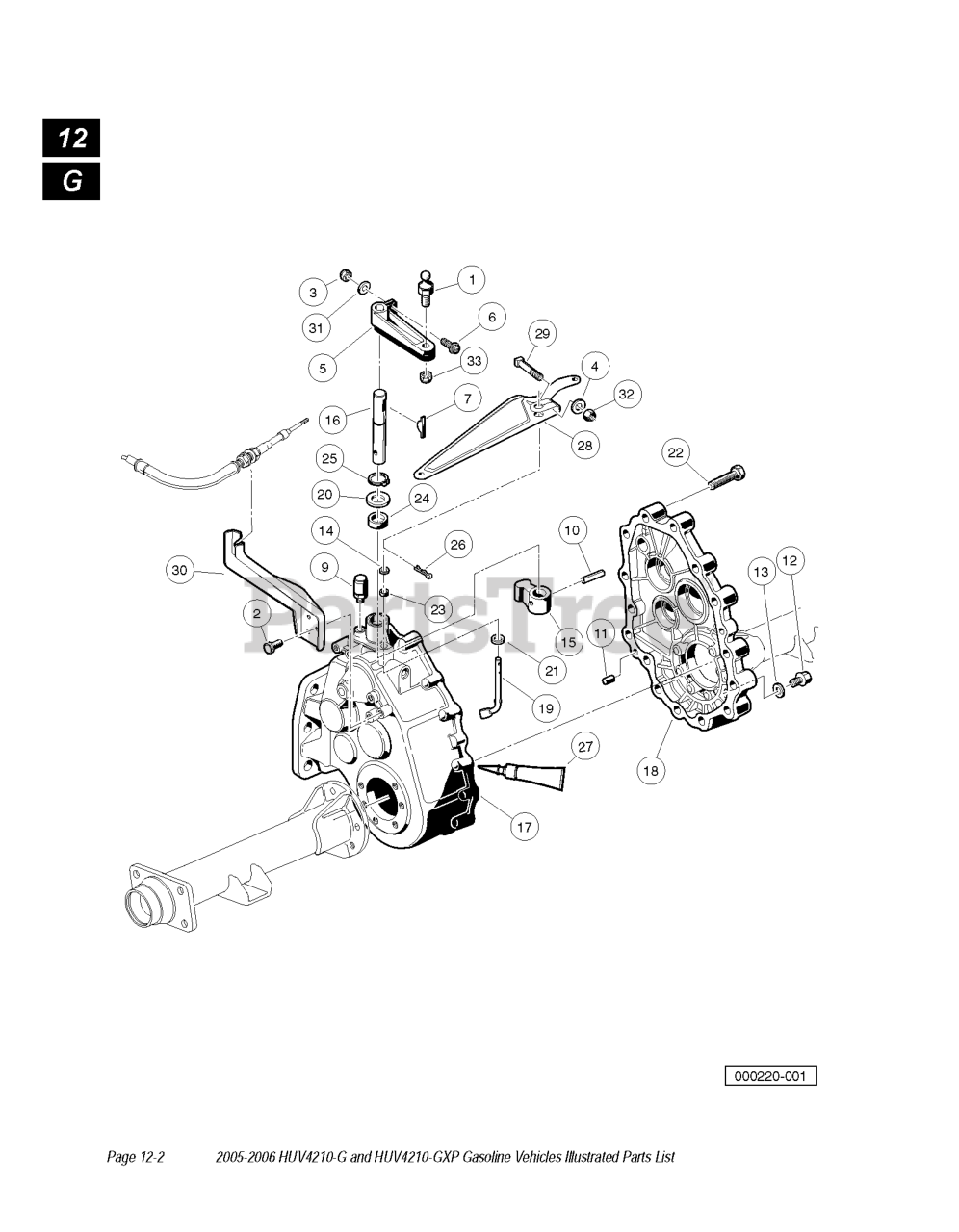

TRANSMISSION 2 Parts Diagram

  • Title

22

Husqvarna 603000596

SCREW, M8-1.25 X 40MM HEX HEAD

$

$

Not available

4

Husqvarna 603000194

WASHER

$

$

Not available

27

Husqvarna 603000607

SEALANT

Note: TRANSAXLE CASE

$

$

Not available

30

Husqvarna 603003233

SHIFTER BRACKET

$

$

Not available

9

Husqvarna 603000150

BREATHER

$

$

Not available

15

Husqvarna 603000561

LEVER - CHANGE

$

$

Not available

24

Husqvarna 603000598

SEAL, OIL

$

$

Not available

12

Husqvarna 603002052

FILL PLUG

$

$

Not available

6

Husqvarna 603000383

SCREW, #1--32 X .75 HX HD MACH

$

$

Not available

20

Husqvarna 603000569

WASHER

$

$

Not available

18

Husqvarna 603003208

CASE - GEAR

Note: PASSENGER SIDE

$

$

Not available

31

Husqvarna 603000051

WASHER FLAT

$

$

Not available

8

Husqvarna 603003192

TRANSAXLE, 11.77 RATIO

$

$

Not available

11

Husqvarna 603000159

DOWEL PIN

$

$

Not available

13

Husqvarna 603000295

GASKET, DRAIN PLUG

$1.99

$

In Stock, Qty 15

0

14

Husqvarna 603000329

WASHER, M6 FLAT

$

$

Not available

17

Husqvarna 603003207

CASE - GEAR

Note: DRIVER SIDE

$

$

Not available

33

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available

3

Husqvarna 603000171

LOCKNUT

$

$

Not available

21

Husqvarna 603000571

WASHER

$

$

Not available

19

Husqvarna 603000563

ARM PIVOT

$

$

Not available

16

Husqvarna 603000562

SHAFT-CHANGE

$

$

Not available

2

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

10

Husqvarna 603000156

ROLL PIN

$

$

Not available

25

Husqvarna 603000599

RING, INTERNAL RETAINING

$

$

Not available

23

Husqvarna 603000597

SEAL, OIL

$

$

Not available

5

Husqvarna 603000288

TRANSMISSION SHIFT LEVER

$

$

Not available

7

Husqvarna 603000387

KEY, WOODRUF

$

$

Not available

32

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

26

Husqvarna 603000606

PIN, COTTER

$

$

Not available

28

Husqvarna 603000520

ARM, GOVERNOR

$

$

Not available

1

Husqvarna 603000117

STUD

$

$

Not available

29

Husqvarna 603000557

SCREW, 1/4-20 X 1.00 SQ HEAD

$

$

Not available
