HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) REAR BRAKE ASSEMBLY Parts Diagram

4x2 Utility Vehicle

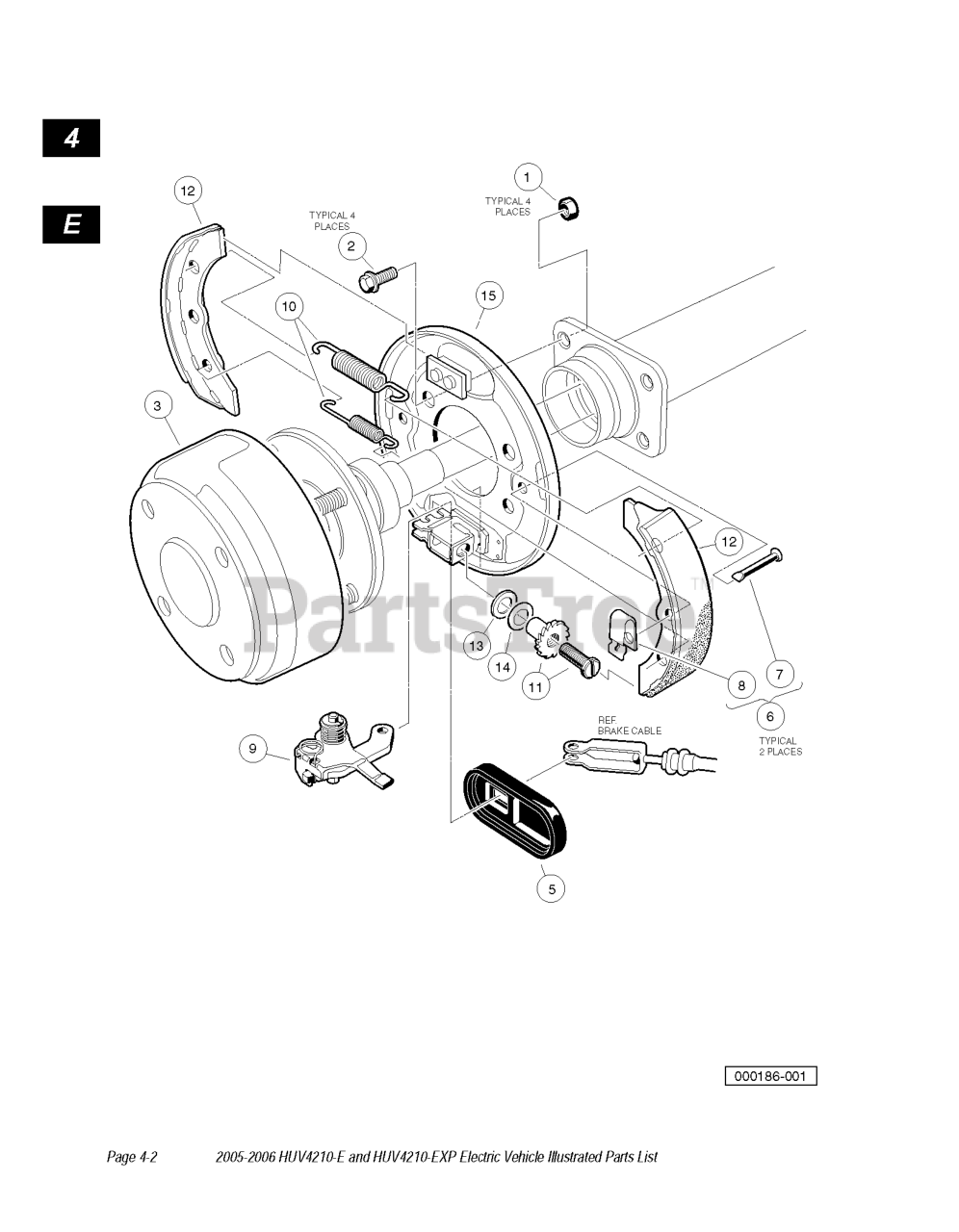

REAR BRAKE ASSEMBLY Parts Diagram

  • Title

6

Husqvarna 603003044

KIT, SHOE RETAINER

$

$

Not available

21

Husqvarna 603003180

LEVER ASM S.A. BRAKE LH

Note: LH

$

$

Not available

24

Husqvarna 603003185

BRAKE SHOE PACKAGE SELF ADJ

$125.99

$

In Stock, only 1 left!

0

27

Husqvarna 603003191

PLATE ASSY, LH BRAKE BACKING

$

$

Not available

16

Husqvarna 603003187

CLUSTER ASSY, LH BRAKE

$

$

Not available

13

Husqvarna 603003188

PLATE WASHER BRAKE SELF ADJ

$

$

Not available

9

Husqvarna 603003179

LEVER ASM S.A. BRAKE RH

Note: RH

$

$

Not available

3

Husqvarna 603003175

DRUM W/O CENTER HOLE, BRAKE

$

$

Not available

4

Husqvarna 603003186

CLUSTER ASSY, RH BRAKE

Note: RH

$

$

Not available

17

Husqvarna 603003038

DUST COVER

$

$

Not available

22

Husqvarna 603003181

PACKAGE BRAKE SPRING SELF ADJ

$

$

Not available

26

Husqvarna 603003189

WASHER BRAKE SELF ADJ

$

$

Not available

12

Husqvarna 603003185

BRAKE SHOE PACKAGE SELF ADJ

$125.99

$

In Stock, only 1 left!

0

2

Husqvarna 603003069

BOLT, BRAKE CLUSTER MOUNTING

$

$

Not available

1

Husqvarna 603000193

NUT

$

$

Not available

23

Husqvarna 603003183

ADJ MECHANISM S.A. LH

Note: LH

$

$

Not available

18

Husqvarna 603003044

KIT, SHOE RETAINER

$

$

Not available

11

Husqvarna 603003182

ADJ MECHANISM S.A. BRAKES RH

Note: RH

$

$

Not available

15

Husqvarna 603003190

PLATE ASSY, RH BRAKE BACKING

Note: RH

$

$

Not available

14

Husqvarna 603003189

WASHER BRAKE SELF ADJ

$

$

Not available

10

Husqvarna 603003181

PACKAGE BRAKE SPRING SELF ADJ

$

$

Not available

25

Husqvarna 603003188

PLATE WASHER BRAKE SELF ADJ

$

$

Not available

5

Husqvarna 603003038

DUST COVER

$

$

Not available
