HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) FRONT UPPER SUSPENSION Parts Diagram

4x2 Utility Vehicle

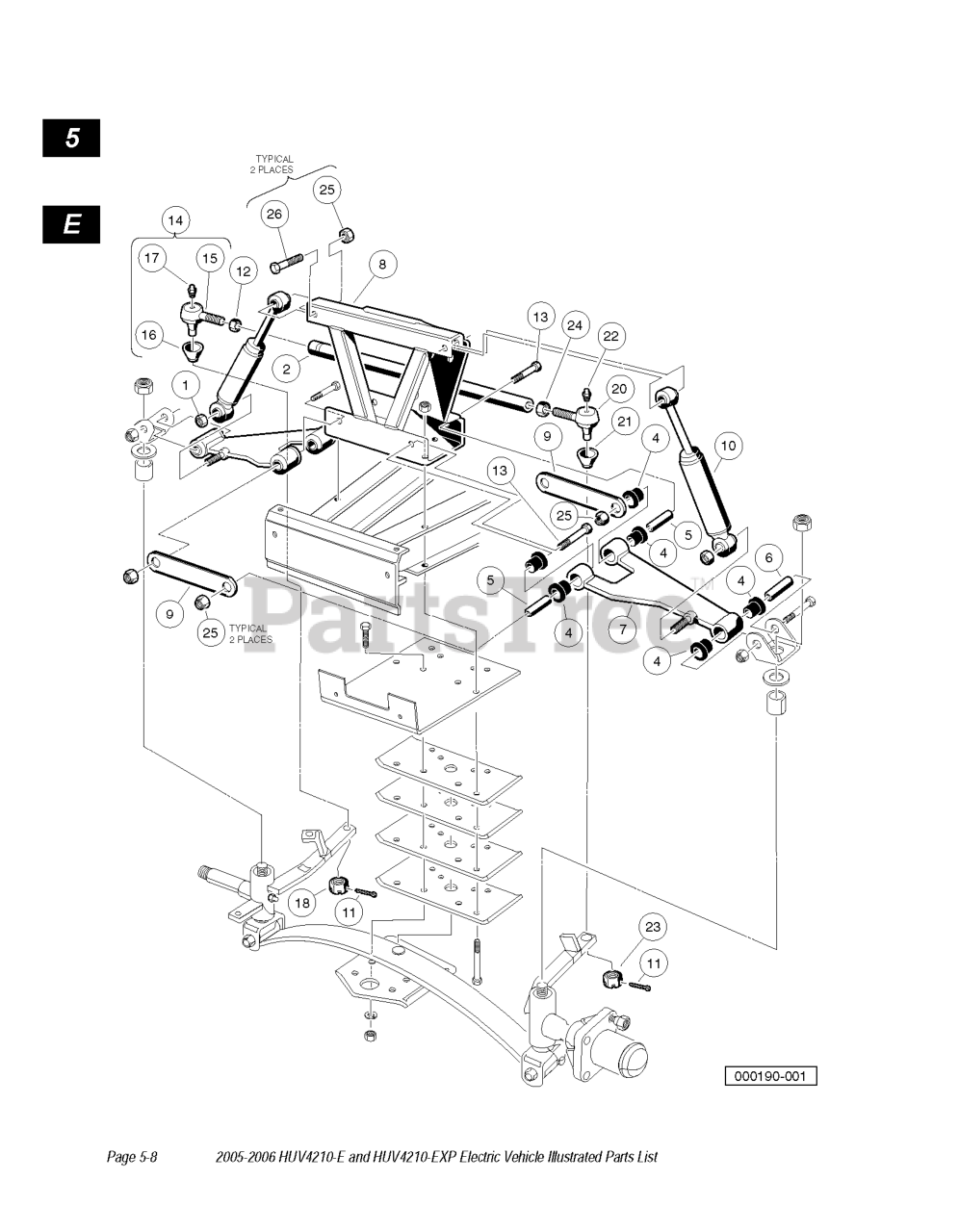

FRONT UPPER SUSPENSION Parts Diagram

  • Title

12

Husqvarna 603003303

NUT, 1/2-20 HEX

$

$

Not available

19

Husqvarna 603002040

BALL JOINT, LH

$

$

Not available

1

Husqvarna 603000101

LOCKNUT, DIMPLED

$

$

Not available

26

Husqvarna 603003311

BOLT, 3/8-16 X 1.75 HEX

$

$

Not available

24

Husqvarna 603003308

NUT, 1/2-20 HEX

$

$

Not available

5

Husqvarna 603003087

SLEEVE, DELTA INNER

$5.49

$

In Stock, only 1 left!

0

14

Husqvarna 603002039

BALL JOINT, RH

$

$

Not available

17

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 603000290

BUSHING, URETHANE

$

$

Not available

22

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 603004377

SHOCK ABSORBER, FRONT, COMMON

$

$

Not available

2

Husqvarna 603003036

ROD, TIE

$

$

Not available

23

Husqvarna 603003309

NUT, 3/8-24 UNF HEX THICK SLOT

$

$

Not available

3

Husqvarna 603003632

DELTA A PLATE SUB ASSEMBLY

$

$

Not available

13

Husqvarna 603003304

SCREW, 3/8-16 X 2.25 HX HD CAP

$

$

Not available

6

Husqvarna 603003088

SLEEVE, DELTA OUTER

$

$

Not available

18

Husqvarna 603003309

NUT, 3/8-24 UNF HEX THICK SLOT

$

$

Not available

11

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

8

Husqvarna 603003091

ASM, DELTA SHOCK & GEAR SUPPOR

$

$

Not available

16

Husqvarna 603003047

SEAL, VERTICAL SOCKET DUST

$

$

Not available

25

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

9

Husqvarna 603003160

A PLATE STRAP

$

$

Not available

21

Husqvarna 603003047

SEAL, VERTICAL SOCKET DUST

$

$

Not available
