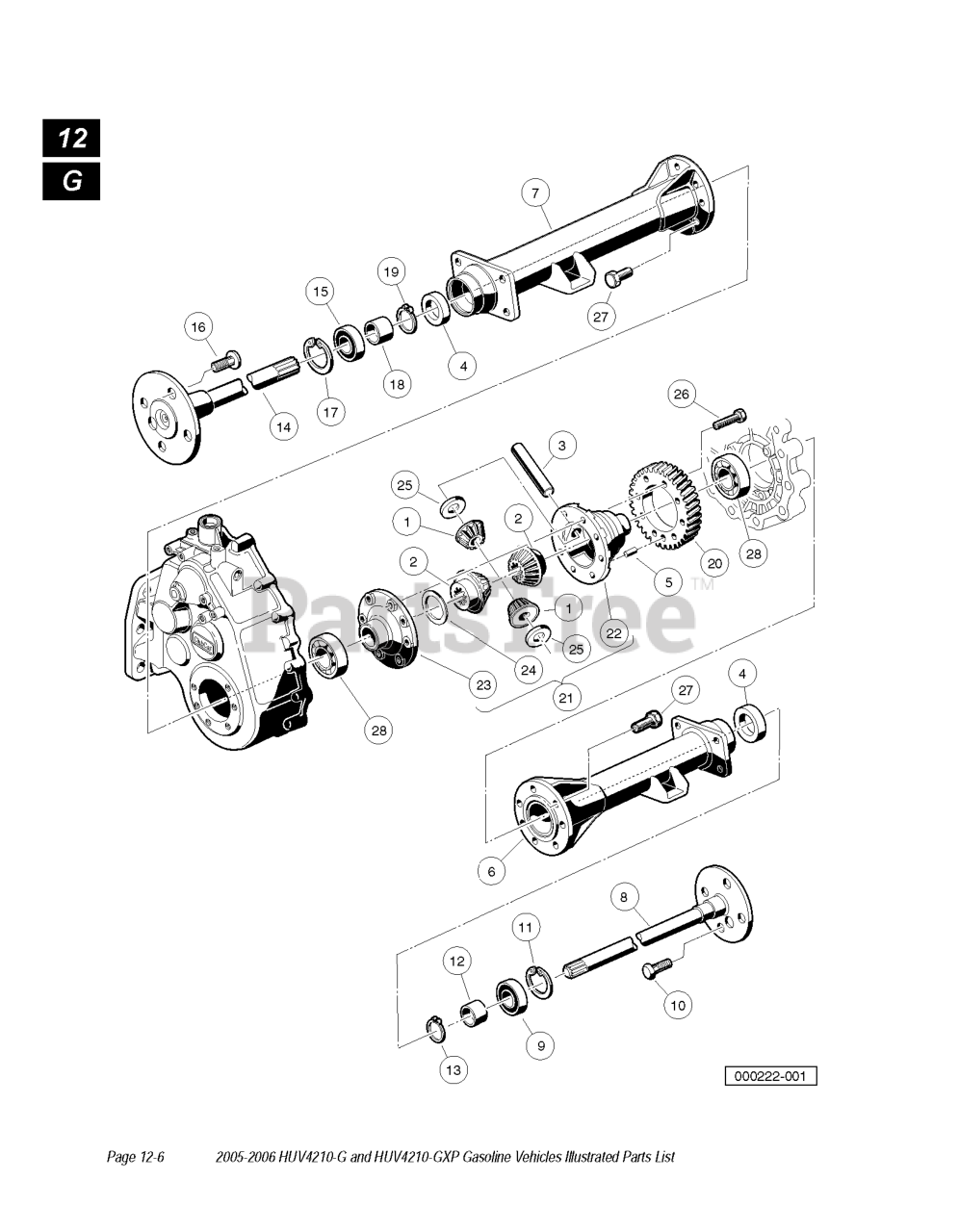

HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) DIFFERENTIAL Parts Diagram

4x2 Utility Vehicle

DIFFERENTIAL Parts Diagram

  • Title

8

Husqvarna 603003211

AXLE ASSEMBLY

$

$

Not available

15

Husqvarna 603000120

OUTER AXLE, TUBE BEARING

$

$

Not available

18

Husqvarna 603003070

BUSHING W/25 MM I.D.

$

$

Not available

26

Husqvarna 603000605

SCREW, M8-1.25 X 35MM HEX HEAD

$

$

Not available

23

Husqvarna 603003059

DIFFERENTIAL GEAR CASE R.H.

Note: RIGHT HAND

$

$

Not available

13

Husqvarna 603003151

RETAINING RING

$

$

Not available

21

Husqvarna 603003222

DIFF. GEAR CASE KIT

$

$

Not available

20

Husqvarna 603003216

GEAR HELICAL

$

$

Not available

12

Husqvarna 603003070

BUSHING W/25 MM I.D.

$

$

Not available

3

Husqvarna 603000187

DIFFERENTIAL PIN

$

$

Not available

9

Husqvarna 603000120

OUTER AXLE, TUBE BEARING

$

$

Not available

27

Husqvarna 603000711

BOLT, M10 X 1.5 X 30MM

$

$

Not available

1

Husqvarna 603000186

DIFFERENTIAL IDLER GEAR

$

$

Not available

6

Husqvarna 603003209

PIPE - COMP.

$

$

Not available

25

Husqvarna 603000188

PLATE

Note: IDLER GEAR

$

$

Not available

2

Husqvarna 603003060

DIFFERENTIAL GEAR

$

$

Not available

7

Husqvarna 603003210

PIPE - COMP.

$

$

Not available

11

Husqvarna 603000190

CIRCLIP TYPE C

$

$

Not available

28

Husqvarna 603000075

INNER AXLE, TUBE BEARING

$

$

Not available

17

Husqvarna 603000190

CIRCLIP TYPE C

$

$

Not available

10

Husqvarna 603000189

LUG STUD

$

$

Not available

24

Husqvarna 603003061

PLATE, THRUST (DIFF. GEAR)

Note: DIFFERENTIAL GEAR

$

$

Not available

22

Husqvarna 603003058

DIFFERENTIAL GEAR CASE L.H.

Note: LEFT HAND

$

$

Not available

4

Husqvarna 603003062

AXLE SHAFT OIL SEAL

$

$

Not available

16

Husqvarna 603000189

LUG STUD

$

$

Not available

19

Husqvarna 603003151

RETAINING RING

$

$

Not available

14

Husqvarna 603003212

AXLE ASSEMBLY

$

$

Not available
