HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) CRANKCASE Parts Diagram

4x2 Utility Vehicle

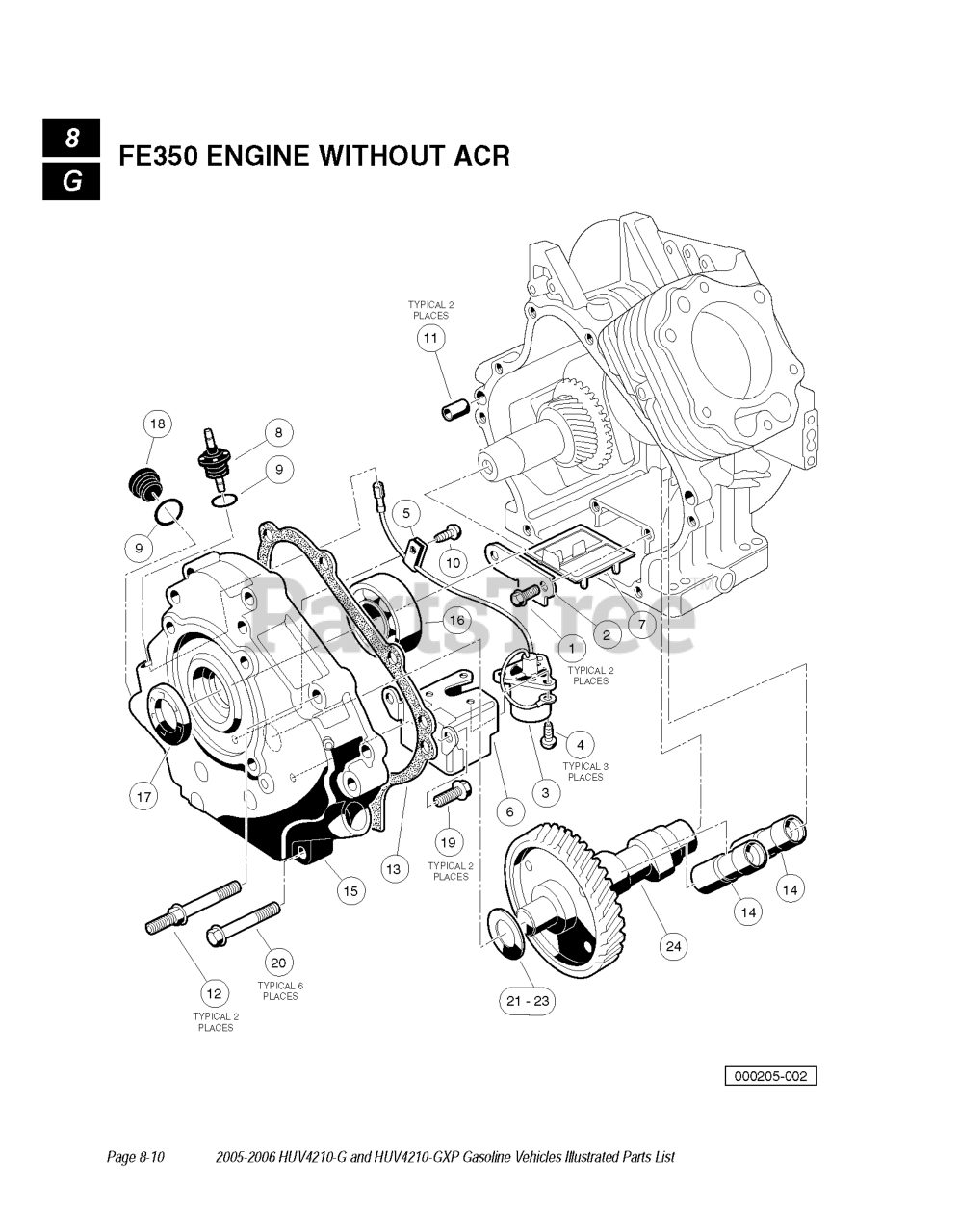

CRANKCASE Parts Diagram

  • Title

7

Husqvarna 603000332

OIL FILTER SCREEN

$

$

Not available

22

Husqvarna 603000477

SHIM - T=0.4

$

$

Not available

5

Husqvarna 603000327

CLAMP

$

$

Not available

18

Husqvarna 603000425

PLUG

$

$

Not available

6

Husqvarna 603003122

BRACKET, SWITCH, OIL LEVEL

$

$

Not available

9

Husqvarna 603000336

O-RING

$

$

Not available

3

Husqvarna 603000321

SENSOR, FE290 OIL LEVEL

$

$

Not available

15

Husqvarna 603003171

COVER CRANKCASE

$

$

Not available

11

Husqvarna 603000347

PIN

$

$

Not available

24

Husqvarna 603003265

CAMSHAFT, FE350 WO/ACR 44T

Note: "FE350 without ACR, 44-Tooth"

$

$

Not available

19

Husqvarna 603003174

BOLT

$

$

Not available

13

Husqvarna 603000397

GASKET - CRANKCASE COVER

$

$

Not available

2

Husqvarna 603000313

OIL FILTER SCREEN PLATE

$

$

Not available

10

Husqvarna 603000339

SCREW

$

$

Not available

21

Husqvarna 603000476

SHIM - T=0.3

$

$

Not available

12

Husqvarna 603000360

BOLT

$

$

Not available

1

Husqvarna 603000307

BOLT, FLANGED

$

$

Not available

23

Husqvarna 603000478

SHIM - T=0.5

$

$

Not available

4

Husqvarna 603000322

SCREW, PAN, CROSS

$

$

Not available

14

Husqvarna 603000401

ADJUSTER, LASH

$

$

Not available

20

Husqvarna 603000428

SCREW, M8-1.25 X 45MM HEX

$

$

Not available

17

Husqvarna 603003172

SEAL - OIL

$

$

Not available

16

Husqvarna 603000418

BEARING, BALL

$

$

Not available

8

Husqvarna 603000334

CONNECTOR - CORD

$

$

Not available
