HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) CARBURETOR DETAILS Parts Diagram

4x2 Utility Vehicle

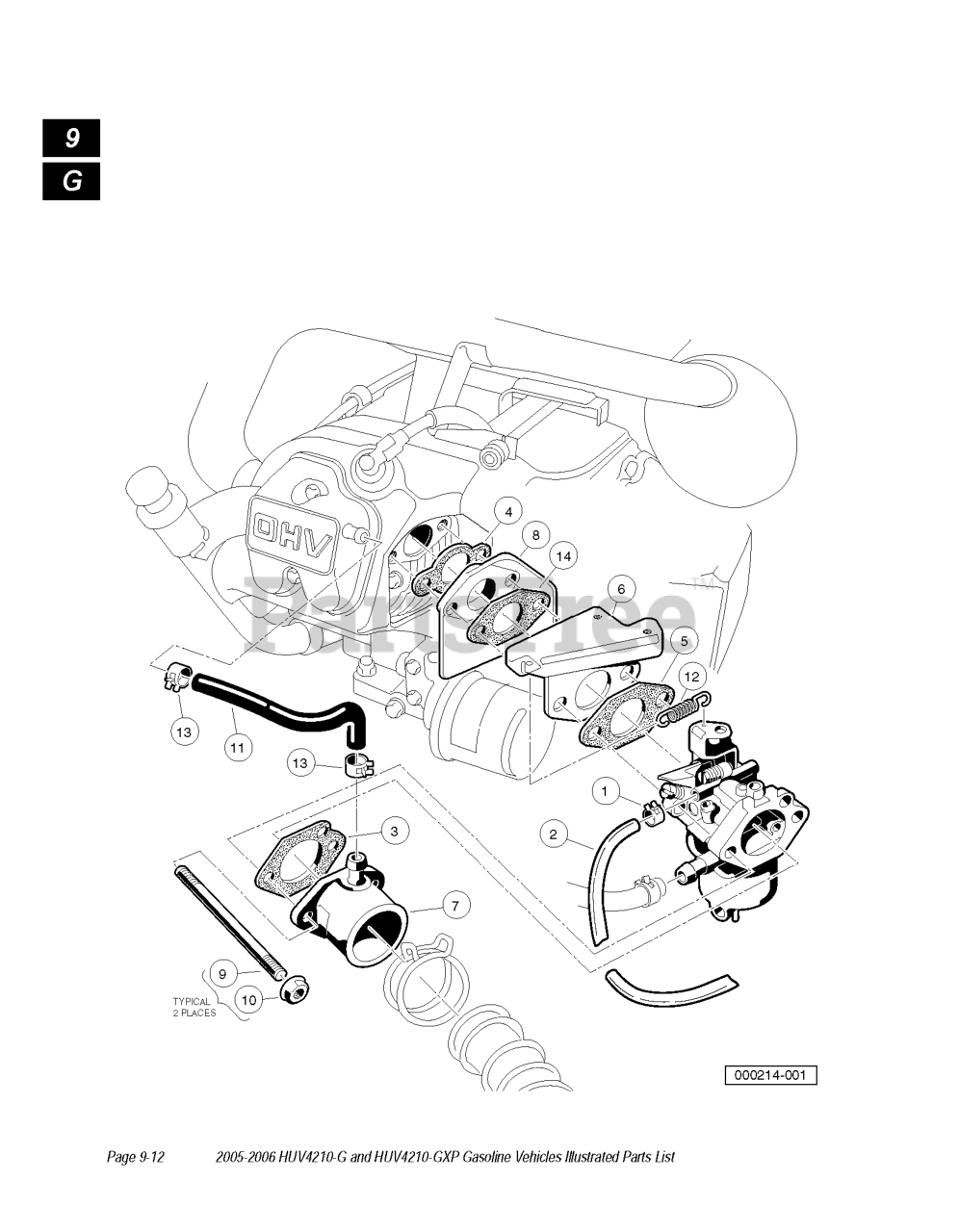

CARBURETOR DETAILS Parts Diagram

  • Title

9

Husqvarna 603000472

STUD, M6-1.00 2-ENDED

$

$

Not available

4

Husqvarna 603000299

GASKET, ENGINE TO INSULATOR

$

$

Not available

1

Husqvarna 603000185

CLAMP

$

$

Not available

3

Husqvarna 603000298

GASKET, CARB TO INTAKE MANIFOL

$

$

Not available

7

Husqvarna 603000317

PIPE, INTAKE MANIFOLD

$

$

Not available

8

Husqvarna 603000470

INSULATOR, CARBURETOR

$

$

Not available

5

Husqvarna 603000300

GASKET, SPRG BRKT TO CARB OHV

$

$

Not available

14

Husqvarna 603000620

GASKET, INSULATOR TO BRACKET

$

$

Not available

11

Husqvarna 603000352

TUBE, CRANKCASE VENT

$

$

Not available

13

Husqvarna 603000411

CLAMP

$

$

Not available

2

Husqvarna 603000240

FUEL LINE

Note: Available by the foot

$

$

Not available

10

Husqvarna 603000341

NUT

$

$

Not available

12

Husqvarna 603000358

SPRING, THROTTLE RETURN

$

$

Not available

6

Husqvarna 603000302

BRACKET, THROTTLE SPRG RETURN

$

$

Not available
