HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2006-11) FE290 Engine - Crankcase and Crankshaft Parts Diagram

4x2 Utility Vehicle

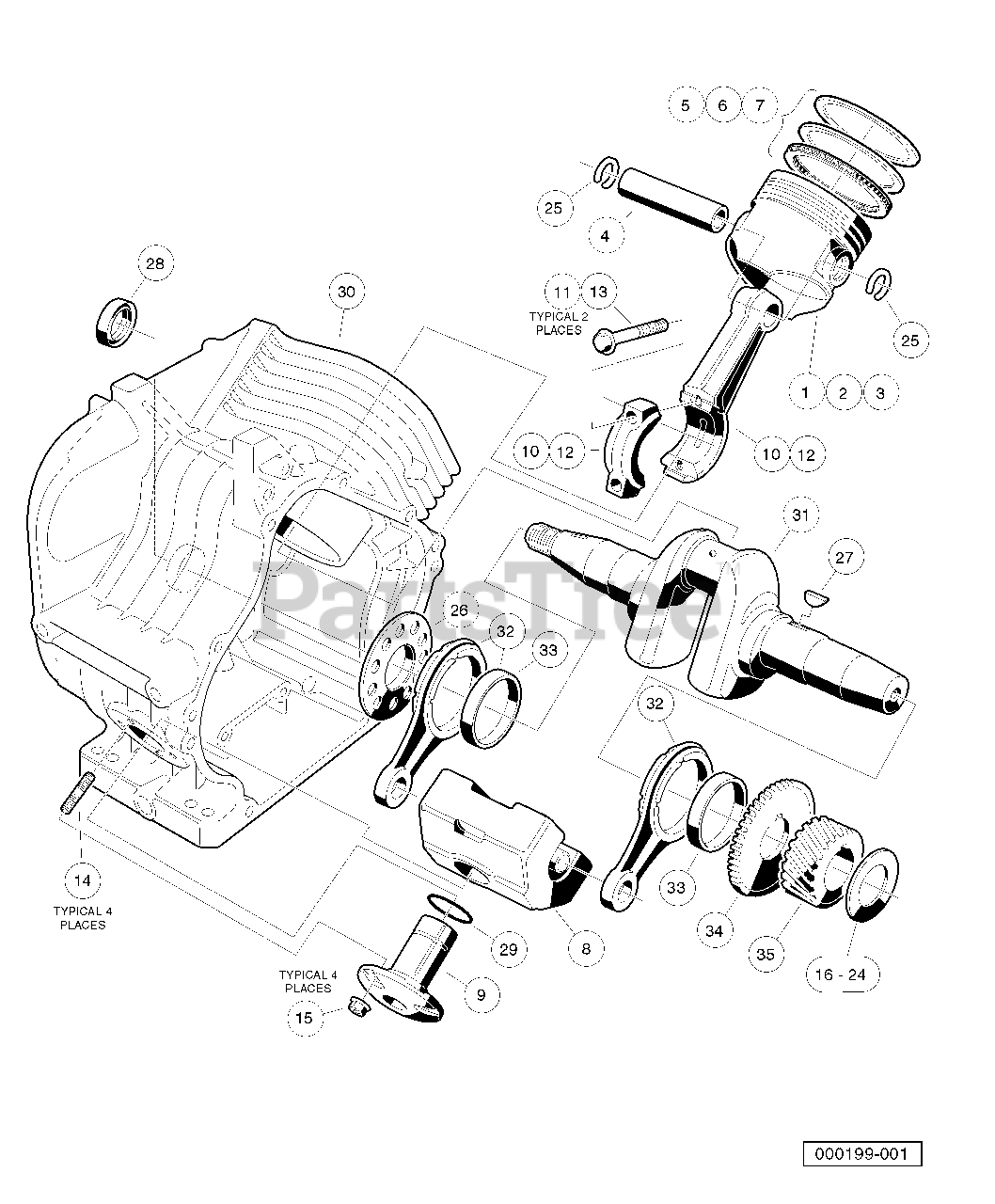

FE290 Engine - Crankcase and Crankshaft Parts Diagram

  • Title

1

Husqvarna 603003107

Piston

$

$

Not available

2

Husqvarna 603003108

Piston, Engine 0.25 mm Over

$

$

Not available

3

Husqvarna 603003109

Piston, Engine 0.50 mm Over

$

$

Not available

4

Husqvarna 603003110

Pin, Piston

$

$

Not available

5

Husqvarna 603003111

Ring Set, Piston

$

$

Not available

6

Husqvarna 603003112

Ring Set, Piston 0.25 mm Over

$

$

Not available

7

Husqvarna 603003113

Ring Set, Piston 0.50 mm Over

$

$

Not available

8

Husqvarna 603003114

Weight, Counterbalance

$

$

Not available

9

Husqvarna 603000312

Shaft, Guide, Counterbalance

$

$

Not available

10

Husqvarna 603003116

Rod Assembly

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603003121

Bolt

$

$

Not available

12

Husqvarna 603003117

Rod Assembly, Connecting 0.50 mm Under

Note: (includes item 13)

$

$

Not available

13

Husqvarna 603003121

Bolt

$

$

Not available

14

Husqvarna 603000338

Stud, 6x14

$

$

Not available

15

Husqvarna 603000341

Nut

$

$

Not available

16

Husqvarna 603003136

Shim, Crankshaft T=1.13

$

$

Not available

17

Husqvarna 603003137

Shim, Crankshaft T=1.18

$

$

Not available

18

Husqvarna 603003138

Shim, Crankshaft T=1.23

$

$

Not available

19

Husqvarna 603003139

Shim, Crankshaft T=1.28

$

$

Not available

20

Husqvarna 603003140

Shim, Crankshaft T=1.33

$

$

Not available

21

Husqvarna 603003141

Shim, Crankshaft T=1.38

$

$

Not available

22

Husqvarna 603003142

Shim, Crankshaft T=1.43

$

$

Not available

23

Husqvarna 603003143

Shim, Crankshaft T=1.48

$

$

Not available

24

Husqvarna 603003144

Shim, Crankshaft T=1.53

$

$

Not available

25

Husqvarna 603003145

Ring, Snap

$

$

Not available

26

Husqvarna 603003146

Spacer

$

$

Not available

27

Husqvarna 603000345

Key

$

$

Not available

28

Husqvarna 603003149

Seal, Oil

$

$

Not available

29

Husqvarna 603000351

O-Ring

$

$

Not available

30

Husqvarna 603003225

Crankcase Complete, FE290

Note: (cw)

$

$

Not available

31

Husqvarna 603003232

Crankshaft, FE290 Left-Hand Thread

Note: (includes items 32 through 35)

$

$

Not available

32

Husqvarna 603003123

Rod

Note: (includes item 33)

$

$

Not available

33

Husqvarna 603003150

Bearing, Plane

$

$

Not available

34

Husqvarna 603003130

Gear, Spur

$

$

Not available

35

Husqvarna 603003131

Gear, Helical

$

$

Not available
