HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2006-11) Cargo Bed Parts Diagram

4x2 Utility Vehicle

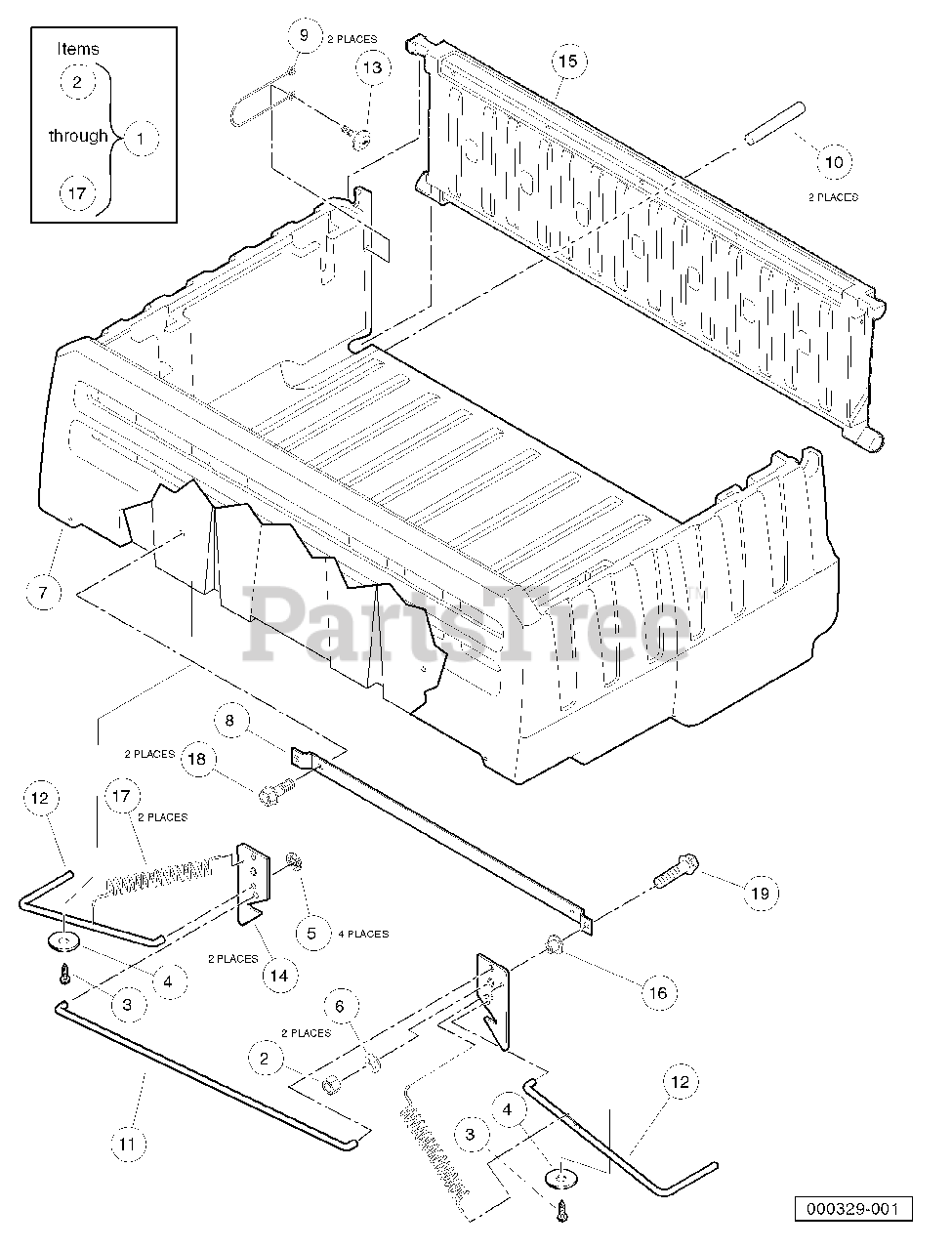

Cargo Bed Parts Diagram

  • Title

1

Husqvarna 603003644

Assembly, Bed
(Superseded to 603003274)

Note: (includes items 2 through 19)

$

$

Not available

2

Husqvarna 603000101

Locknut, 3/8-16 Dimpled

$

$

Not available

3

Husqvarna 603000110

Screw, Hex Washer Head 1/4-14 X .75

$

$

Not available

4

Husqvarna 603003045

Washer, 5/16 Type B Flat

$

$

Not available

5

Husqvarna 603003066

Pushnut, 3/8

$

$

Not available

6

Husqvarna 603002160

Washer, 3/8 Flat Type A

$

$

Currently unavailable

7

Husqvarna 603002294

Bed

$

$

Currently unavailable

8

Husqvarna 603002295

Support, Latch Link

$

$

Currently unavailable

9

Husqvarna 603002296

Lanyard, Tailgate

$

$

Not available

10

Husqvarna 603002297

Pin, Support

$

$

Currently unavailable

11

Husqvarna 603002298

Rod, Long Link

$

$

Currently unavailable

12

Husqvarna 603002299

Rod, Bed Lift, Short Bent

$

$

Currently unavailable

13

Husqvarna 603002300

Bolt Lanyard

$

$

Not available

14

Husqvarna 603002301

Catch, Tilt Bed

$

$

Currently unavailable

15

Husqvarna 603002319

Tailgate, Husqvarna
(Superseded to 531308266)

$

$

Not available

16

Husqvarna 603002335

Bearing, Bronze, 1/2x9/32

$

$

Currently unavailable

17

Husqvarna 603004375

Spring, Tilt Latch 3.4 Lb/in

$

$

Currently unavailable

18

Husqvarna 603000052

Screw, 1/4-20 X 1.0 Hex-Head Cap

$

$

Not available

19

Husqvarna 603000053

Screw, 3/8-16 X 1.00 Hex-Head Cap

$

$

Not available
