HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2006-11) Brake Pedal Assembly - Vehicles with Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle

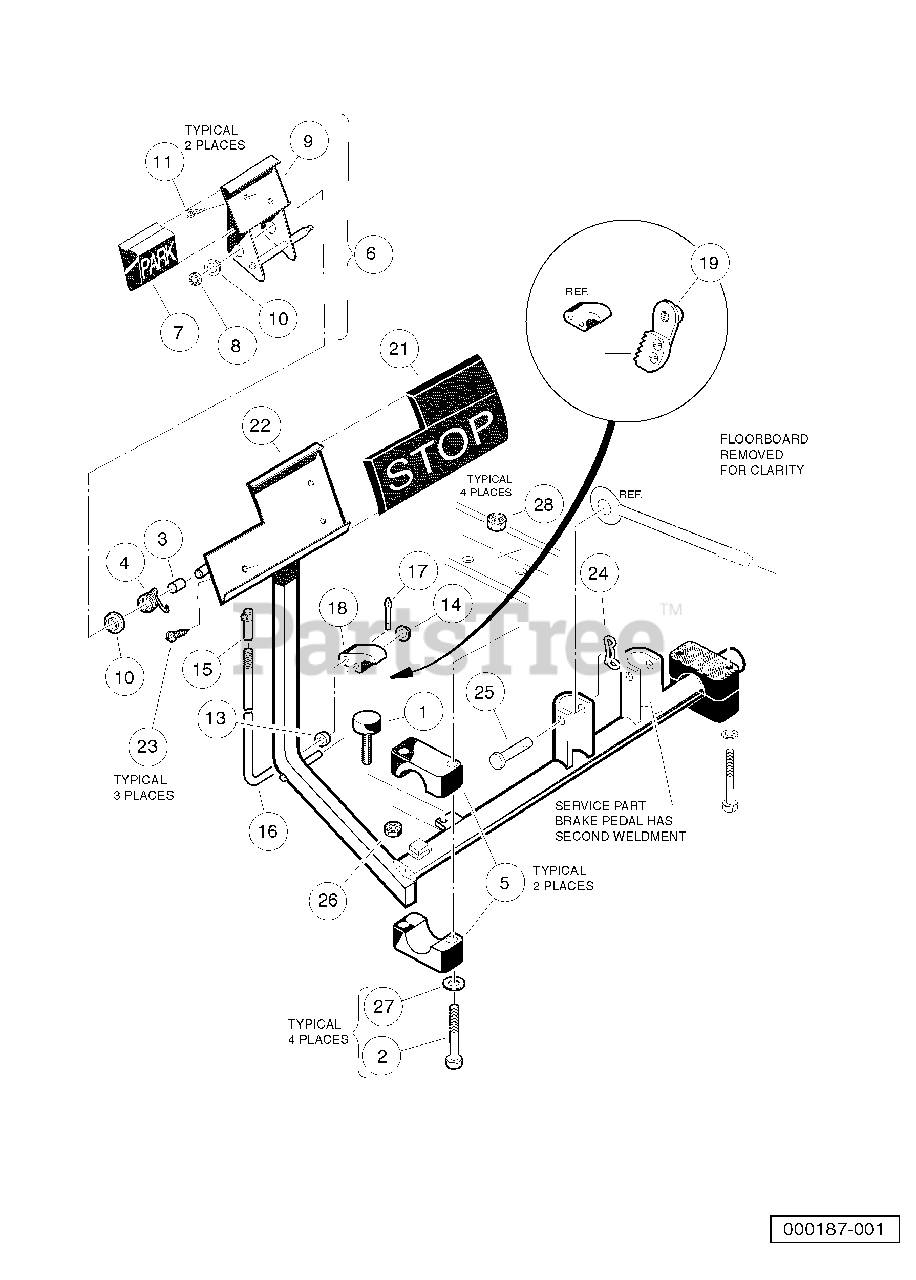

Brake Pedal Assembly - Vehicles with Two-Wheel Brakes Parts Diagram

  • Title
1

Husqvarna 603000113

Bumper, Rubber

$

$

Not available

2

Husqvarna 603000115

Screw, 5/16-18 X 2.50 Hex Cap

$

$

Not available

3

Husqvarna 603003040

Hill Brake Spacer

$

$

Not available

4

Husqvarna 603003042

Spring, Hill Brake Torsion

$

$

Not available

5

Husqvarna 603000121

Package, Brake Mounting Block

$

$

Not available

6

Husqvarna 603003043

Kit, Hill Brake Pedal

Note: (includes items 7 through 11)

$

$

Not available

7

Husqvarna 603003065

Pad, Hill Brake

$

$

Not available

8

Husqvarna 603003066

Pushnut, 3/8

$

$

Not available

9

Hill Brake Weld Assembly

$

$

Not available

10

Husqvarna 603003302

Bushing, Nylon

$

$

Not available

11

Husqvarna 603000081

Screw, #10-16 Type AB, Sheet Metal

$

$

Not available

12

Husqvarna 603003046

Kit, Hill Brake Latch

Note: (includes items 13 through 19)

$

$

Not available

13

Husqvarna 603003037

Sleeve, Hill Brake Rod

$

$

Not available

14

Husqvarna 603003039

Pushnut, 3/8

$

$

Not available

15

Husqvarna 603003041

Ball Joint, 1/4-28

$

$

Not available

16

Rod, Hill Brake

$

$

Not available

17

Husqvarna 603003155

Pin, Cotter, 7/64 x 1/2 Stainless-Steel

$

$

Not available

18

Pawl, Hill Brake

$

$

Not available

19

Ratchet Assembly

$

$

Not available

20

Husqvarna 603003200

Brake Pedal Kit

Note: (includes items 21 through 23)

$

$

Not available

21

Husqvarna 603003064

Pad, Brake Pedal

$

$

Not available

22

Weldment, Brake Pedal 4wb Std

$

$

Not available

23

Husqvarna 603000081

Screw, #10-16 Type AB, Sheet Metal

$

$

Not available

24

Husqvarna 603000882

Pin, Bow Tie Locking

$

$

Not available

25

Husqvarna 603002601

Pin, 3/8 X 1-5/16 Clevis

$

$

Not available

26

Husqvarna 603000062

Nut, 1/4-20 Hex

$

$

Not available

27

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

28

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available
