HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Seat Bottom And Armrest Parts Diagram

4x2 Utility Vehicle

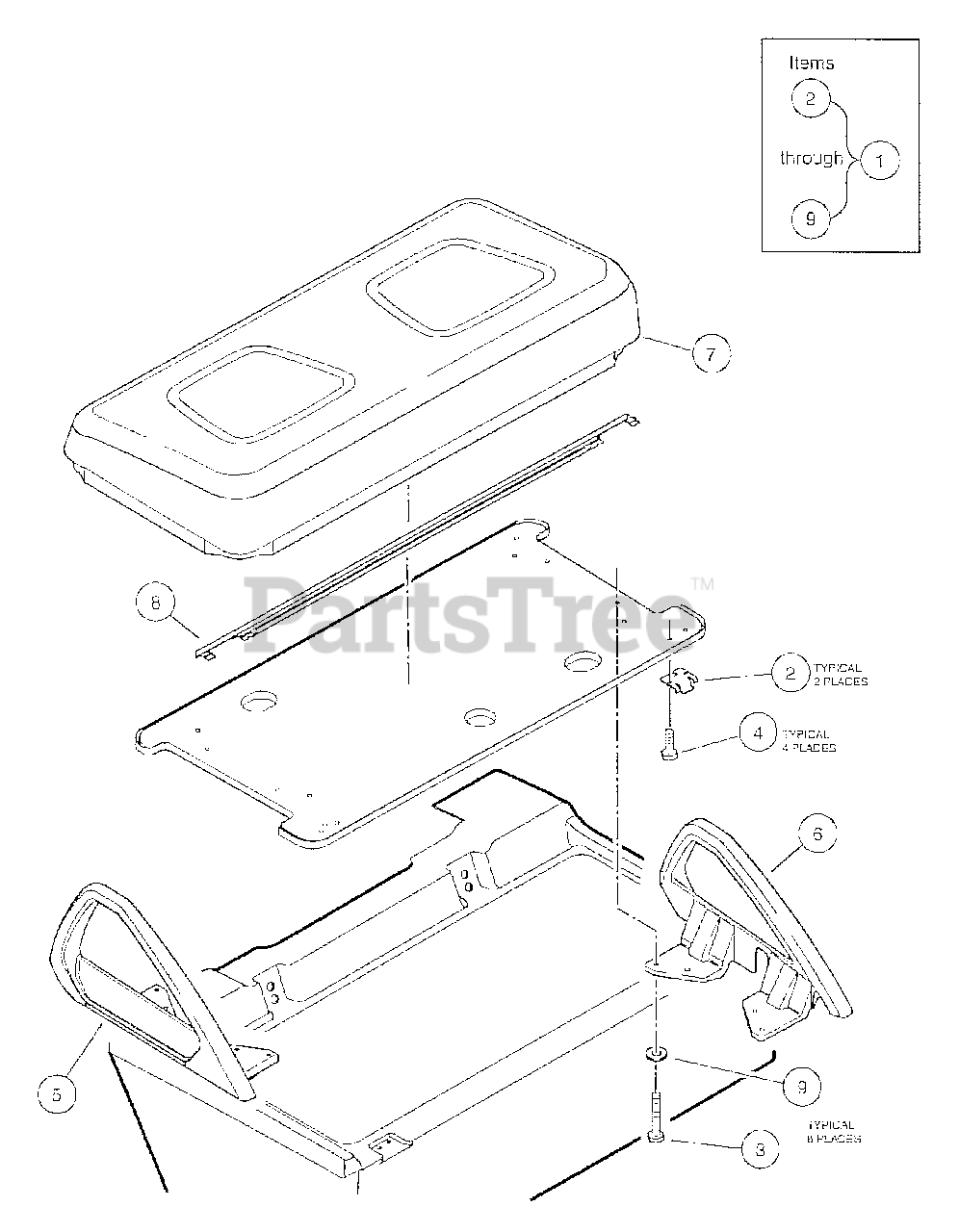

Seat Bottom And Armrest Parts Diagram

  • Title

1

Husqvarna 603002258

Assembly, Seat, Gray

Note: (includes items 2 through 9)

$

$

Not available

2

Husqvarna 603000125

Hinge Plate

$

$

Not available

3

Husqvarna 603002157

Screw, 1/4-20 X 1.50 Hex-Head Cap
(Superseded to 603003153)

$

$

Not available

4

Husqvarna 60300224B

Screw, 1/4-20 X 0.75 Hex-Head

$

$

Currently unavailable

5

Husqvarna 603002255

Armrest, Passenger (right)
(Superseded to 603003247)

$

$

Not available

6

Husqvarna 603002256

Armrest, Driver (left)
(Superseded to 603003248)

$

$

Not available

7

Husqvarna 603002259

Vinyl Cover, Gray

$

$

Not available

8

Husqvarna 603002260

Gasket, Seat
(Superseded to 603003250)

$22.99

$

In Stock, only 1 left!

0

9

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available
