HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Rear Body And Fender - Gasoline Vehicle Parts Diagram

4x2 Utility Vehicle

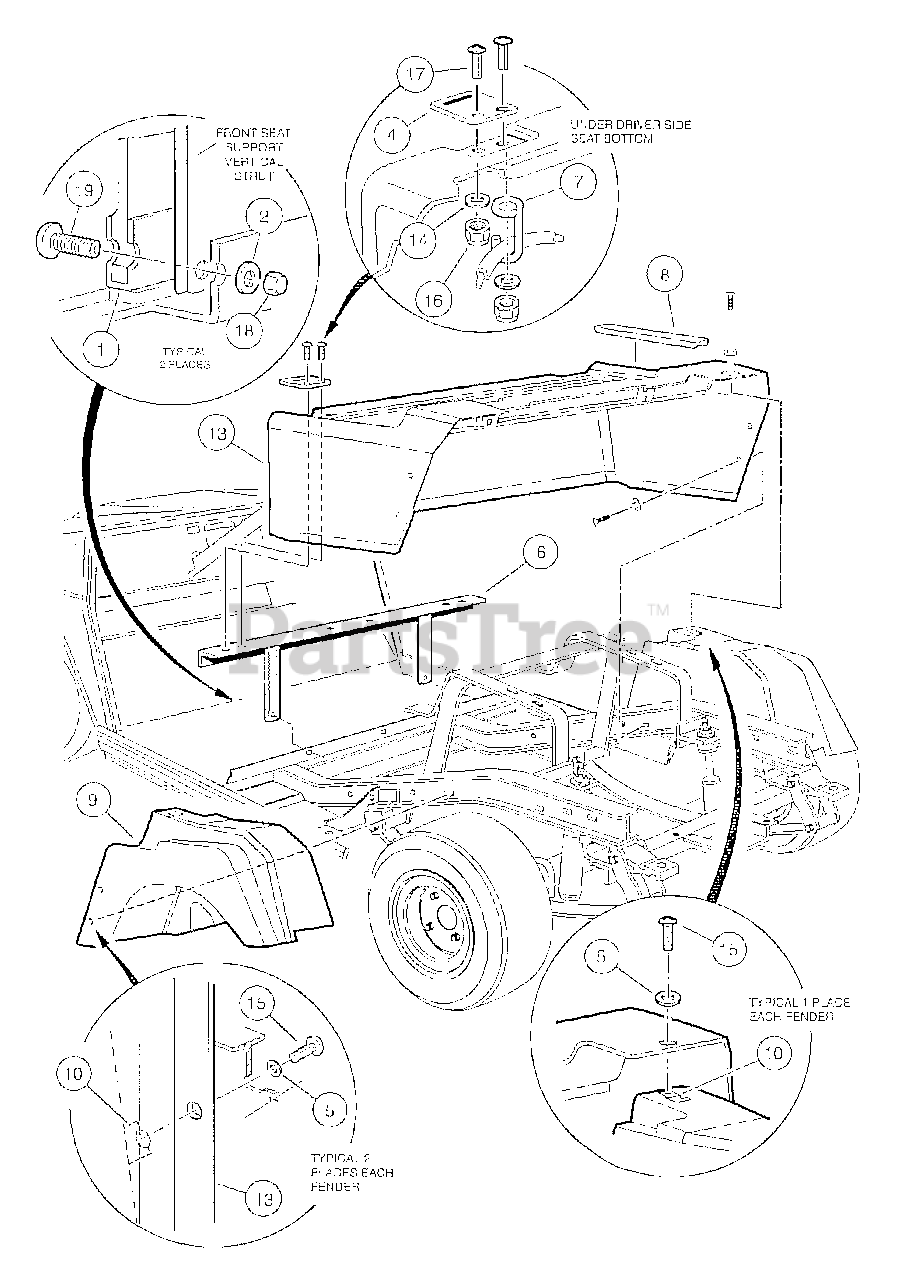

Rear Body And Fender - Gasoline Vehicle Parts Diagram

  • Title

1

Husqvarna 603002033

Body Kick Plate
(Superseded to 603003629)

$

$

Not available

2

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

3

Husqvarna 603002317

Body Assembly

Note: (includes items 4 through 17)

$

$

Not available

4

Husqvarna 603000139

Body, Hinge Plate

$

$

Not available

5

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

6

Husqvarna 603002161

Body Support Front
(Superseded to 603003156)

$

$

Not available

7

Husqvarna 603002201

Cable Retainer

$

$

Currently unavailable

8

Husqvarna 603002263

Wear Pad
(Superseded to 603003252)

$

$

Not available

9

Husqvarna 603002291

Fender, Driver Side

Note: (includes item 10)

$

$

Not available

10

Husqvarna 603002158

U-Nut, 1/4-20
(Superseded to 603003154)

$

$

Not available

11

Husqvarna 603002292

Fender, Passenger Side

Note: (includes item 12)

$

$

Not available

12

Husqvarna 603002158

U-Nut, 1/4-20
(Superseded to 603003154)

$

$

Not available

13

Husqvarna 603002308

Body, Rear, Gas
(Superseded to 603002317)

$

$

Not available

14

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

15

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

16

Husqvarna 603000089

Locknut, 114-20 Nylon Insert

$

$

Not available

17

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available

18

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

19

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available
