HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Maintenance And Service Tools, Continued (Part 1) Parts Diagram

4x2 Utility Vehicle

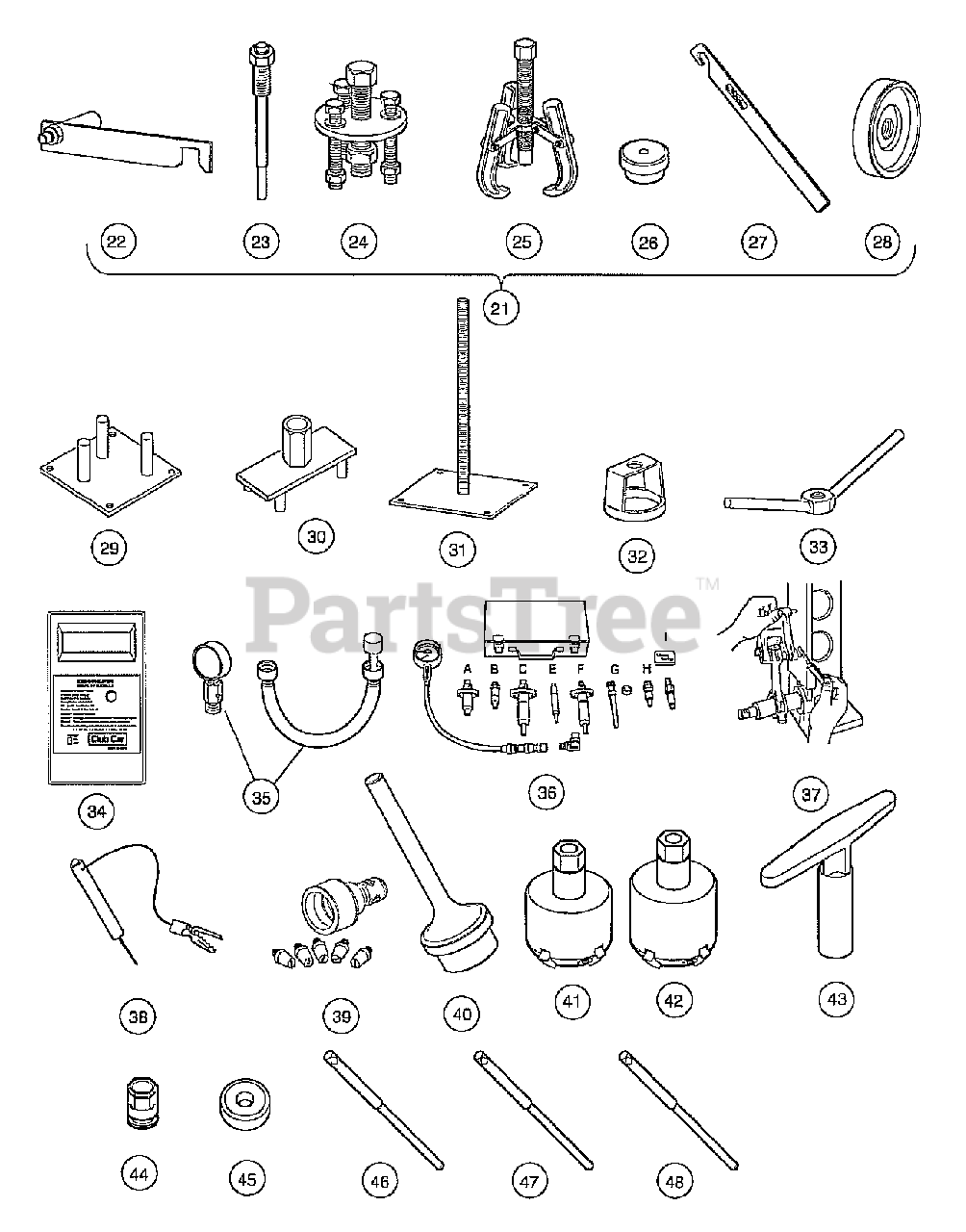

Maintenance And Service Tools, Continued (Part 1) Parts Diagram

  • Title

21

Husqvarna 603001850

Clutch Tool Kit

Note: (includes items 22 - 28)

$

$

Not available

22

Clutch Alignment Tool

Note: Not used.

$

$

Not available

23

Husqvarna 603001852

Drive Clutch Puller

Note: (for Kawasaki engines only)

$

$

Not available

24

Husqvarna 603001853

Drive Clutch Hub Puller

Note: (for Kawasaki engines only)

$

$

Not available

25

Husqvarna 603001854

Driven Clutch Cam Puller

Note: (for Kawasaki engines only)

$

$

Not available

26

Husqvarna 603001855

Driven Clutch Puller Plug

Note: (for Kawasaki engines only)

$

$

Not available

27

Husqvarna 603001856

Drive Clutch Holder Tool Assembly

Note: (for Kawasaki engines only)

$

$

Not available

28

Husqvarna 603001857

Press Weldment

Note: (for Kawasaki engines only)

$

$

Not available

29

Husqvarna 603001858

Clutch, Drive, Fixed Sheave Tool

Note: (for HUV 4420 vehicles)

$

$

Not available

30

Husqvarna 603001859

Clutch, Drive, Spider Removal Tool

Note: (for HUV 4420 vehicles)

$

$

Not available

31

Husqvarna 603001860

Clutch, Driven, Spring Compression Base

Note: (for use with items 32 and 33) (for HUV4420 vehicles)

$

$

Not available

32

Husqvarna 603001861

Clutch, Driven, Spring Compression Collar

Note: (for use with items 31 and 33) (for HUV 4420 vehicles)

$

$

Not available

33

Husqvarna 603001862

Clutch, Driven, Spring Compression Nut

Note: (for use with items 31 and 32) (for HUV 4420 vehicles)

$

$

Not available

34

Communication Display Module

Note: Not used.

$

$

Not available

35

Husqvarna 603001864

Compression Gauge and Adapter

$

$

Not available

36

Compression Tester

Note: Not used; (for Kubota D722 Diesel Engines)

$

$

Not available

37

Husqvarna 603001866

Connecting Rod Alignment Tool

Note: (for Kubota D722 Diesel Engines)

$

$

Currently unavailable

38

Husqvarna 603001867

Continuity Tester

$

$

Not available

39

Crank Sleeve Setter

Note: Not used; (for Kubota D722 Diesel Engines)

$

$

Not available

40

Crankshaft Bearing Replacement Tool

Note: Not used; (for Kubota D722 Diesel Engines)

$

$

Not available

41

Husqvarna 603002353

Cutter, Valve Seat, #122

$

$

Currently unavailable

42

Husqvarna 603002354

Cutter, Valve Seat #115

$

$

Currently unavailable

43

Husqvarna 603002355

Wrench, T, #505

$

$

Currently unavailable

44

Husqvarna 603002356

Adapter, T-Wrench

$

$

Currently unavailable

45

Husqvarna 603001875

Cutter, Valve Seat, 60 Degree (requires item 59)

Note: (for Honda GX620 Gasoline Engines)

$

$

Currently unavailable

46

Husqvarna 603002357

Pilot, 6.6 MM

$

$

Currently unavailable

47

Husqvarna 603002358

Pilot, 6.62 MM

$

$

Currently unavailable

48

Husqvarna 603002359

Pilot, 6.65 MM

$

$

Currently unavailable
