HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Front Suspension - Front Hub Assembly - Later Style Parts Diagram

4x2 Utility Vehicle

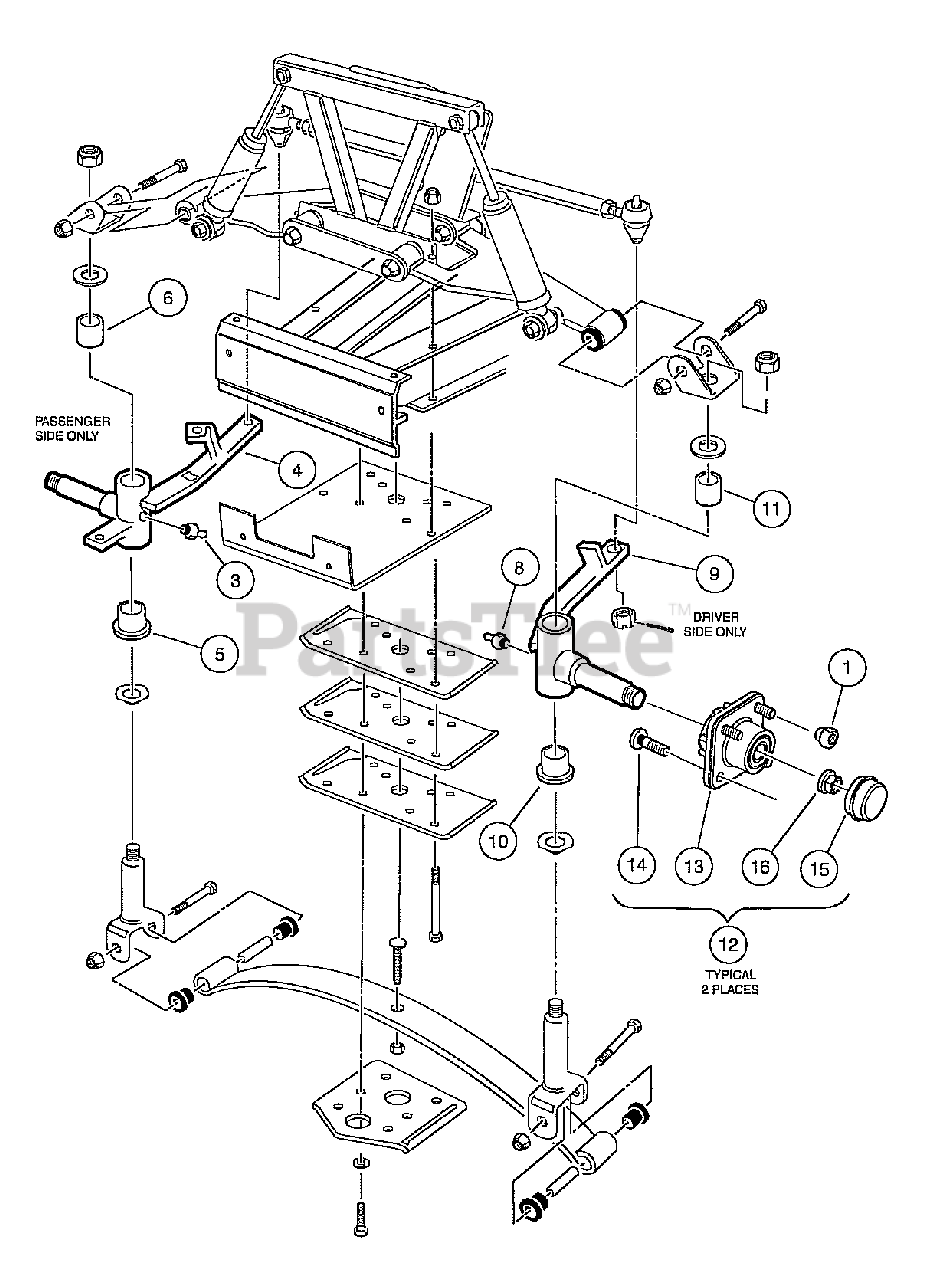

Front Suspension - Front Hub Assembly - Later Style Parts Diagram

  • Title

1

Husqvarna 603000024

Nut, 1/2-20 Lug

$

$

Not available

2

Husqvarna 603002362

Asm, Spindle, RH, EXT

Note: (includes items 3 through 6)

$

$

Not available

3

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 603002364

Subasm, Spindle, RH, EXT

$

$

Currently unavailable

5

Husqvarna 603000070

Bushing, Flanged Bronze

$

$

Not available

6

Husqvarna 603000088

Bushing, Bronze Spindle

$

$

Not available

7

Husqvarna 603002363

Asm, Spindle, LH, EXT

Note: (Includes items 8 through 11)

$

$

Not available

8

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 603002365

Subasm, Spindle, LH, EXT

$

$

Currently unavailable

10

Husqvarna 603000070

Bushing, Flanged Bronze

$

$

Not available

11

Husqvarna 603000088

Bushing, Bronze Spindle

$

$

Not available

12

Husqvarna 603002278

Replacement Kit, Front Hub
(Superseded to 603002269)

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603002269

Front Hub Assembly, Ball Bearing

Note: (includes item 14)

$

$

Not available

14

Husqvarna 603002272

Lug Stud, 1/2-20 UNF, 4037 Stl
(Superseded to 603003260)

$

$

Not available

15

Husqvarna 603002270

Cap, Front Hub
(Superseded to 603003258)

$

$

Not available

16

Husqvarna 603002271

Hex Nut, Locking Flange, M14x2
(Superseded to 603003259)

$

$

Not available
