HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Shrouds And Brackets Parts Diagram

4x2 Utility Vehicle

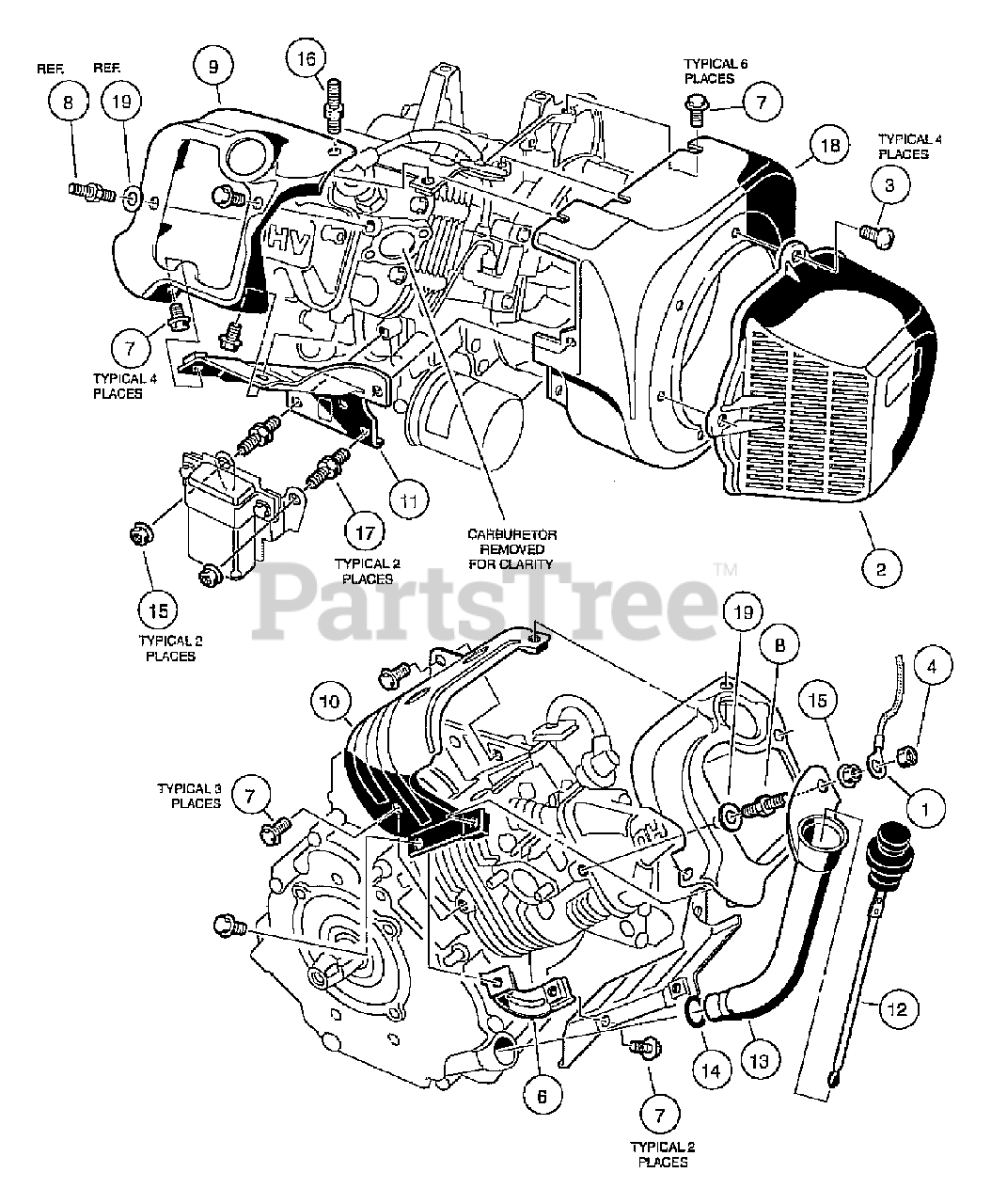

FE290 Engine - Shrouds And Brackets Parts Diagram

  • Title

1

Husqvarna 603000247

Wire Assembly, #10, Uninsulated

$

$

Not available

2

Husqvarna 603000265

Shroud, Fan

$

$

Not available

3

Husqvarna 603000274

Screw, M6-1.00 X 10mm Pan Hd

$

$

Not available

4

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

5

Husqvarna 603002247

Engine, FE290 (cw)
(Superseded to 603003239)

Note: (includes items 6 through 19)

$

$

Not available

6

Husqvarna 603002105

Bracket
(Superseded to 603003101)

$

$

Not available

7

Husqvarna 603000309

Bolt, Flange Head, M6 x 1 x 12 mm

$

$

Not available

8

Husqvarna 603000328

Bolt, Two-Ended

$

$

Not available

9

Husqvarna 603002131

Shroud, Engine, FE290D
(Superseded to 603003127)

$

$

Not available

10

Husqvarna 603002132

Shroud, Engine, FE290D
(Superseded to 603003128)

$

$

Not available

11

Husqvarna 603002133

Shroud, Engine, FE290D
(Superseded to 603003129)

$

$

Not available

12

Husqvarna 603000333

Dipstick

$

$

Not available

13

Husqvarna 603002136

Tube, Oil Filler, FE290D
(Superseded to 603003132)

$

$

Not available

14

Husqvarna 603000337

O-Ring

$

$

Not available

15

Husqvarna 603000341

Nut

$

$

Not available

16

Husqvarna 603002163

Screw, M6-1.00 Stud
(Superseded to 603003158)

$

$

Not available

17

Husqvarna 603002226

Stud, M6-1.00, Two-Ended
(Superseded to 603003220)

$

$

Not available

18

Husqvarna 603002232

Housing, FE290 Fan
(Superseded to 603003226)

$

$

Not available

19

Husqvarna N/A

Washer, 6 mm Flat

$

$

Not available
