HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Crankcase And Camshaft Parts Diagram

4x2 Utility Vehicle

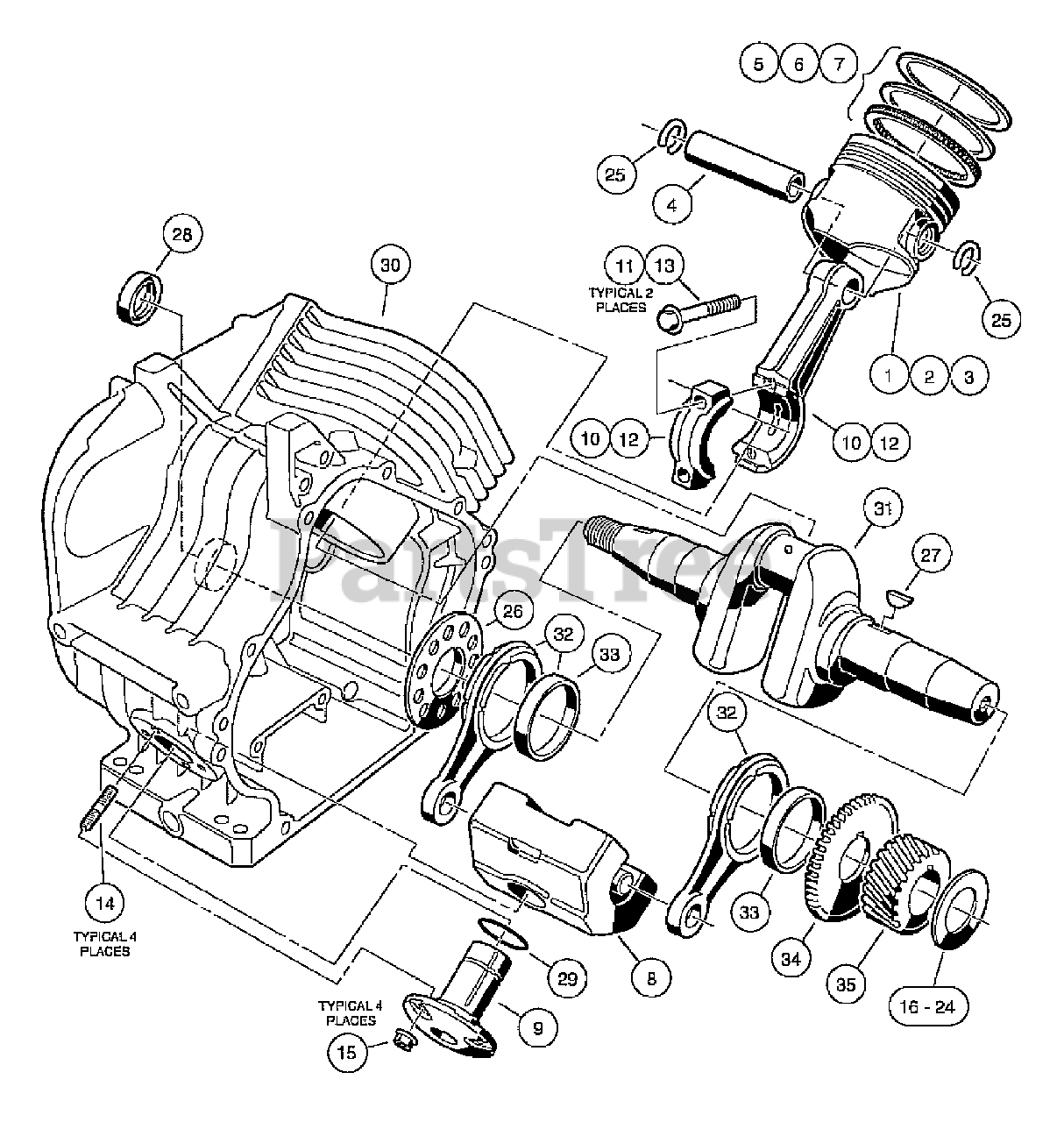

FE290 Engine - Crankcase And Camshaft Parts Diagram

  • Title

1

Husqvarna 603002111

Piston
(Superseded to 603003107)

$

$

Not available

2

Husqvarna 603002112

Piston, Engine 0.25 mm Over
(Superseded to 603003108)

$

$

Not available

3

Husqvarna 603002113

Piston, Engine 0.50 mm Over
(Superseded to 603003109)

$

$

Not available

4

Husqvarna 603002114

Pin, Piston
(Superseded to 603003110)

$

$

Not available

5

Husqvarna 603002115

Ring Set, Piston
(Superseded to 603003111)

$

$

Not available

6

Husqvarna 603002116

Ring Set, Piston 0.25 mm Over
(Superseded to 603003112)

$

$

Not available

7

Husqvarna 603002117

Ring Set, Piston 0.50 mm Over
(Superseded to 603003113)

$

$

Not available

8

Husqvarna 603002118

Weight, Counterbalance
(Superseded to 603003114)

$

$

Not available

9

Husqvarna 603000312

Shaft, Guide, Counterbalance

$

$

Not available

10

Husqvarna 603002120

Rod Assembly
(Superseded to 603003116)

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603002125

Bolt
(Superseded to 603003121)

$

$

Not available

12

Husqvarna 603002121

Rod Assembly, Connecting 0.50 mm Under
(Superseded to 603003117)

Note: (includes item 13)

$

$

Not available

13

Husqvarna 603002125

Bolt
(Superseded to 603003121)

$

$

Not available

14

Husqvarna 603000338

Stud, 6x14

$

$

Not available

15

Husqvarna 603000341

Nut

$

$

Not available

16-24

Husqvarna 603002140

Shim, Crankshaft T=1.13
(Superseded to 603003136)

$

$

Not available

16-24

Husqvarna 603002141

Shim, Crankshaft T=1.18
(Superseded to 603003137)

$

$

Not available

16-24

Husqvarna 603002142

Shim, Crankshaft T=1.23
(Superseded to 603003138)

$

$

Not available

16-24

Husqvarna 603002143

Shim, Crankshaft T=1.28
(Superseded to 603003139)

$

$

Not available

16-24

Husqvarna 603002144

Shim, Crankshaft T=1.33
(Superseded to 603003140)

$

$

Not available

16-24

Husqvarna 603002145

Shim, Crankshaft T=1.3B
(Superseded to 603003141)

$

$

Not available

16-24

Husqvarna 603002146

Shim, Crankshaft T=1.43
(Superseded to 603003142)

$

$

Not available

16-24

Husqvarna 603002147

Shim, Crankshaft T=1.48
(Superseded to 603003143)

$

$

Not available

16-24

Husqvarna 603002148

Shim, Crankshaft T=1.53
(Superseded to 603003144)

$

$

Not available

25

Husqvarna 603002149

Ring, Snap
(Superseded to 603003145)

$

$

Not available

26

Husqvarna 603002150

Spacer
(Superseded to 603003146)

$

$

Not available

27

Husqvarna 603000345

Key

$

$

Not available

28

Husqvarna 603002153

Seal, Oil
(Superseded to 603003149)

$

$

Not available

29

Husqvarna 603000351

O-Ring

$

$

Not available

30

Husqvarna 603002231

Crankcase Complete, FE290 (cw)
(Superseded to 603003225)

$

$

Not available

31

Husqvarna 603002239

Crankshaft, FE290 Left-Hand Thread
(Superseded to 603003232)

Note: (includes items 32 through 35)

$

$

Not available

32

Husqvarna 603002127

Rod
(Superseded to 603003123)

$

$

Not available

33

Husqvarna 603002154

Bearing, Plane
(Superseded to 603003150)

$

$

Not available

34

Husqvarna 603002134

Gear, Spur
(Superseded to 603003130)

$

$

Not available

35

Husqvarna 603002135

Gear, Helical
(Superseded to 603003131)

$

$

Not available
