HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Accelerator Pedal Assembly Parts Diagram

4x2 Utility Vehicle

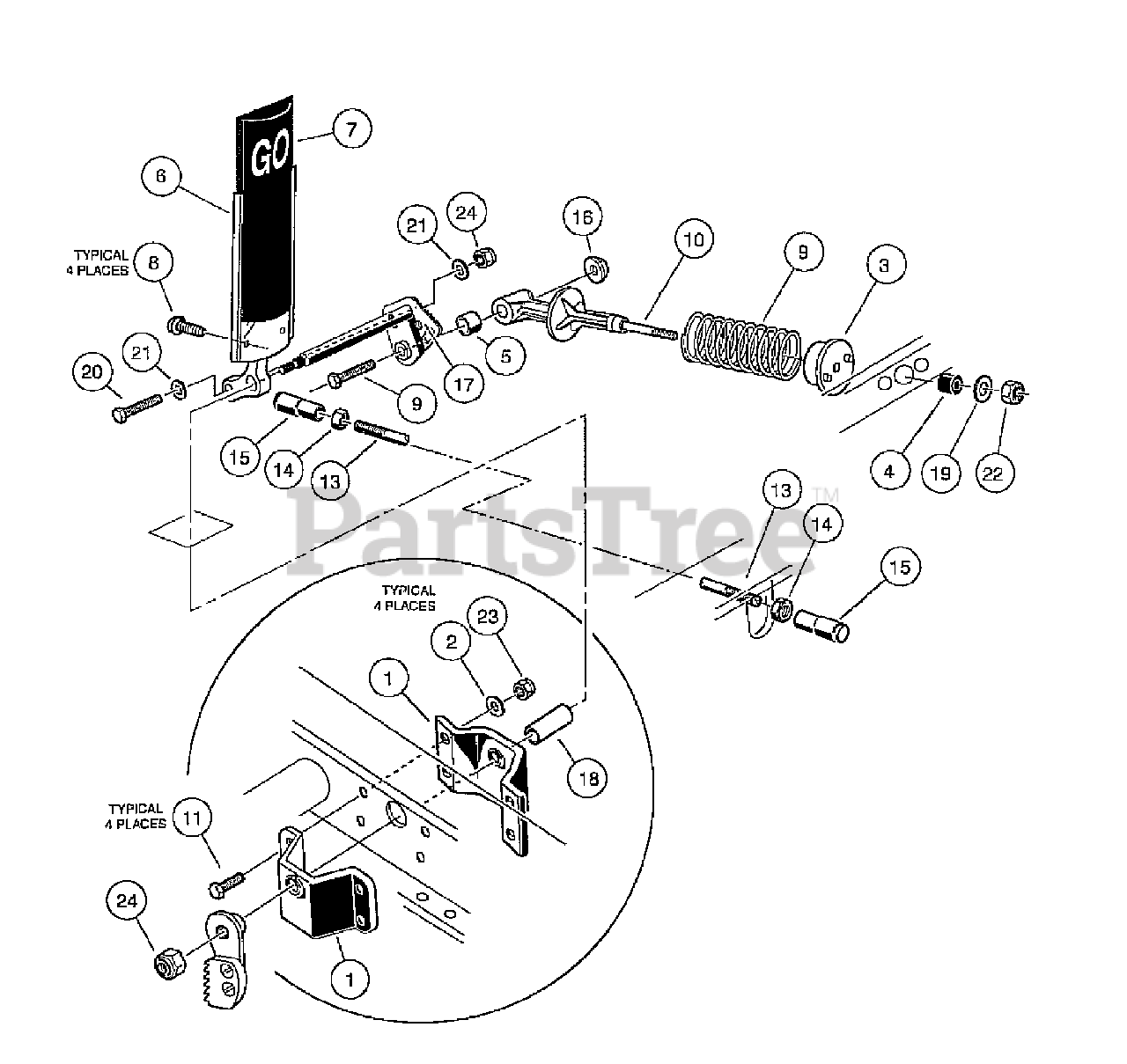

Accelerator Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 603000126

Accelerator Bracket and Bearing Assembly

$

$

Not available

2

Husqvarna 603000194

Washer, 1/4 Flat

$

$

Not available

3

Husqvarna 603000392

Cup, Spring

$

$

Not available

4

Husqvarna 603000393

Bumper, Spring Return

$

$

Not available

5

Husqvarna 603000395

Bearing, Pivot Support

$

$

Not available

6

Husqvarna 603000432

Sub Asm, Accelerator Pedal

Note: (includes items 7 and 8)

$

$

Not available

7

Husqvarna 603000192

Pad, Accelerator Pedal

$

$

Not available

8

Husqvarna 603000081

Screw, #10-16 Type Ab Sht Mtl

$

$

Not available

9

Husqvarna 603000490

Spring, Accelerator Return

$

$

Not available

10

Husqvarna 603000499

Retainer, Spring

$

$

Not available

11

Husqvarna 603000528

Screw, 1/4-20 X 1.125 Hex Cap

$

$

Not available

12

Husqvarna 603002205

Screw, 1/4-20 X 1.500 Flange
(Superseded to 603003199)

$

$

Not available

13

Husqvarna 603002229

Assembly, Accelerator Rod (gasoline vehicle)
(Superseded to 603003223)

Note: (includes items 14 and 15)

$

$

Not available

14

Husqvarna 603000119

Nut, 1/4-28 Hex Jam

$

$

Not available

15

Husqvarna 603000129

Joint, Ball

$

$

Not available

16

Husqvarna 603000617

Locknut, 1/4-28 Hex Flange Nyl
(Superseded to 603000094)

$

$

Not available

17

Husqvarna 603000697

Kit, Accelerator Pivot Rod Assembly

Note: (includes item 18)

$

$

Not available

18

Husqvarna 603002238

Spacer, Accelerator

$

$

Not available

19

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

20

Husqvarna 603000068

Screw, 3/8-16 X 1.50 Hx Hd Cap

$

$

Not available

21

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

22

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

23

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

24

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
