HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2008-04) TRANSMISSION 2 Parts Diagram

4x2 Utility Vehicle

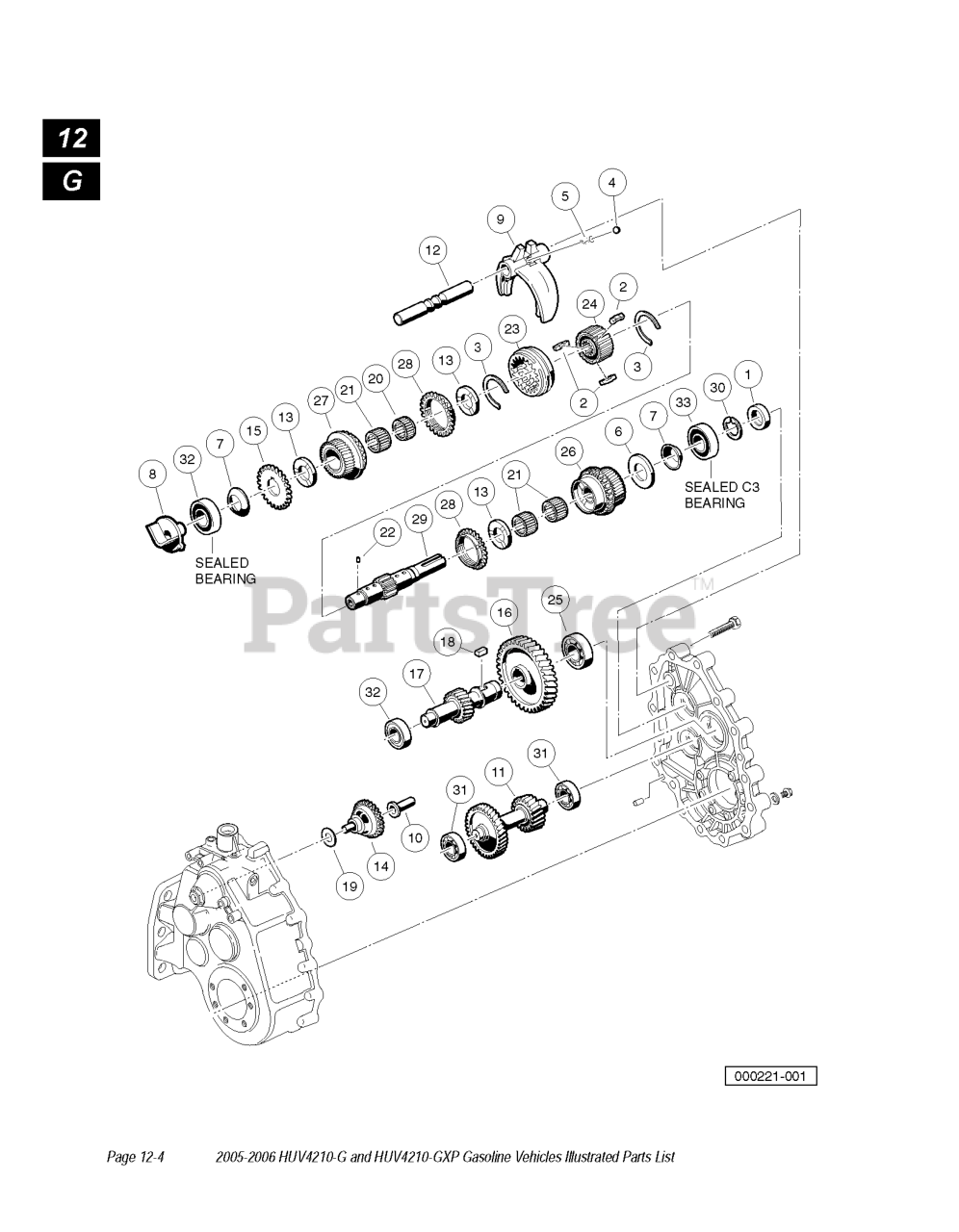

TRANSMISSION 2 Parts Diagram

  • Title
10

Husqvarna 603000564

SLEEVE - GOVERNOR

$

$

Not available

$

$

Not available

13

Husqvarna 603000566

PLATE-THRUST

$

$

Not available

11

Husqvarna 603003213

GEAR - CLUSTER

$

$

Not available

3

Husqvarna 603000153

SYNCHRO SPRING

$

$

Not available

25

Husqvarna 603003234

BEARING, BALL

$

$

Not available

1

$26.99

$

In Stock, only 1 left!

0

27

Husqvarna 603003245

GEAR ASSY, 16 DEG REAR SYNCHRO

Note: 28 TOOTH

$

$

Not available

$

$

Not available

32

Husqvarna 603001802

SEALED BALL BEARING (7336)

$

$

Not available

29

Husqvarna 603001082

SHAFT, TRANS, W/ CIRCLIP

$

$

Not available

17

Husqvarna 603003215

GEAR HELICAL

Note: 17 TOOTH

$

$

Not available

9

Husqvarna 603000560

FORK-SHIFT

$

$

Not available

23

Husqvarna 603000603

SLEEVE, SYNCHRO

$

$

Not available

18

$

$

Not available

22

Husqvarna 603000602

PIN, .116" DIA X .264 DOWEL

$

$

Not available

7

Husqvarna 603000287

SPRING WASHER

$

$

Not available

14

Husqvarna 603000567

GOVERNOR ASSEMBLY

$

$

Not available

5

Husqvarna 603000155

SHIFTER SPRING

$

$

Not available

21

Husqvarna 603000601

NEEDLE BEARING

$

$

Not available

6

Husqvarna 603000286

THRUST WASHER

$

$

Not available

16

Husqvarna 603003214

GEAR HELICAL

Note: 61 TOOTH

$

$

Not available

20

Husqvarna 603000600

BEARING, NEEDLE

$

$

Not available

30

Husqvarna 603001083

CIRCLIP, TRANS INPUT SHAFT

$

$

Not available

15

$

$

Not available

2

Husqvarna 603000152

SYNCHRO INSERT

$

$

Not available

28

Husqvarna 603000623

RING, 16 DEGREE SYNCHRONIZER

$

$

Not available

33

Husqvarna 603001803

SEALED BALL BEARING(101927801)

$

$

Not available

24

Husqvarna 603000604

HUB, SYNCHRO CLUTCH

$

$

Not available

4

Husqvarna 603000154

Shifter Ball

$

$

Not available

31

$

$

Not available

26

Husqvarna 603000622

GEAR ASSY, 16 DEG FRT SYNCHRO

Note: 25 TOOTH

$

$

Not available

12

$

$

Not available
