HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2008-04) STEERING Parts Diagram

4x2 Utility Vehicle

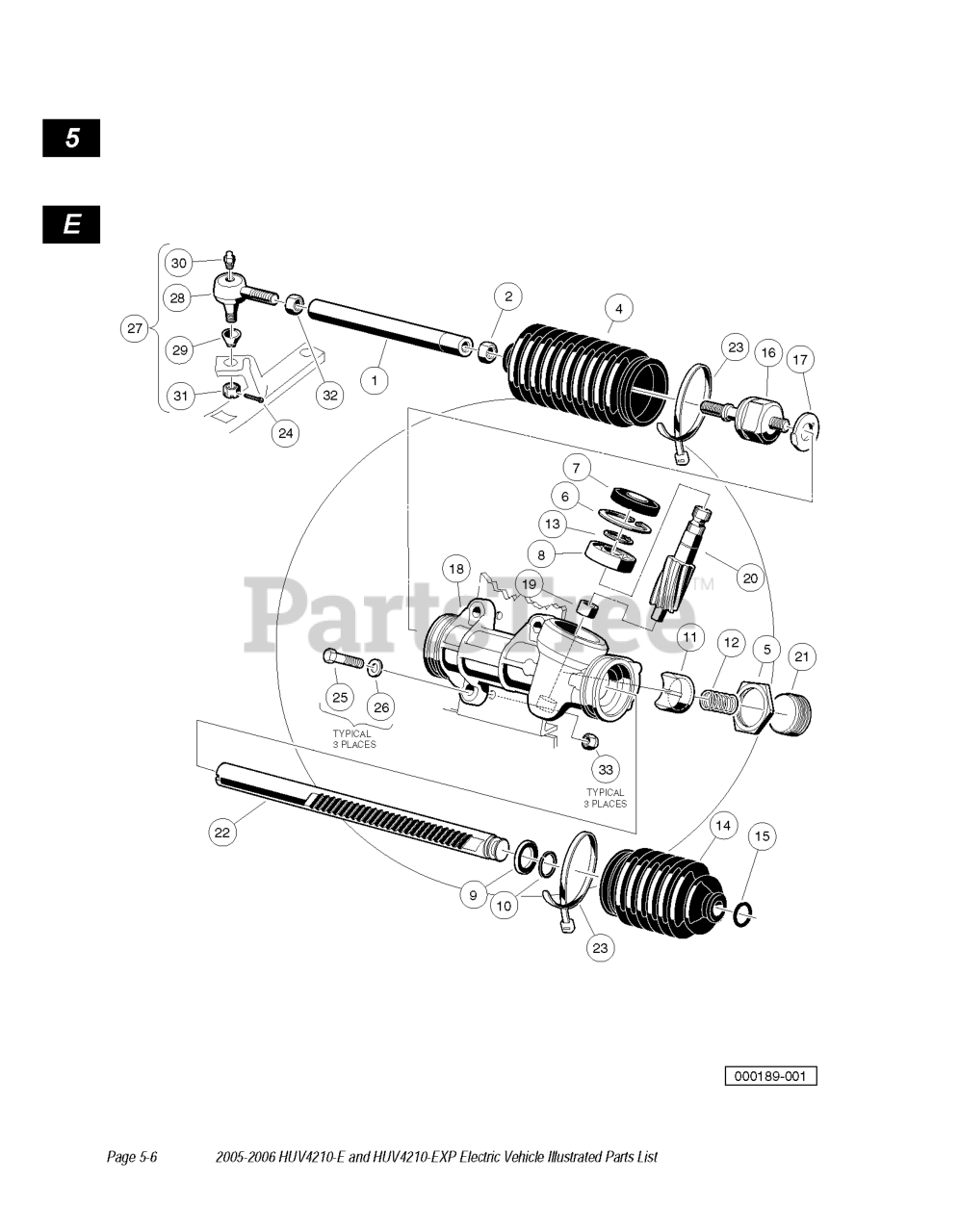

STEERING Parts Diagram

  • Title

32

Husqvarna 603003308

NUT, 1/2-20 HEX

$

$

Not available

5

Husqvarna 603000168

RACK SCREW LOCKNUT

$

$

Not available

6

Husqvarna 603000169

SNAP RING

$

$

Not available

7

Husqvarna 603000170

SEAL, STEERING PINION DUST

$

$

Not available

9

Husqvarna 603003202

STOP WASHER

$

$

Not available

1

Husqvarna 603003054

DRAG LINK RACK & PINION

$

$

Not available

3

Husqvarna 603003201

ASM, STEERING RACK, 3.13

Note: WITHOUT YOKE

$

$

Not available

15

Husqvarna 603003205

DUST SEAL RETAINING RING

$

$

Not available

11

Husqvarna 603000550

SUPPORT YOKE

$

$

Not available

23

Husqvarna 603002963

TIE WRAP, 8" NYLON

$

$

Not available

31

Husqvarna 603003309

NUT, 3/8-24 UNF HEX THICK SLOT

$

$

Not available

14

Husqvarna 603003204

BELLOWS, SHORT

$

$

Not available

4

Husqvarna 603000166

BELLOWS, LONG

$

$

Not available

17

Husqvarna 603003206

WASHER, TAB

$

$

Not available

10

Husqvarna 603003203

STOP RING C - TYPE

$

$

Not available

24

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

30

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 603000068

SCREW, 3/8-16 X 1.5 HX HD CAP

$

$

Not available

8

Husqvarna 603000549

BEARING BALL

$

$

Not available

27

Husqvarna 603002040

BALL JOINT, LH

$

$

Not available

16

Husqvarna 603000553

INNER BALL JOINT ASM

$

$

Not available

26

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

12

Husqvarna 603000551

RACK GUIDE PRESSURE SPRING

$

$

Not available

13

Husqvarna 603000552

C-TYPE STOP RING

$

$

Not available

33

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

2

Husqvarna 603000167

12MM HEX NUT

$

$

Not available

29

Husqvarna 603003047

SEAL, VERTICAL SOCKET DUST

$

$

Not available
