HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2008-04) CRANKSHAFT Parts Diagram

4x2 Utility Vehicle

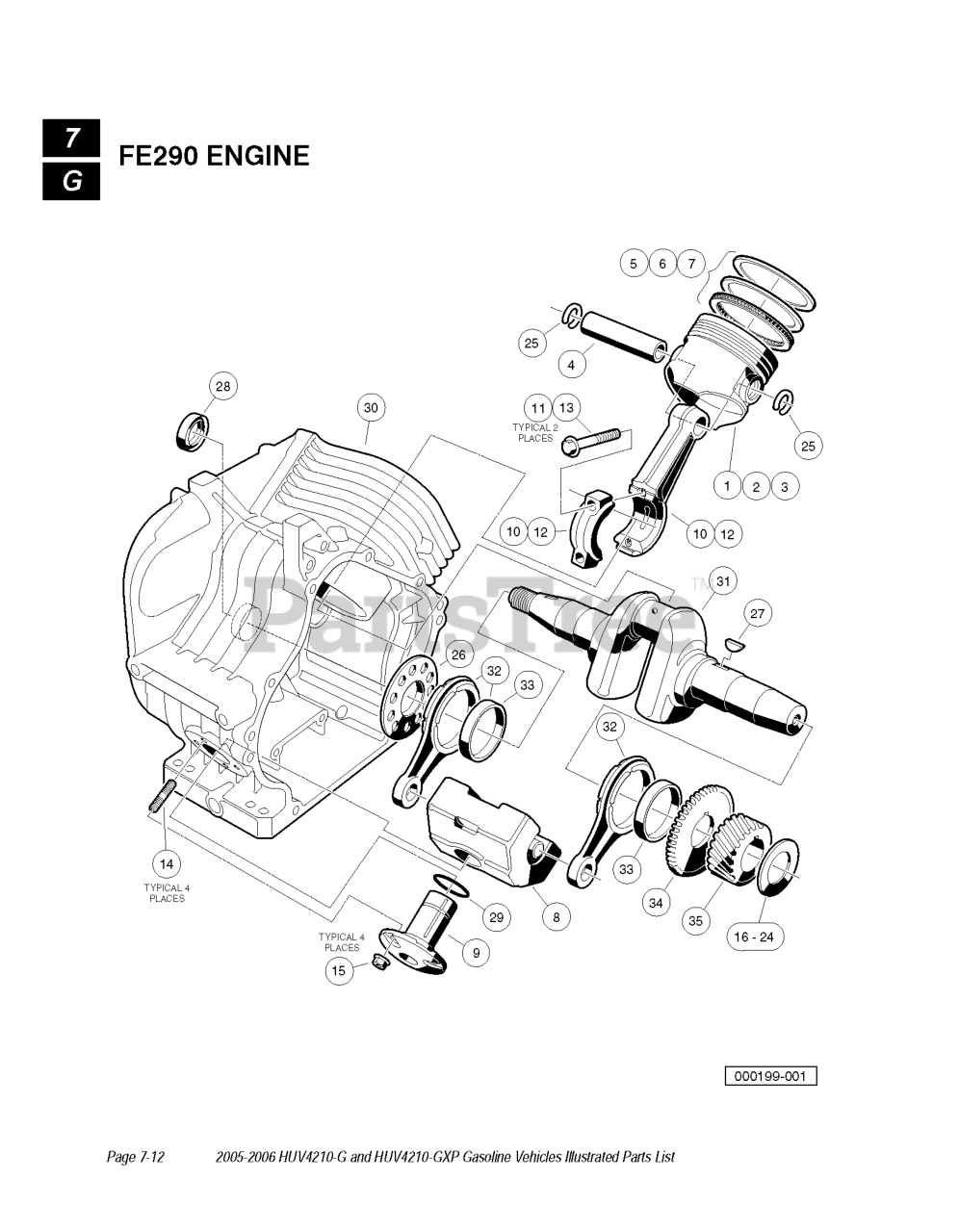

CRANKSHAFT Parts Diagram

  • Title

21

Husqvarna 603003141

SHIM, CRANKSHAFT T=1.38

$

$

Not available

35

Husqvarna 603003131

GEAR, HELICAL

$

$

Not available

18

Husqvarna 603003138

SHIM, CRANKSHAFT T=1.23

$

$

Not available

5

Husqvarna 603003111

RING-SET-PISTON STD

$

$

Not available

33

Husqvarna 603003150

BEARING , PLANE OHV

$

$

Not available

13

Husqvarna 603003121

BOLT

$

$

Not available

34

Husqvarna 603003130

GEAR, SPUR

$

$

Not available

22

Husqvarna 603003142

SHIM, CRANKSHAFT T=1.43

$

$

Not available

26

Husqvarna 603003146

SPACER

$

$

Not available

10

Husqvarna 603003116

ASM, CONNECTING ROD STD

$

$

Not available

30

Husqvarna 603003225

CRANKCASE COMPLETE, FE290 CW

$

$

Not available

27

Husqvarna 603000345

KEY

$

$

Not available

1

Husqvarna 603003107

PISTON, ENGINE STD OHV

$

$

Not available

8

Husqvarna 603003114

WEIGHT, COUNTER - BALANCE

$

$

Not available

16

Husqvarna 603003136

SHIM, CRANKSHAFT T=1.13

$

$

Not available

3

Husqvarna 603003109

PISTON, ENGINE .50MM OVER

$

$

Not available

12

Husqvarna 603003117

ASM, CONNECTING ROD 0.5MM U/S

$

$

Not available

25

Husqvarna 603003145

RING, SNAP

$

$

Not available

32

Husqvarna 603003123

ROD

$

$

Not available

23

Husqvarna 603003143

SHIM, CRANKSHAFT T=1.48

$

$

Not available

11

Husqvarna 603003121

BOLT

$

$

Not available

7

Husqvarna 603003113

RING-SET-PISTON .50MM OVER

$

$

Not available

17

Husqvarna 603003137

SHIM, CRANKSHAFT T=1.18

$

$

Not available

4

Husqvarna 603003110

PIN - PISTON

$

$

Not available

9

Husqvarna 603000312

SHAFT, GUIDE, COUNTER-BALANCE

$

$

Not available

14

Husqvarna 603000338

STUD, 6X14

$

$

Not available

31

Husqvarna 603003232

CRANKSHAFT, FE290 LH THREAD

$

$

Not available

20

Husqvarna 603003140

SHIM, CRANKSHAFT T=1.33

$

$

Not available

6

Husqvarna 603003112

RING-SET-PISTON .25MM OVER

$

$

Not available

15

Husqvarna 603000341

NUT

$

$

Not available

29

Husqvarna 603000351

O-RING

$

$

Not available

28

Husqvarna 603003149

SEAL, OIL

$

$

Not available

24

Husqvarna 603003144

SHIM, CRANKSHAFT T=1.53 OHV

$

$

Not available

19

Husqvarna 603003139

SHIM, CRANKSHAFT T=1.28

$

$

Not available

2

Husqvarna 603003108

PISTON, ENGINE .25MM OVER

$

$

Not available
