HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2008-04) CARBURETOR Parts Diagram

4x2 Utility Vehicle

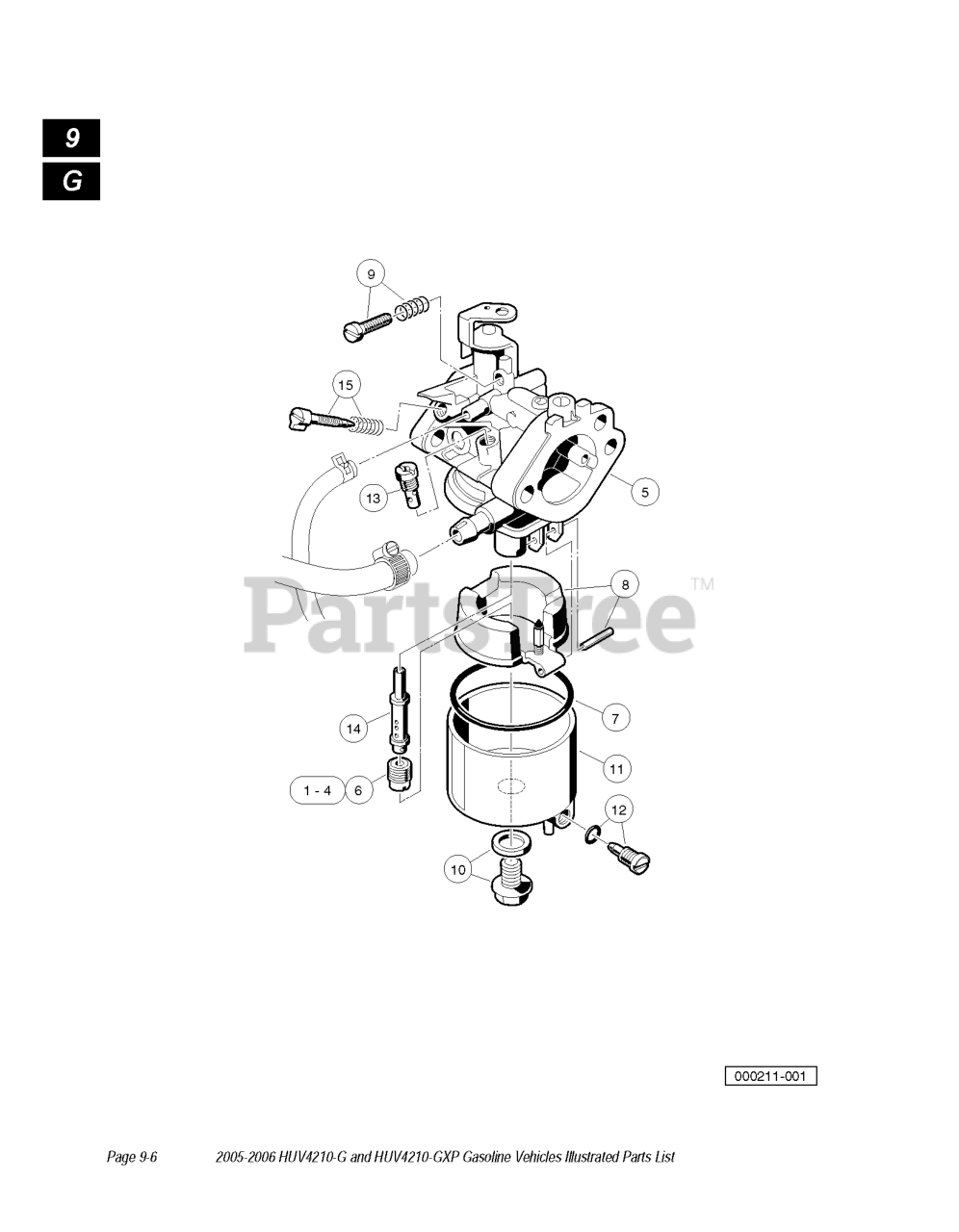

CARBURETOR Parts Diagram

  • Title

8

Husqvarna 603000319

FLOAT ASSEMBLY

$

$

Not available

10

Husqvarna 603000361

BOLT

$

$

Not available

6

Husqvarna 603000467

JET, HIGH ALTITUDE OHV

Note: "101642582 for 0 - 3,000 feet"

$

$

Not available

4

Husqvarna 603003096

JET, HIGH ALTITUDE JET

Note: "101642580 for 3,000 - 5,000 feet"

$

$

Not available

1

Husqvarna 603003093

JET, HIGH ALTITUDE OHV

Note: "101642572 for 10,000 feet and higher"

$

$

Not available

12

Husqvarna 603000324

SCREW ASSEMBLY

$

$

Not available

9

Husqvarna 603000325

SCREW ASSEMBLY

$

$

Not available

3

Husqvarna 603003095

JET, HIGH ALTITUDE OHV

Note: "101642578 for 5,000 - 8,000 feet"

$

$

Not available

14

Husqvarna 603003243

NOZZLE, MAIN

$

$

Not available

5

Husqvarna 603003218

CARBURETOR ASSY, FE290D

$

$

Not available

13

Husqvarna 603003242

JET, #40 PILOT

$

$

Not available

7

Husqvarna 603000297

GASKET, CARB. BOWL OHV

$

$

Not available

11

Husqvarna 603000409

CHAMBER ASSEMBLY - FLOAT

$

$

Not available

2

Husqvarna 603003094

JET, HIGH ALTITUDE OHV

Note: "101642575 for 8,000 - 10,000 feet"

$

$

Not available
