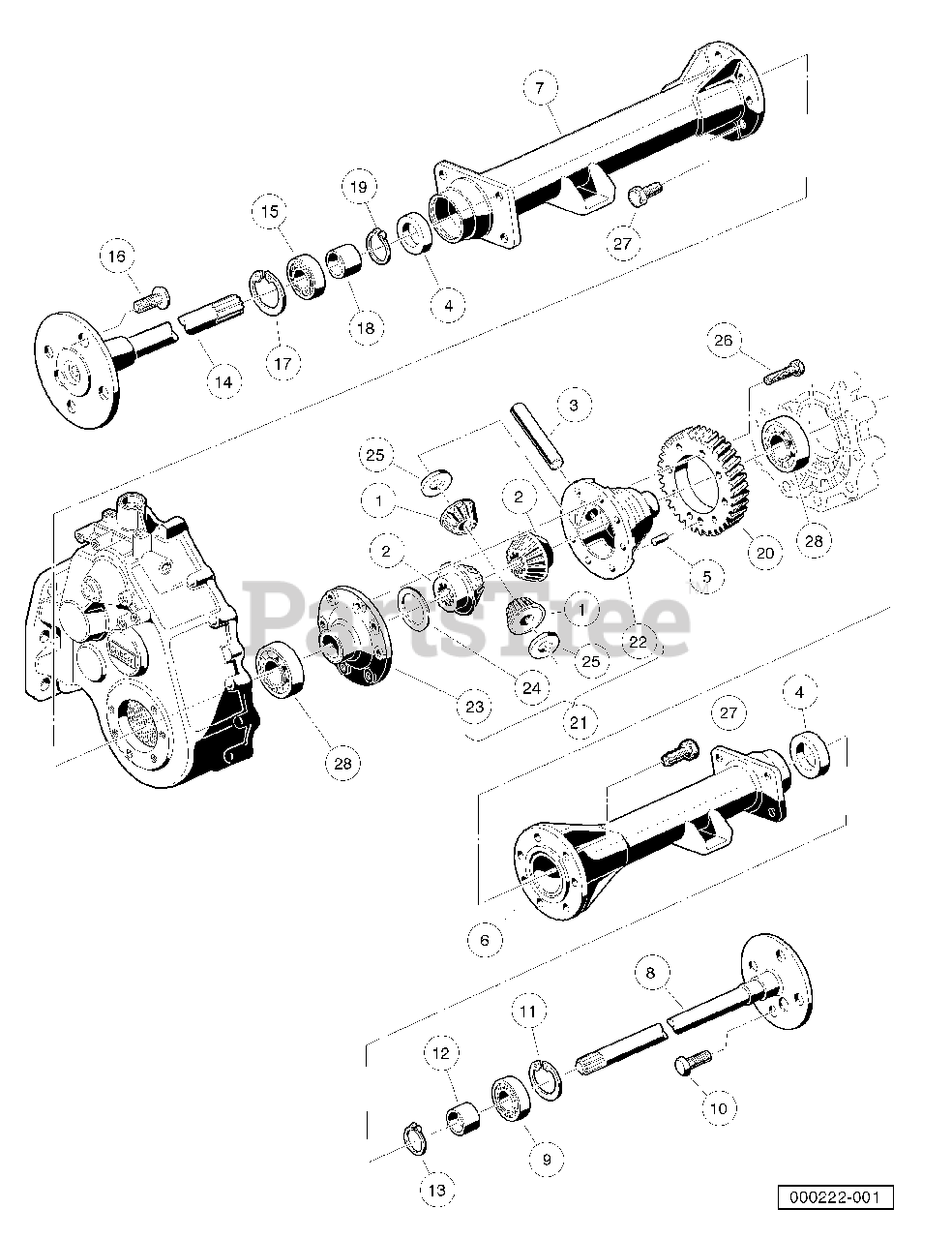

HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Transaxle / Differential and Axles Parts Diagram

4x2 Utility Vehicle

Transaxle / Differential and Axles Parts Diagram

  • Title

1

Husqvarna 603000186

Differential Idler Gear

$

$

Not available

2

Husqvarna 603003060

Gear, Differential

$

$

Not available

3

Husqvarna 603000187

Pin, Differential

$

$

Not available

4

Husqvarna 603003062

Axle Shaft Oil Seal

$

$

Not available

5

Dowel Pin

$

$

Not available

6

Husqvarna 603003209

Pipe

$

$

Not available

7

Husqvarna 603003210

Pipe

$

$

Not available

8

Husqvarna 603003211

Axle Assembly, Passenger Side

Note: (includes items 9 through 13)

$

$

Not available

9

Husqvarna 603000120

Outer Axle, Tube Bearing

$

$

Not available

10

Husqvarna 603000189

Lug Stud

$

$

Not available

11

Husqvarna 603000190

Circlip Type C

$

$

Not available

12

Husqvarna 603003070

Bushing

$

$

Not available

13

Husqvarna 603003151

Retaining Ring

$

$

Not available

14

Husqvarna 603003212

Axle Assembly, Driver-Side

Note: (includes items 15 through 19)

$

$

Not available

15

Husqvarna 603000120

Outer Axle, Tube Bearing

$

$

Not available

16

Husqvarna 603000189

Lug Stud

$

$

Not available

17

Husqvarna 603000190

Circlip Type C

$

$

Not available

18

Husqvarna 603003070

Bushing

$

$

Not available

19

Husqvarna 603003151

Retaining Ring

$

$

Not available

20

Husqvarna 603003216

Gear, Helical

$

$

Not available

21

Husqvarna 603003222

Kit, Differential Gear Case

Note: (includes items 22 through 25)

$

$

Not available

22

Husqvarna 603003058

Differential Gear Case, Left-Hand

$

$

Not available

23

Husqvarna 603003059

Differential Gear Case, Right-Hand

$

$

Not available

24

Husqvarna 603003061

Plate, Thrust

Note: (Differential Gear)

$

$

Not available

25

Husqvarna 603000188

Plate, Thrust

Note: (Idler Gear)

$

$

Not available

26

Husqvarna 603000605

Screw, M8-1.25 X 35mm Hex Head

$

$

Not available

27

Husqvarna 603000711

Bolt, M10 X 1.5 X 30mm

$

$

Not available

28

Husqvarna 603000075

Inner Axle Tube Bearing

$

$

Not available
