HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Rear Body And Fender Parts Diagram

4x2 Utility Vehicle

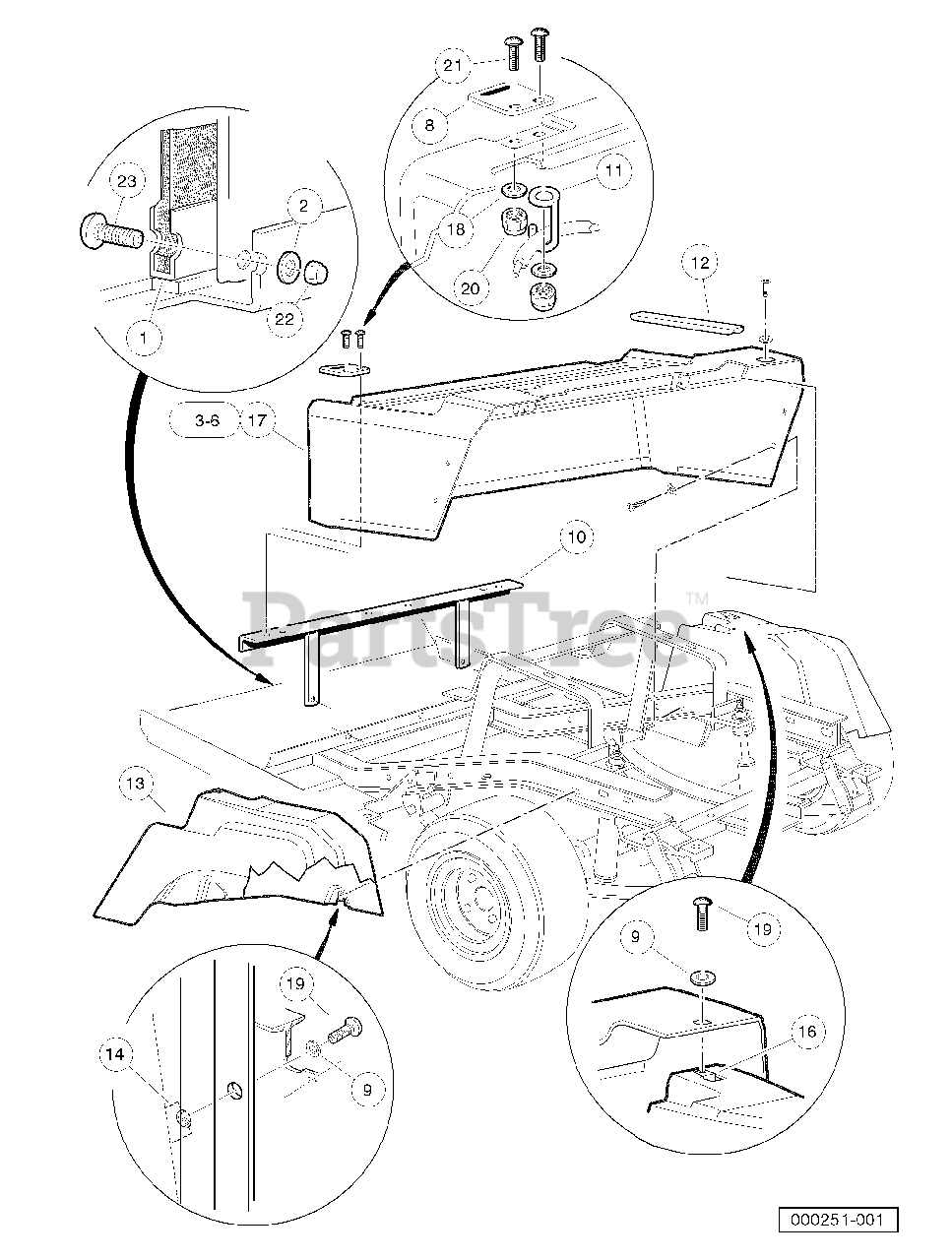

Rear Body And Fender Parts Diagram

  • Title

1

Husqvarna 603003629

Body Kick Plate

$

$

Not available

2

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

3

Husqvarna 102796801

Body, Rear, Gas, Red

$

$

Currently unavailable

4

Husqvarna 102796803

Body, Rear, Gas, Green

$

$

Currently unavailable

5

Husqvarna 102796804

Body, Rear, Gas, Classic Blue

$

$

Currently unavailable

6

Husqvarna 102796805

Body, Rear, Gas, Olive Green

$

$

Currently unavailable

7

Body Assembly

Note: (includes items 8 through 21)

$

$

Not available

8

Husqvarna 603000139

Body, Hinge Plate

$

$

Not available

9

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

10

Husqvarna 603003156

Body Support Front

$

$

Not available

11

Husqvarna 603003195

Cable Retainer

$

$

Not available

12

Husqvarna 603003252

Wear Pad

$

$

Not available

13

Husqvarna 603003275

Fender, Driver Side

Note: (includes item 14)

$

$

Not available

14

Husqvarna 603003154

U-N ut, 1 /4-20

$

$

Not available

15

Husqvarna 603002292

Fender, Passenger Side

Note: (includes item 16)

$

$

Not available

16

Husqvarna 603003154

U-N ut, 1 /4-20

$

$

Not available

17

Husqvarna 603002317

Body, Rear, Gas, Orange

$

$

Not available

18

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

19

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

20

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

21

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available

22

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

23

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available
