HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Front Spindles and Hubs - Earlier Style Parts Diagram

4x2 Utility Vehicle

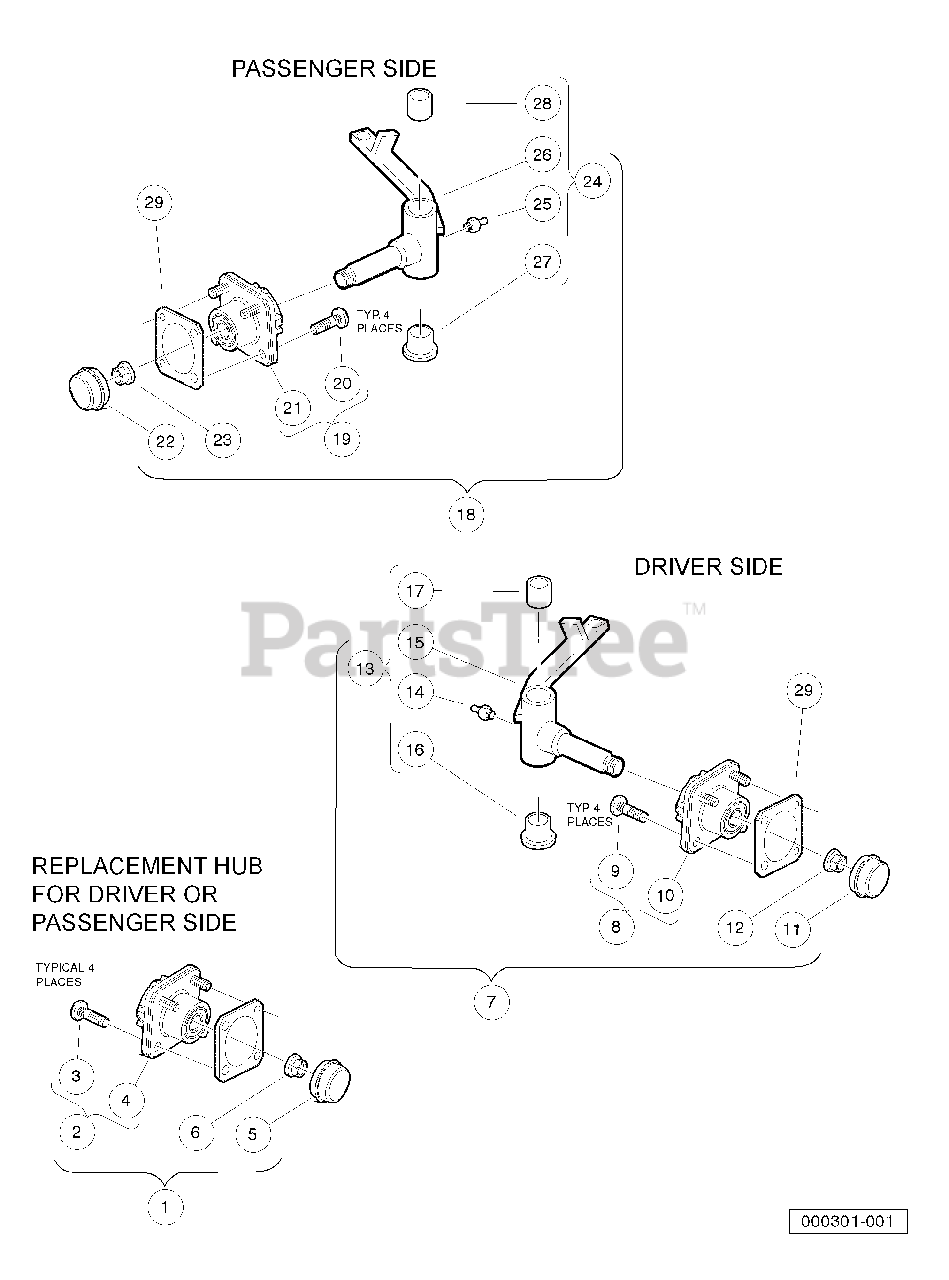

Front Spindles and Hubs - Earlier Style Parts Diagram

  • Title

1

Husqvarna 603002269

Replacement Kit, Front Hub

Note: (includes items 2 through 6)

$

$

Not available

2

Front Hub Assembly, Ball Bearing

Note: (includes items 3 and 4)

$

$

Not available

3

Husqvarna 603003260

Lug Stud, 1/2-20 UNF, 4037 Stl

$

$

Not available

4

Hub, Front

$

$

Not available

5

Husqvarna 603003258

Cap, Front Hub

$

$

Not available

6

Husqvarna 603003259

Hex Nut, Locking Flange, M14x2

$

$

Not available

7

Asm, Front Hub And Spindle, Left-Hand

Note: (includes items 8 through 13)

$

$

Not available

8

Front Hub Assembly, Ball Bearing (includes items 9 and 10)

$

$

Not available

9

Husqvarna 603003260

Lug Stud, 1/2-20 UNF, 4037 Stl

$

$

Not available

10

Hub, Front

$

$

Not available

11

Husqvarna 603003258

Cap, Front Hub

$

$

Not available

12

Husqvarna 603003259

Hex Nut, Locking Flange, M14x2

$

$

Not available

13

Husqvarna 603003262

Assembly, Spindle, Left-Hand

Note: (includes items 14 through 17)

$

$

Not available

14

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

15

Sub-Assembly, Spindle, Left-Hand

$

$

Not available

16

Husqvarna 603000070

Bushing, Flanged Bronze

$

$

Not available

17

Husqvarna 603000088

Bushing, Bronze Spindle

$

$

Not available

18

Asm, Front Hub And Spindle, Right-Hand

Note: (includes items 19 through 24)

$

$

Not available

19

Front Hub Assembly, Ball Bearing

Note: (includes items 20 and 21)

$

$

Not available

20

Husqvarna 603003260

Lug Stud, 1/2-20 UNF, 4037 Stl

$

$

Not available

21

Hub, Front

$

$

Not available

22

Husqvarna 603003258

Cap, Front Hub

$

$

Not available

23

Husqvarna 603003259

Hex Nut, Locking Flange, M14x2

$

$

Not available

24

Husqvarna 603003261

Assembly, Spindle, Right-Hand

Note: (includes items 25 through 28)

$

$

Not available

25

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

26

Sub-Assembly, Spindle, Right-Hand

$

$

Not available

27

Husqvarna 603000070

Bushing, Flanged Bronze

$

$

Not available

28

Husqvarna 603000088

Bushing, Bronze Spindle

$

$

Not available

29

Husqvarna 603002367

Spacer Wheel

$

$

Not available
