HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE350 Engine without ACR - Crankcase, Camshaft, and Oil Sensor Parts Diagram

4x2 Utility Vehicle

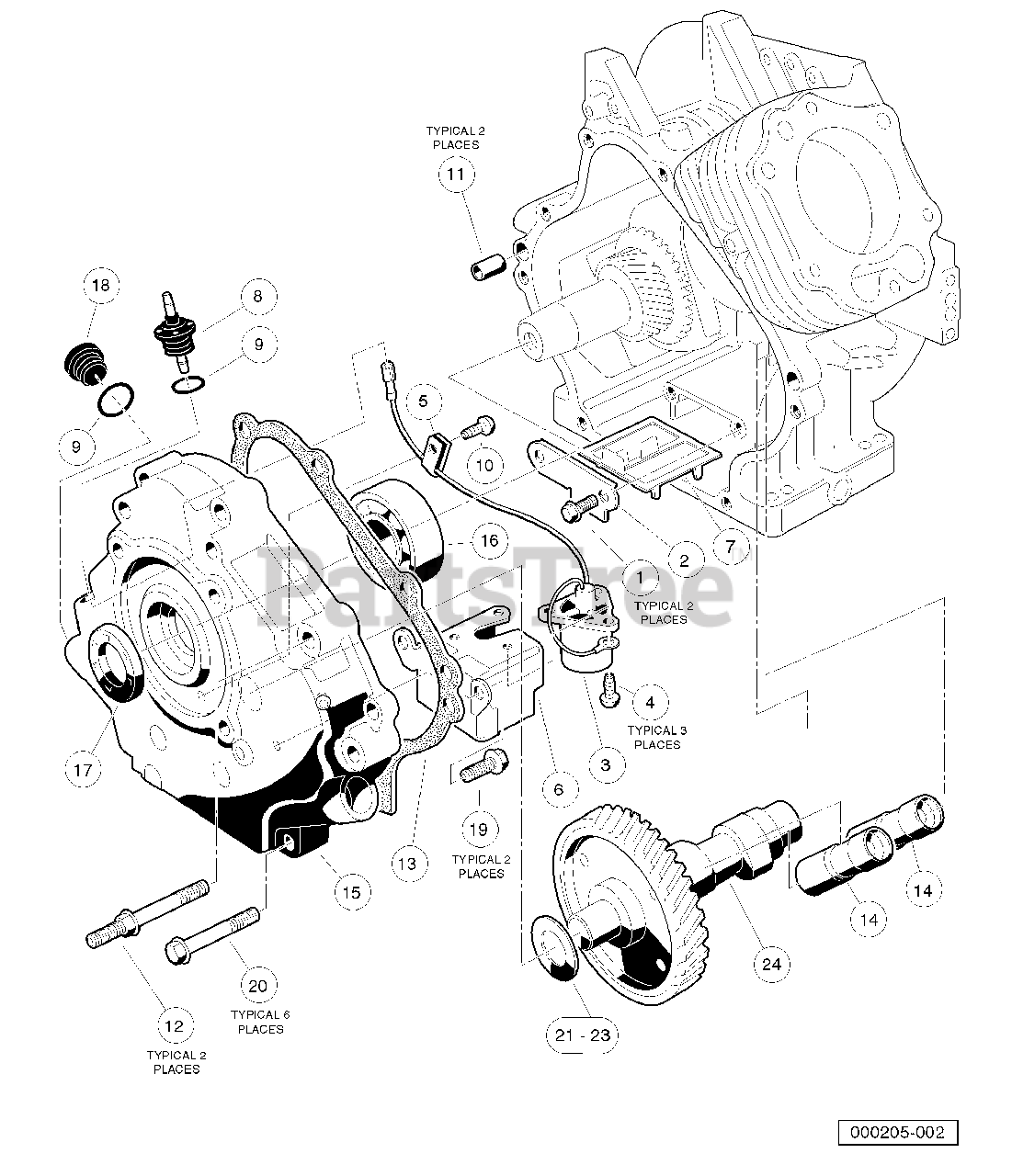

FE350 Engine without ACR - Crankcase, Camshaft, and Oil Sensor Parts Diagram

  • Title

1

Husqvarna 603000307

Bolt, Flange Head, M5 x 0.8 x 8 mm

$

$

Not available

2

Husqvarna 603000313

Plate, Oil Filter Screen

$

$

Not available

3

Husqvarna 603000321

Sensor, Oil Level

$

$

Not available

4

Husqvarna 603000322

Screw, Cross Pan-Head, M4 x 0.7 x 8 mm

$

$

Not available

5

Husqvarna 603000327

Clamp

$

$

Not available

6

Husqvarna 603003122

Bracket, Switch, Oil Level

$

$

Not available

7

Husqvarna 603000332

Screen, Oil Filter

$

$

Not available

8

Husqvarna 603000334

Connector, Cord

$

$

Not available

9

Husqvarna 603000336

O-Ring

$

$

Not available

10

Husqvarna 603000339

Screw

$

$

Not available

11

Husqvarna 603000347

Pin

$

$

Not available

12

Husqvarna 603000360

Bolt, Two-Ended, M8 x 1.25 x 69 mm

$

$

Not available

13

Husqvarna 603000397

Gasket, Crankcase Cover

$

$

Not available

14

Husqvarna 603000401

Adjuster, Lash

$

$

Not available

15

Husqvarna 603003171

Cover Crankcase

$

$

Not available

16

Husqvarna 603000418

Bearing, Ball

$

$

Not available

17

Husqvarna 603003172

Seal, Oil

$

$

Not available

18

Husqvarna 603000425

Plug

$

$

Not available

19

Husqvarna 603003174

Bolt

$

$

Not available

20

Husqvarna 603000428

Screw, M8-1.25 X 45mm Hex

$

$

Not available

21

Husqvarna 603000476

Shim, 0.3

$

$

Not available

22

Husqvarna 603000477

Shim, 0.4

$

$

Not available

23

Husqvarna 603000478

Shim, 0.5

$

$

Not available

24

Husqvarna 603003265

Camshaft, FE350 without ACR, 44-Tooth

$

$

Not available
