HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE350 Engine - Ignition Components and Flywheel Parts Diagram

4x2 Utility Vehicle

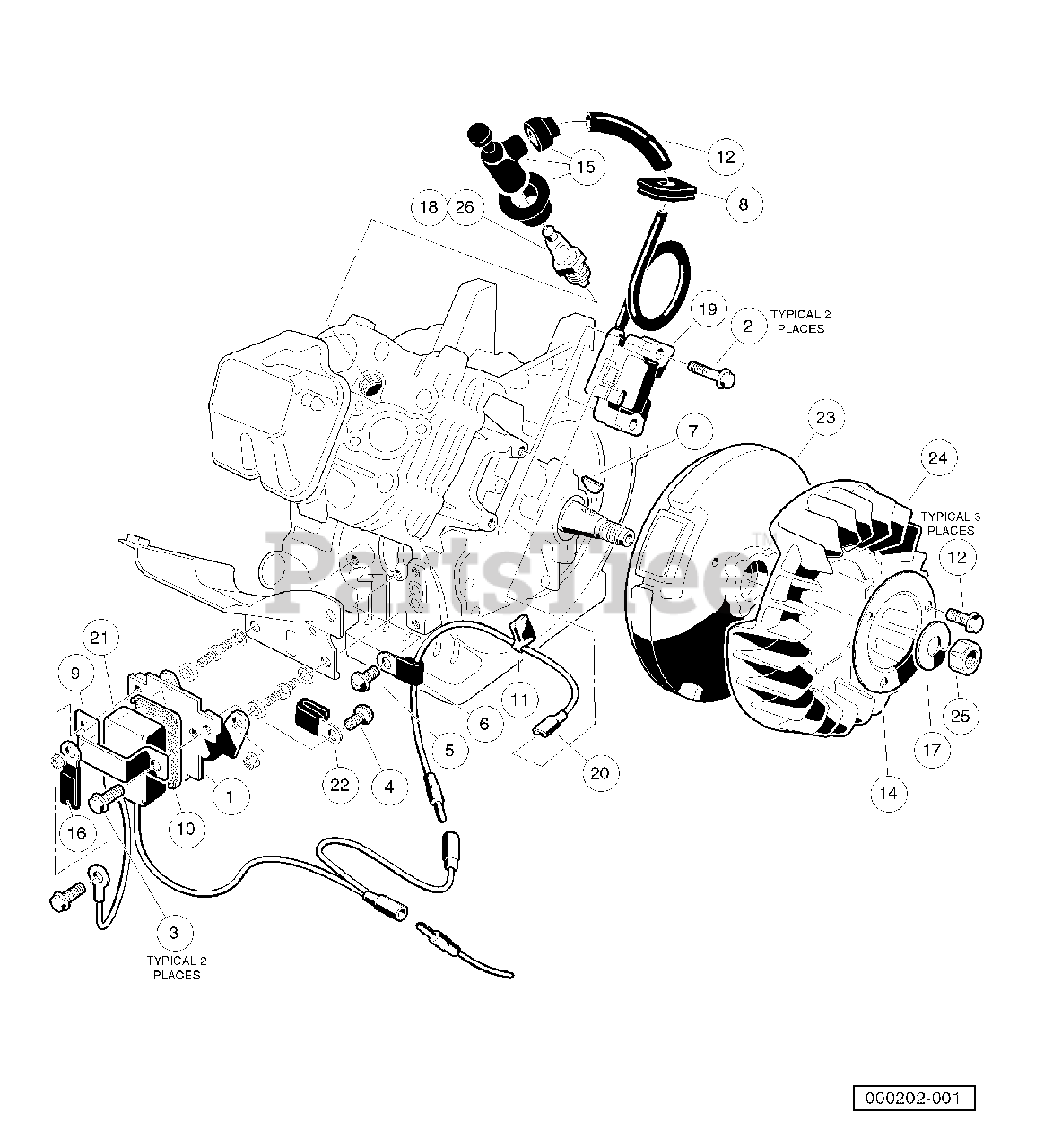

FE350 Engine - Ignition Components and Flywheel Parts Diagram

  • Title

1

Husqvarna 603000303

Bracket, RPM Limiter

$

$

Not available

2

Husqvarna 603000308

Bolt, Flange Head

$

$

Not available

3

Husqvarna 603000309

Bolt, Flange Head, M6 x 1 x 12 mm

$

$

Not available

4

Husqvarna 603000323

Screw, Pan WP Cross

$

$

Not available

5

Husqvarna 603000339

Screw

$

$

Not available

6

Husqvarna 603000344

Clamp

$

$

Not available

7

Husqvarna 603000345

Key

$

$

Not available

8

Husqvarna 603000355

Grommet

$

$

Not available

9

Husqvarna 603000356

Band, RPM Limiter Mount

$

$

Not available

10

Husqvarna 603000362

Damper, RPM Limiter

$

$

Not available

11

Husqvarna 603000363

Clamp

$

$

Not available

12

Husqvarna 603000364

Tube, 7mm X 10mm X 70mm

$

$

Not available

13

Husqvarna 603000402

Bolt, Flanged

$

$

Not available

14

Husqvarna 603000405

Plate, Flywheel Fan

$

$

Not available

15

Husqvarna 603000410

Cap Asm Plug

$

$

Not available

16

Husqvarna 603004379

Clamp

$

$

Not available

17

Husqvarna 603000419

Washer, Flat

$

$

Not available

18

Husqvarna 603000007

Spark Plug, OHV

Note: (Autolite)

$

$

Not available

19

Husqvarna 603000581

Coil, Ignition

$

$

Not available

20

Husqvarna 603000582

Lead Wire Assy

$

$

Not available

21

Husqvarna 603000583

Limited RPM

$145.99

$

Usually ships in 3-10 days

0

22

Clamp, Steel

$

$

Not available

23

Husqvarna 603000586

Flywheel

$

$

Not available

24

Husqvarna 603000587

Fan

Note: (cw)

$

$

Not available

25

Nut, Hex, 18 mm Fine

$

$

Not available

26

Husqvarna 603000580

Spark Plug, OHV

Note: (NGK)

$3.49

$

In Stock, Qty 20+

0
