HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE290 Engine - Oil Circulation Parts Diagram

4x2 Utility Vehicle

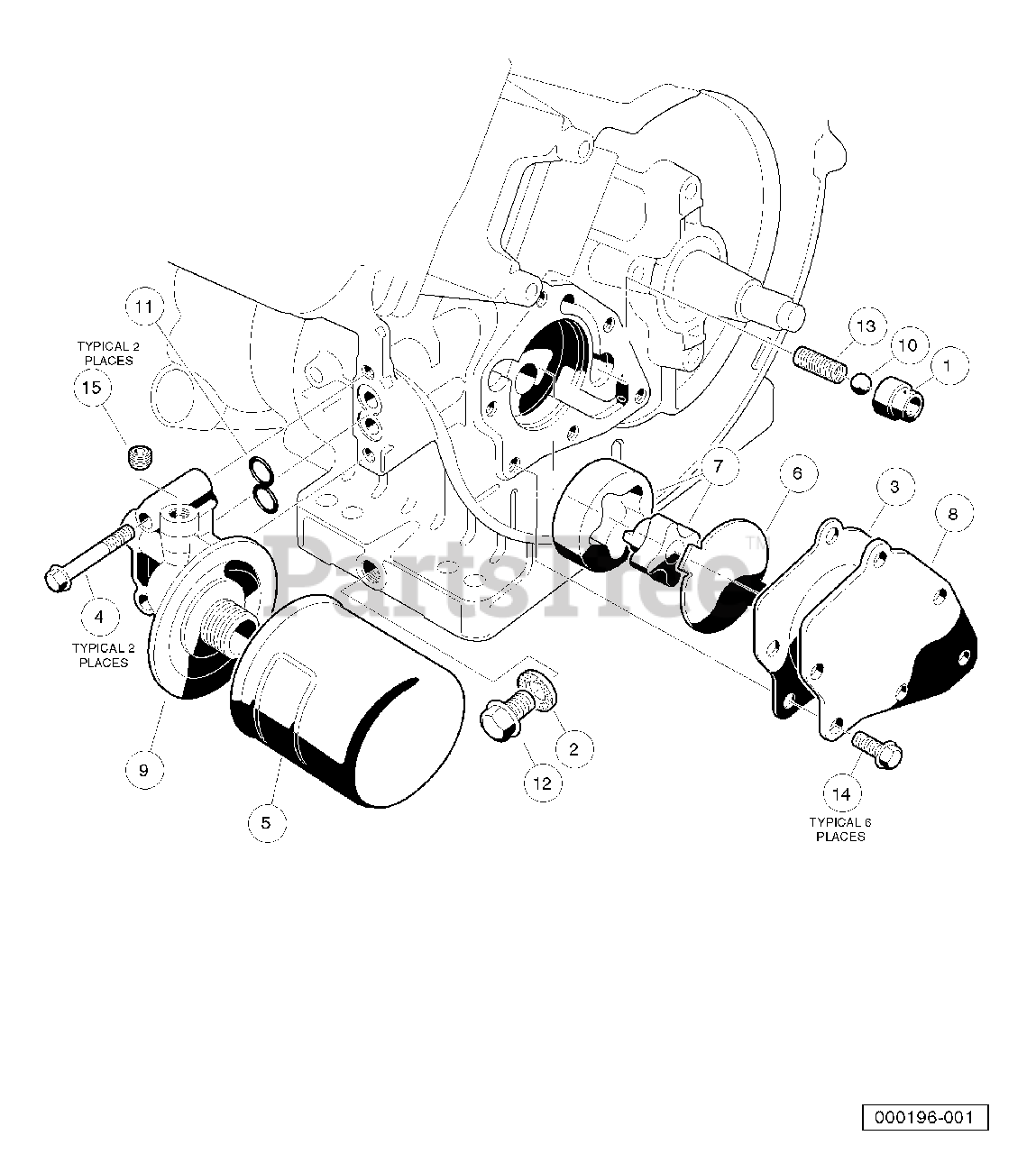

FE290 Engine - Oil Circulation Parts Diagram

  • Title

1

Husqvarna 603000294

Seat, Value Oil Press Relief

$

$

Not available

2

Husqvarna 603000295

Gasket, Drain Plug

$1.99

$

In Stock, Qty 15

0

3

Husqvarna 603003099

Gasket, Oil Pump

$

$

Not available

4

Husqvarna 603000310

Bolt, Flange Head

$

$

Not available

5

Husqvarna 603000006

Filter, Oil

$

$

Not available

6

Husqvarna 603000314

Plate, Oil Pump

$

$

Not available

7

Husqvarna 603000471

Oil Pump And Rotor

$

$

Not available

8

Husqvarna 603003118

Cover, Pump

$

$

Not available

9

Husqvarna 603000326

Bracket, Oil Filter Mount

$

$

Not available

10

Husqvarna 603000335

Ball, Steel, Press, Relief

$

$

Not available

11

Husqvarna 603000350

O-Ring

$

$

Not available

12

Husqvarna 603000354

Plug, Drain

$

$

Not available

13

Husqvarna 603000357

Spring

$

$

Not available

14

Husqvarna 603000406

Bolt, Flanged

$

$

Not available

15

Husqvarna 603000424

Plug

$

$

Not available
