HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE290 Engine - Crankcase, Camshaft, and Oil Sensor Parts Diagram

4x2 Utility Vehicle

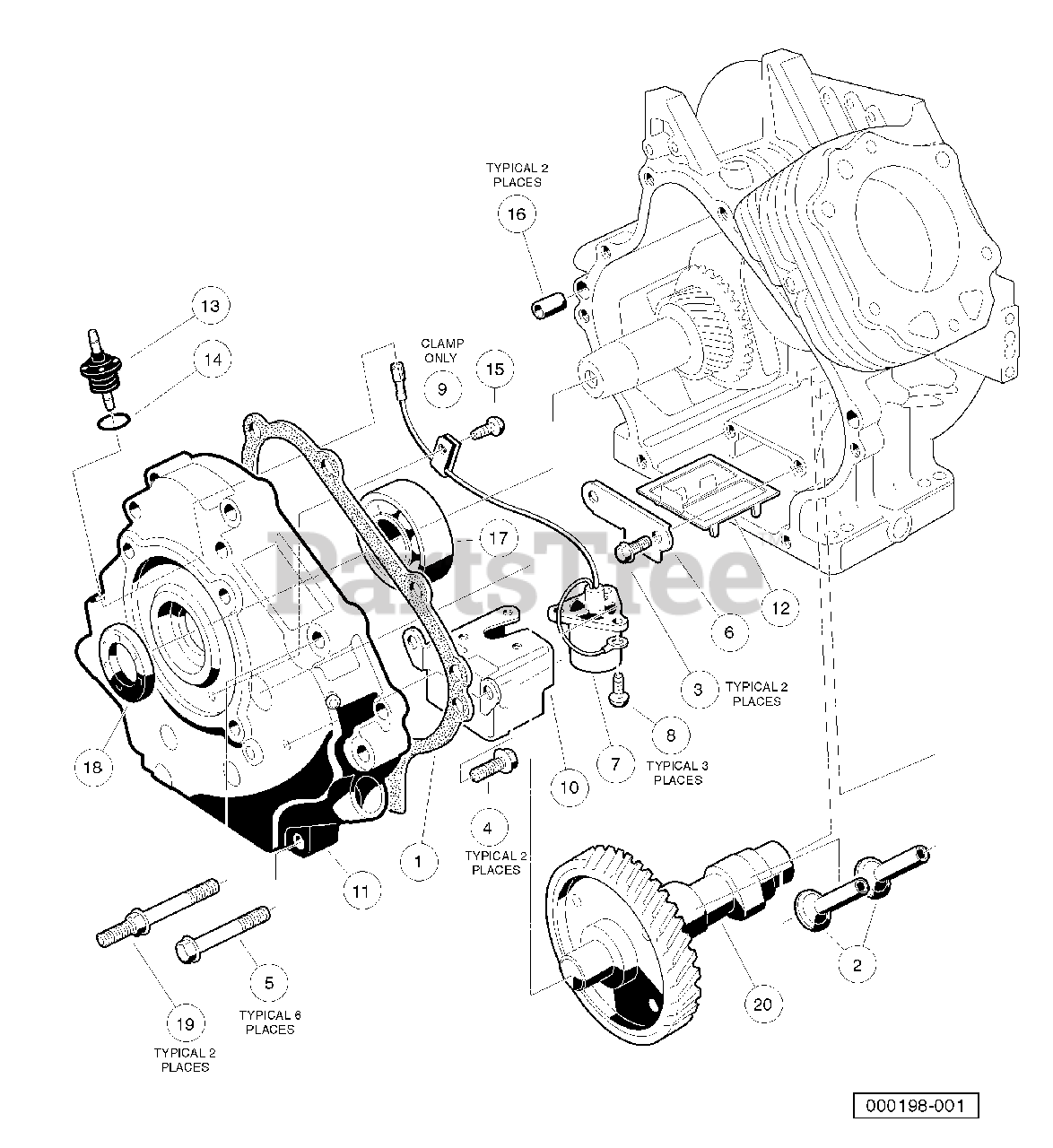

FE290 Engine - Crankcase, Camshaft, and Oil Sensor Parts Diagram

  • Title

1

Husqvarna 603003102

Gasket, Crankcase Cover

$

$

Not available

2

Husqvarna 603003106

Tappet

$

$

Not available

3

Husqvarna 603000307

Bolt, Flange Head, M5 x 0.8 x 8 mm

$

$

Not available

4

Husqvarna 603000309

Bolt, Flange Head, M6 x 1 x 12 mm

$

$

Not available

5

Husqvarna 603000311

Bolt, Flange Head, M8 x 1.25 x 45 mm

$

$

Not available

6

Husqvarna 603000313

Plate, Oil Filter Screen

$

$

Not available

7

Husqvarna 603000321

Sensor, Oil Level

$

$

Not available

8

Husqvarna 603000322

Screw, Cross Pan-Head, M4 x 0.7 x 8 mm

$

$

Not available

9

Husqvarna 603000327

Clamp

$

$

Not available

10

Husqvarna 603003122

Bracket, Switch, Oil Level

$

$

Not available

11

Husqvarna 603003125

Cover, Crankcase

$

$

Not available

12

Husqvarna 603000332

Screen, Oil Filter

$

$

Not available

13

Husqvarna 603000334

Connector, Cord

$

$

Not available

14

Husqvarna 603000336

O-Rinq

$

$

Not available

15

Husqvarna 603000339

Screw

$

$

Not available

16

Husqvarna 603000347

Pin

$

$

Not available

17

Husqvarna 603003147

Bearing, Ball

$

$

Not available

18

Husqvarna 603003148

Seal, Crankshaft

$

$

Not available

19

Husqvarna 603000360

Bolt, Two-Ended, M8 x 1.25 x 69 mm

$

$

Not available

20

Husqvarna 603003224

Camshaft Complete, FE290

$

$

Not available
