HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Carburetor Assembly - FE290 Parts Diagram

4x2 Utility Vehicle

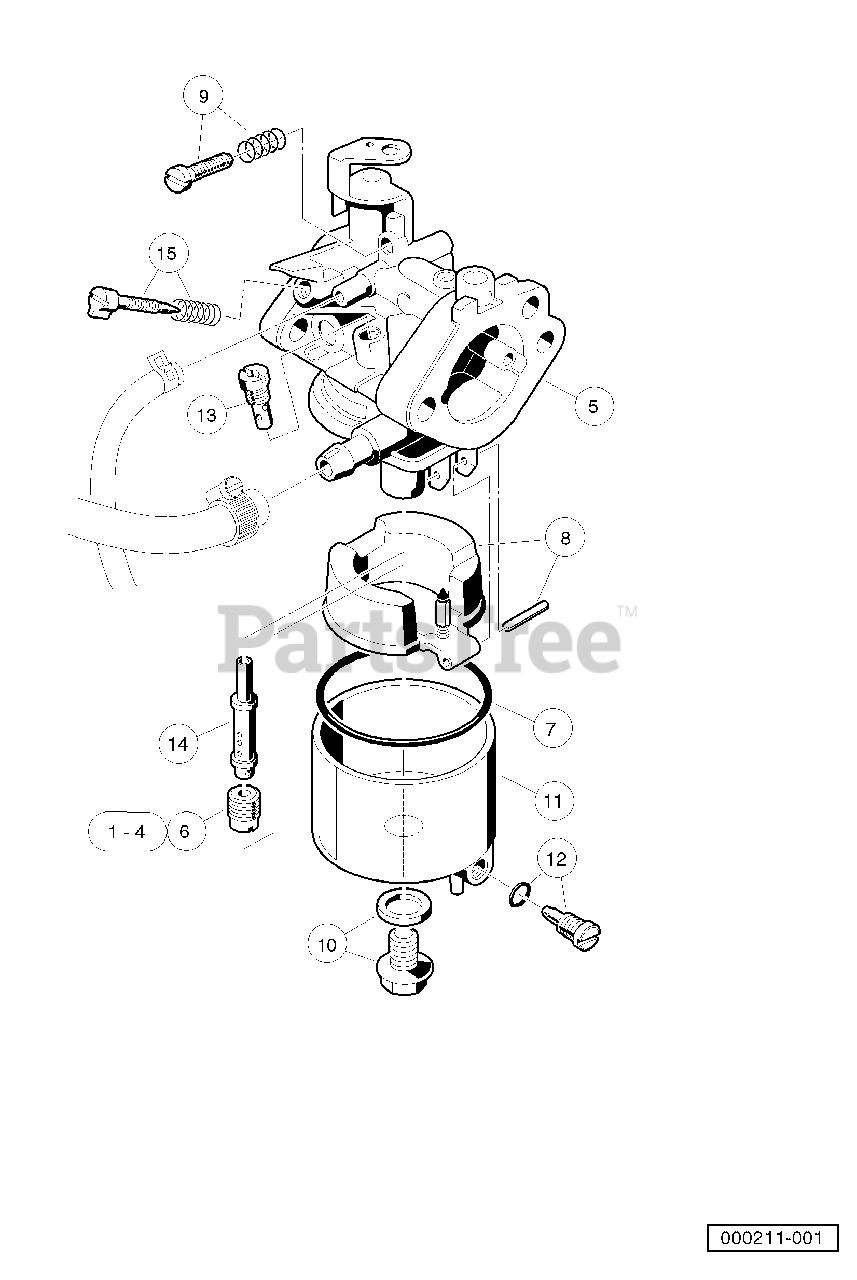

Carburetor Assembly - FE290 Parts Diagram

  • Title

1

Husqvarna 603003093

Jet, Altitude, # 72

$

$

Not available

2

Husqvarna 603003094

Jet, Altitude, # 75

$

$

Not available

3

Husqvarna 603003095

Jet, Altitude, # 78

$

$

Not available

4

Husqvarna 603003096

Jet, Altitude, # 80

$

$

Not available

5

Husqvarna 603003218

Carburetor Assembly, FE290D

Note: (includes items 6 through 15)

$

$

Not available

6

Husqvarna 603000467

Jet, Altitude, # 82

$

$

Not available

7

Husqvarna 603000297

Gasket, Carburetor Bowl OHV

$

$

Not available

8

Husqvarna 603000319

Float Assembly

$

$

Not available

9

Husqvarna 603000325

Screw Assembly

$

$

Not available

10

Husqvarna 603000361

Bolt

$

$

Not available

11

Husqvarna 603000409

Chamber Assembly, Float

Note: (includes item 12)

$

$

Not available

12

Husqvarna 603000324

Screw Assembly

$

$

Not available

13

Husqvarna 603003242

Jet, #40 Pilot

$

$

Not available

14

Husqvarna 603003243

Nozzle, Main

$

$

Not available

15

Assembly, Pilot Air Screw

$

$

Not available
