HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Steering Gear Assembly Parts Diagram

4x2 Utility Vehicle

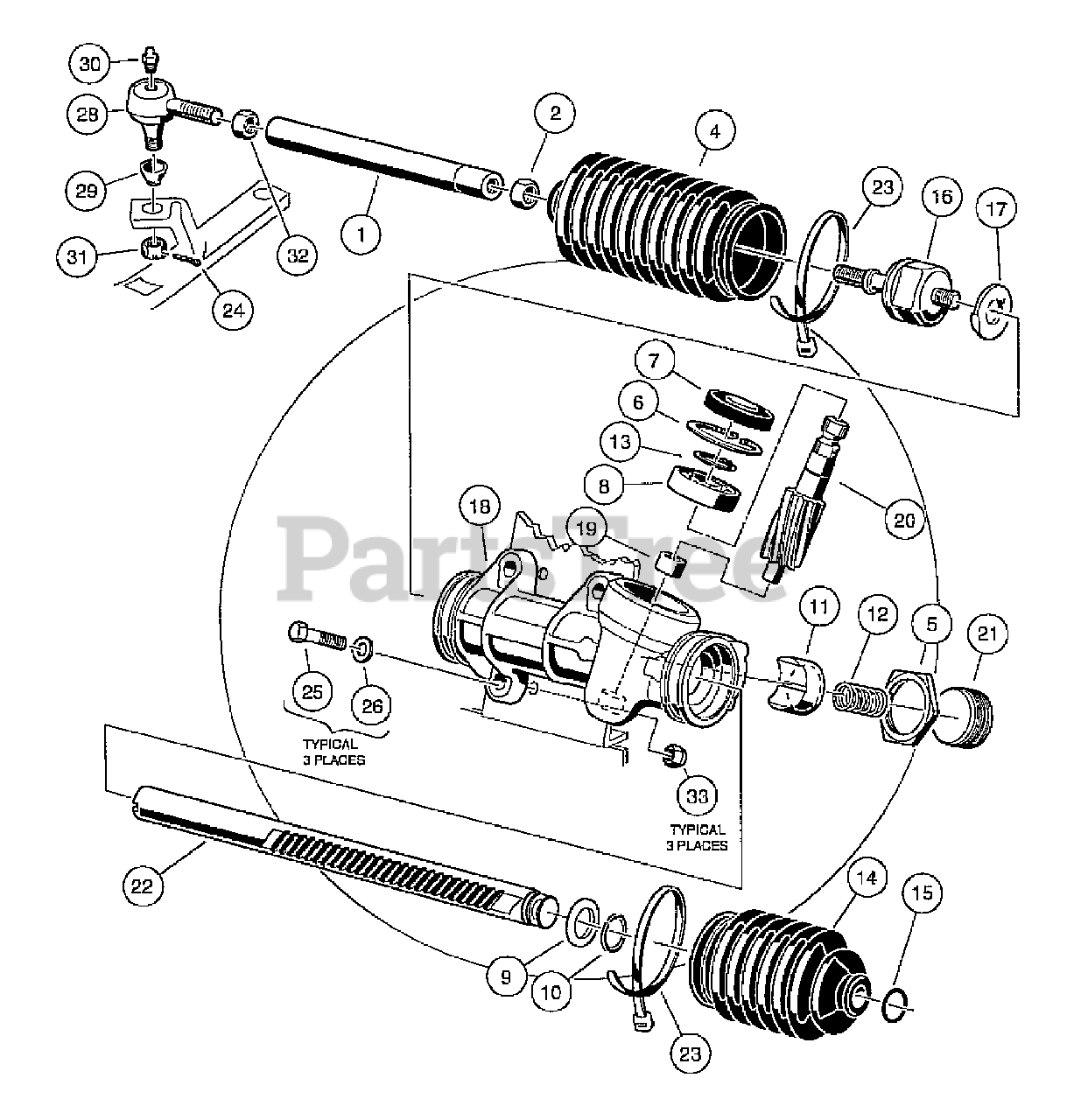

Steering Gear Assembly Parts Diagram

  • Title

1

Husqvarna 603002048

Link, Rack and Pinion Drag
(Superseded to 603003054)

$

$

Not available

2

Husqvarna 603000167

Nut, 12mm Hex

$

$

Not available

3

Husqvarna 603002207

Steering Gear Assembly (without Yoke)
(Superseded to 603003201)

Note: (includes items 4 through 23)

$

$

Not available

4

Husqvarna 603000166

Bellows, Long

$

$

Not available

5

Husqvarna 60300016B

Rack Screw Locknut

$

$

Currently unavailable

6

Husqvarna 603000169

Snap Ring

$

$

Not available

7

Husqvarna 603000170

Seal, Steering Pinion Dust

$

$

Not available

8

Husqvarna 603000549

Bearing, Ball

$

$

Not available

9

Husqvarna 603002208

Stop Washer
(Superseded to 603003202)

$

$

Not available

10

Husqvarna 603002209

Stop Ring, C-Type
(Superseded to 603003203)

$

$

Not available

11

Husqvarna 603000550

Support Yoke

$

$

Not available

12

Husqvarna 603000551

Rack Guide Pressure Spring

$

$

Not available

13

Husqvarna 603000552

Ring, Stop, C-Type

$

$

Not available

14

Husqvarna 603002210

Bellows, Short
(Superseded to 603003204)

$

$

Not available

15

Husqvarna 603002211

Dust Seal Retaining Ring
(Superseded to 603003205)

$

$

Not available

16

Husqvarna 603000553

Inner Ball Joint Asm

$

$

Not available

17

Husqvarna 603002212

Washer, Tab
(Superseded to 603003206)

$

$

Not available

18

Husqvarna N/A

Box, Steering Gear

$

$

Not available

19

Husqvarna N/A

Bearing, Lower Pinion

$

$

Not available

20

Husqvarna N/A

Pinion, Steering

$

$

Not available

21

Husqvarna N/A

Screw, Rack Guide

$

$

Not available

22

Husqvarna N/A

Rack, Steering

$

$

Not available

23

Husqvarna 603000099

Tie Wrap, 8" Nylon
(Superseded to 603002963)

$

$

Not available

24

Husqvarna 603000063

Pin, 3132 X 1.00 Sq Cut Cotter

$

$

Not available

25

Husqvarna 603000068

Screw, 3/8-16 X 1.50 Hx Hd Cap

$

$

Not available

26

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

27

Husqvarna 603002346

Ball Joint, Left
(Superseded to 603002040)

Note: (includes items 28 through 31)

$

$

Not available

28

Husqvarna 603002040

Socket, LH Vertical

$

$

Not available

29

Husqvarna 603002041

Seal, Vertical Socket Dust
(Superseded to 603003047)

$

$

Not available

30

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 603002348

Nut, 3/8-24 UNF Hex
(Superseded to 603003309)

$

$

Not available

32

Husqvarna 603002347

Nut, 1/2-20 Hex, Left-Hand Thread
(Superseded to 603003308)

$

$

Not available

33

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
