HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Seat Back Parts Diagram

4x2 Utility Vehicle

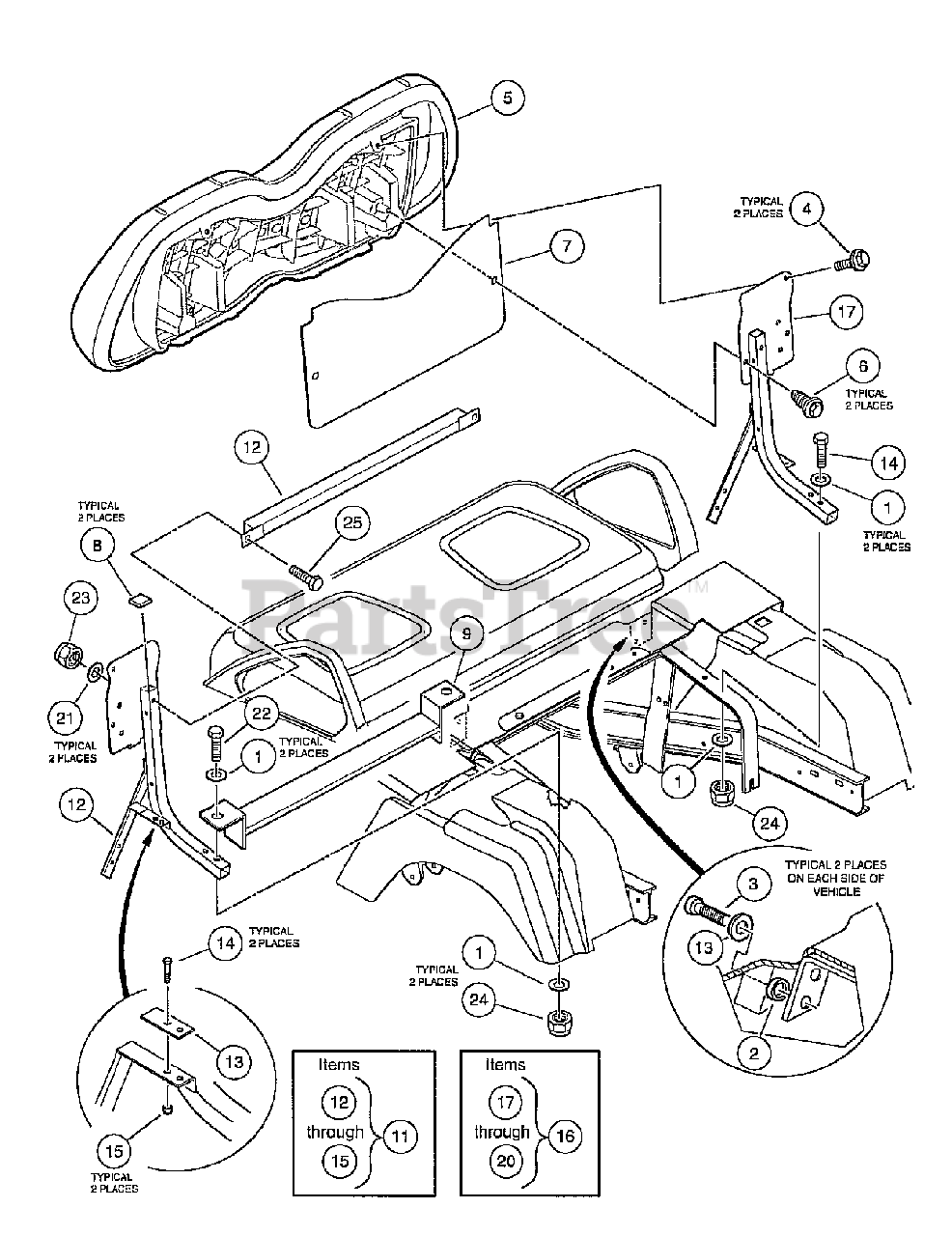

Seat Back Parts Diagram

  • Title

1

Husqvarna 603002042

Washer, 1/4 Flat
(Superseded to 603003048)

$

$

Not available

2

Husqvarna 603000434

Body Spacer

$

$

Not available

3

Husqvarna 603002227

Screw, 5/16-18 X 1.25 Thrd Frm
(Superseded to 603003221)

$

$

Not available

4

Husqvarna 603002265

Screw - M6 X 1.0 X 30 Sems
(Superseded to 603003254)

$

$

Not available

5

Husqvarna 603002281

Backrest Assembly, Gray

$

$

Not available

6

Husqvarna 603002283

Screw, M6 Hex
(Superseded to 603003268)

$

$

Not available

7

Husqvarna 603002284

Backrest Cover Plate

$

$

Currently unavailable

8

Husqvarna 6030022B5

Plug, Square - 25.4 mm

$

$

Currently unavailable

9

Husqvarna 603002302

Weldment, Bed Support

$

$

Not available

10

Husqvarna 603002316

Seat Support, Cross Brace

$

$

Not available

11

Husqvarna 603002370

Support, Seat, Left (driver)
(Superseded to 603002304)

Note: (includes items 12 through 15)

$

$

Not available

12

Husqvarna 603002304

Seat Support, Driver-Side

$

$

Not available

13

Husqvarna 603002366

Plate, Bed Latch Striker

$

$

Not available

14

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

15

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

16

Husqvarna 603002371

Support, Seat, Right (passenger)
(Superseded to 603002305)

Note: (includes items 17 through 20)

$

$

Not available

17

Husqvarna 603002305

Seat Support, Passenger-Side

$

$

Not available

18

Husqvarna 603002366

Plate, Bed Latch Striker

$

$

Not available

19

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

20

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

21

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

22

Husqvarna 603000074

Screw, 1/4-20 X 2.00 Hx Hd Cap

$

$

Not available

23

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

24

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

25

Husqvarna 603002352

Screw, 5/16-18 X 1.75 Hex-Head Cap

$

$

Not available
