HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Maintenance And Service Tools, Continued (Part 3) Parts Diagram

4x2 Utility Vehicle

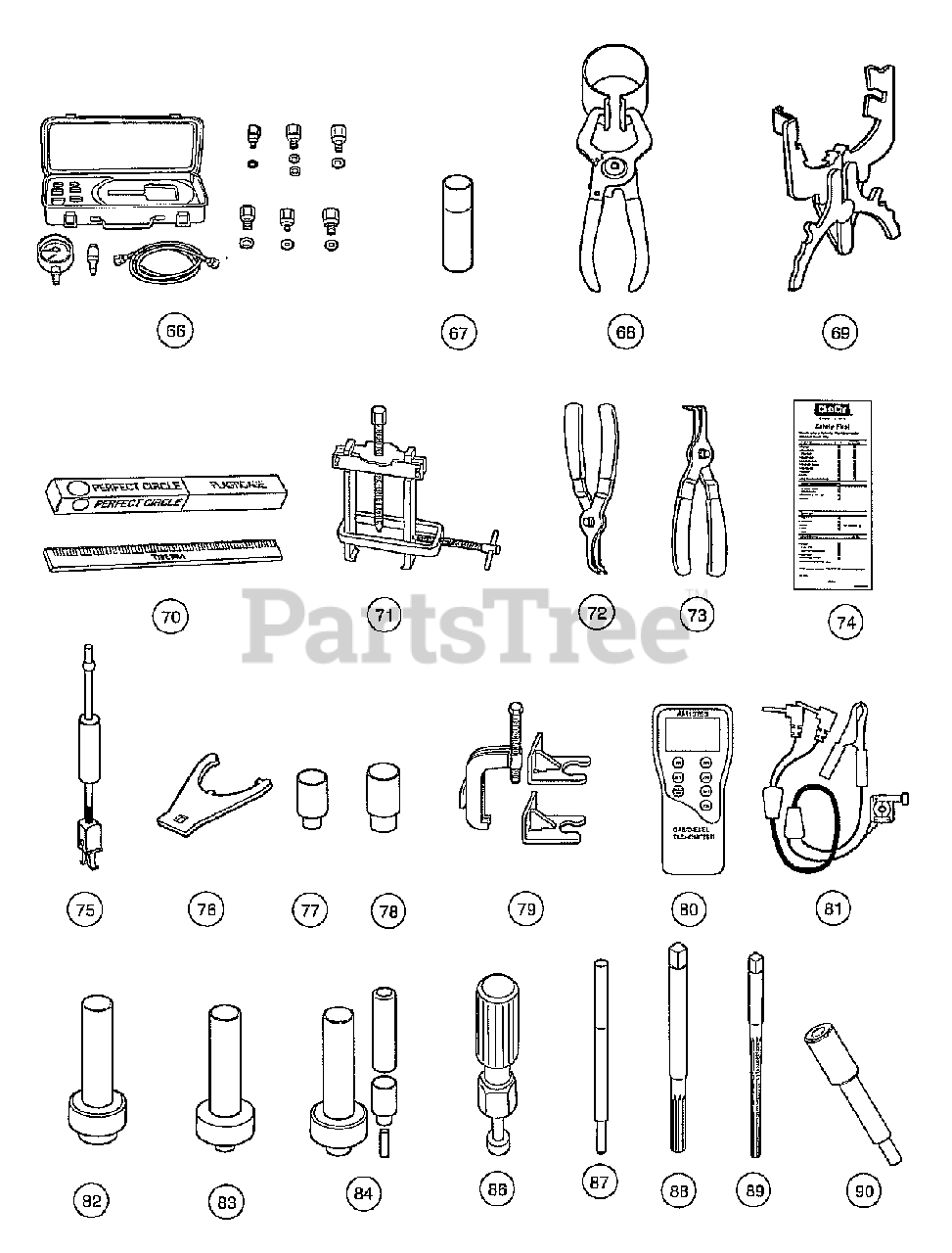

Maintenance And Service Tools, Continued (Part 3) Parts Diagram

  • Title

66

Oil Pressure Tester

Note: Not used.

$

$

Not available

67

Husqvarna 603001900

Paint, Touch-Up - Beige
(Superseded to 603003370)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001901

Paint, Touch-Up - Black
(Superseded to 603003371)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001902

Paint, Touch-Up - Burgundy
(Superseded to 603003372)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001903

Paint, Touch-Up - Classic Blue (Navy)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001904

Paint, Touch-Up - Dark Gray

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001905

Paint, Touch-Up - Dark Green

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001906

Paint, Touch-Up - Gray

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001907

Paint, Touch-Up - Red

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001908

Paint, Touch-Up - Royal Blue (Pacific Blue)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001909

Paint, Touch-Up - White

Note: Not for use on Surlyn® body material.

$

$

Not available

68

Husqvarna 603001910

Piston Ring Compressor Kit (FE290, FE350 and FE400 engines)

$

$

Not available

69

Husqvarna 603001911

Piston Ring Pliers

Note: (for Kawasaki Engines)

$

$

Not available

70

Husqvarna 603001912

Plastigage

Note: (for Kubota D722 Diesel Engines)

$

$

Currently unavailable

71

Husqvarna 603001913

Puller, Special Use

Note: (for Kubota D722 Diesel Engines); Not For use on Surlyn® body material.

$

$

Not available

72

Husqvarna 603001914

Retaining Ring Pliers, 45° External

$

$

Not available

73

Husqvarna 603001915

Retaining Ring Pliers, 90° Internal

$

$

Not available

74

Husqvarna 603001916

Safety First Card (50 per pack)

$

$

Not available

75

Husqvarna 603001917

Seal Puller

$

$

Not available

76

Husqvarna 603001918

Spanner Wrench

Note: (for coil over shock front suspension vehicles only)

$

$

Not available

77

Husqvarna 603001919

Steering Column Bearing Press Tool

$

$

Not available

78

Husqvarna 603001920

Steering Column Retaining Ring Tool

$

$

Not available

79

Husqvarna 603001921

Steering Wheel Puller Tool

$

$

Not available

80

Husqvarna 603001922

Tachometer
(Superseded to 603002007)

Note: (includes gasoline engine pick up lead only)

$

$

Not available

81

Tachometer Diesel Probe

Note: Not used.

$

$

Not available

82

Husqvarna 603001924

Transaxle Axle Seal Tool

$

$

Not available

83

Husqvarna 603001925

Transaxle Pinion Seal Tool

$

$

Not available

84

Husqvarna 603001926

Transmission Tool Kit

$

$

Not available

85

Husqvarna 603000005

Tune-Up Kit, All OHV

Note: (for Kawasaki Engines),(Includes air filter, spark plug, oil filter, fuel filters),(not shown)

$

$

Not available

86

Husqvarna 603001928

Valve Clearance Adjuster Screw Holder

Note: (for FE290 engines only)

$

$

Not available

87

Husqvarna 603001929

Valve Guide Driver

Note: (for Honda GX620 Gasoline Engines)

$

$

Not available

88

Husqvarna 603001930

Valve Guide Reamer (FE290, FE350, and FE400 only)

$

$

Not available

89

Husqvarna 603001931

Valve Guide Reamer, 6.6 mm

Note: (for Honda GX620 Gasoline Engines)

$

$

Not available

90

Valve Guide Replacement Tool

Note: Not used.

$

$

Not available
