HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Headlight Parts Diagram

4x2 Utility Vehicle

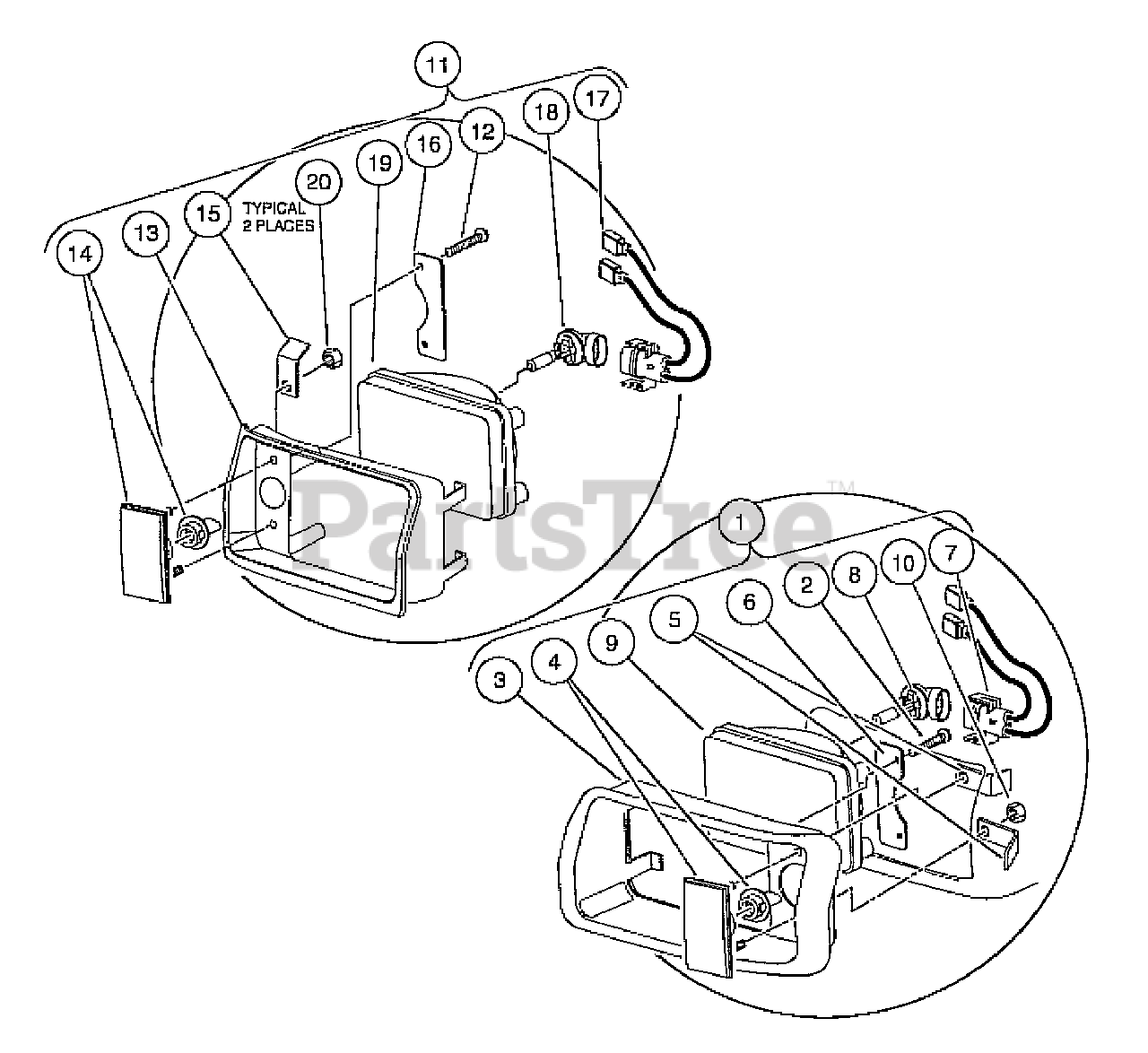

Headlight Parts Diagram

  • Title

1

Husqvarna 603000626

Headlight Assembly, Driver-Side Single Beam

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 603000173

Screw, #10-16 Hex Head Hi-lo

$

$

Not available

3

Husqvarna 603000374

Headlight Bezel, Left

$

$

Not available

4

Husqvarna 603000380

Turn Signal Lens Assy

$

$

Not available

5

Husqvarna 603000381

Mounting Bracket

$

$

Not available

6

Husqvarna 603000382

Retainer, Headlight

$

$

Not available

7

Husqvarna 603000625

Connector Harness Assembly, Headlight

$

$

Not available

8

Husqvarna 603000628

Bulb, Headlight

$

$

Not available

9

Husqvarna 603000629

Lens, Headlight

$

$

Not available

10

Husqvarna 603000084

Nut, #10-32 Hex

$

$

Not available

11

Husqvarna 603000627

Headlight Assy, Passenger-Side Single Beam

Note: (Includes items 12 through 20)

$

$

Not available

12

Husqvarna 603000173

Screw, #10-16 Hex Head Hi-lo

$

$

Not available

13

Husqvarna 603000373

Headlight Bezel, Right

$

$

Not available

14

Husqvarna 603000380

Turn Signal Lens Assy

$

$

Not available

15

Husqvarna 603000381

Mounting Bracket

$

$

Not available

16

Husqvarna 603000382

Retainer, Headlight

$

$

Not available

17

Husqvarna 603000625

Connector Harness Assembly, Headlight

$

$

Not available

18

Husqvarna 603000628

Bulb, Headlight

$

$

Not available

19

Husqvarna 603000629

Lens, Headlight

$

$

Not available

20

Husqvarna 603000084

Nut, #10-32 Hex

$

$

Not available
