HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Front Suspension, Lower - Vehicles With Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle

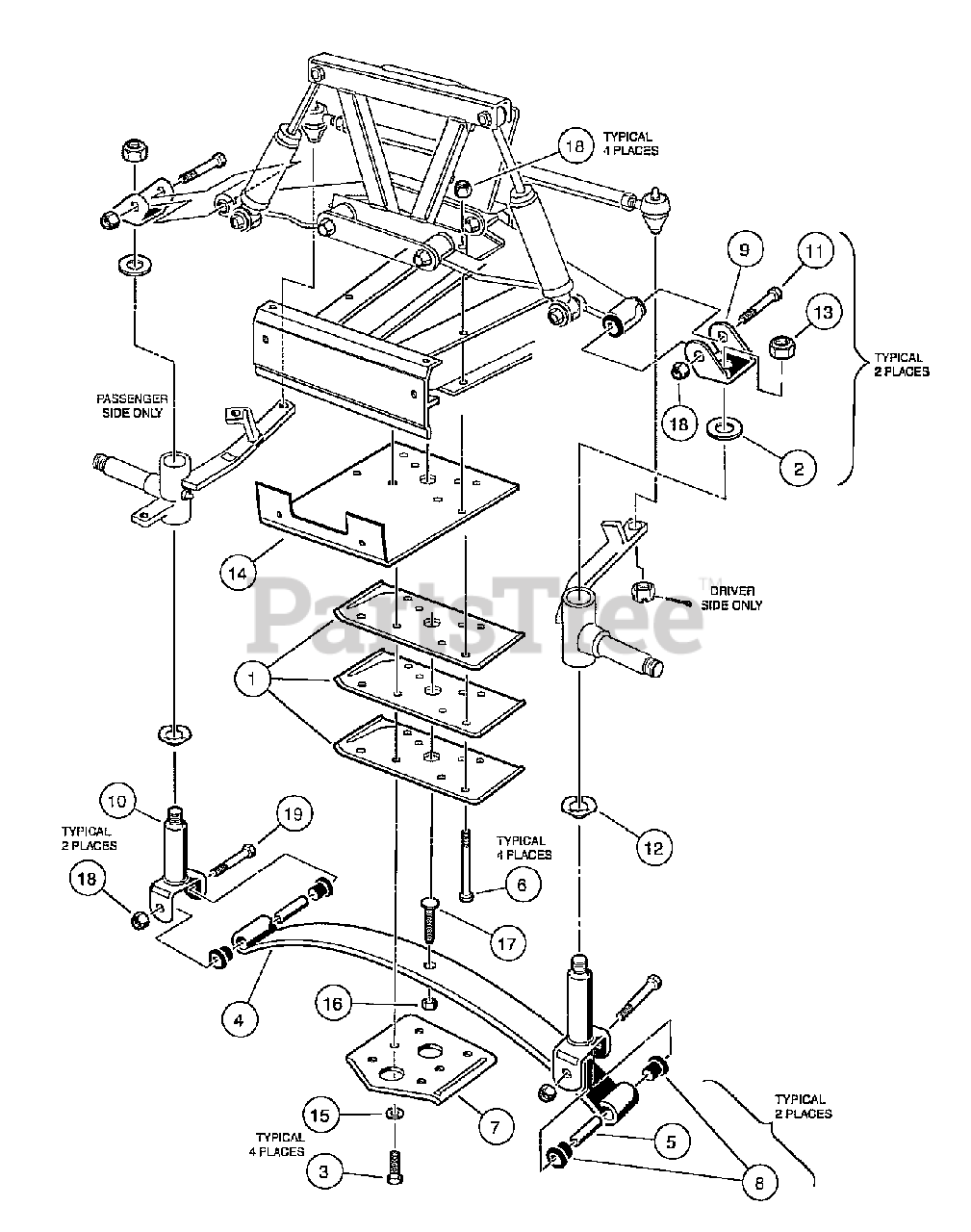

Front Suspension, Lower - Vehicles With Two-Wheel Brakes Parts Diagram

  • Title

1

Husqvarna 603002024

Plate, Spring Mount
(Superseded to 603003034)

$

$

Not available

2

Husqvarna 603000105

Bearing, Thrust

$

$

Not available

3

Husqvarna 603002025

Bolt, 3/8-16 X 2.00 Hex Head
(Superseded to 603003035)

$

$

Not available

4

Husqvarna 603002043

Spring, Front Leaf
(Superseded to 603003049)

$

$

Not available

5

Husqvarna 603000136

Bushing, Steel

$

$

Not available

6

Husqvarna 603002058

Screw, 3/8-16 X 5.00 Hex-Head Cap

$

$

Not available

7

Husqvarna 603002075

Plate, Front Spring Retainer
(Superseded to 603003075)

$

$

Not available

8

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

9

Husqvarna 603002094

Clevis, Delta Upper
(Superseded to 603003090)

$

$

Not available

10

Husqvarna 603002096

King Pin Assembly
(Superseded to 603003092)

$

$

Not available

11

Husqvarna 603000291

Screw, 3/8-16 X 2.75 Hx Hd Cap

$

$

Not available

12

Husqvarna 603000292

Washer, 1.125 Od Wave

$

$

Not available

13

Husqvarna 603000578

Locknut, 1/2-20 Nylon Insert

$

$

Not available

14

Husqvarna 603002333

Support, Brush Guard

$

$

Not available

15

Husqvarna 603000056

Washer, 3/8 Split Lock

$

$

Not available

16

Husqvarna 603002344

Nut, 3/8-16 Hex
(Superseded to 603003305)

$

$

Not available

17

Husqvarna 603002350

Screw, Eccentric Adjustment
(Superseded to 603003310)

$

$

Not available

18

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

19

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available
