HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Front Body Parts Diagram

4x2 Utility Vehicle

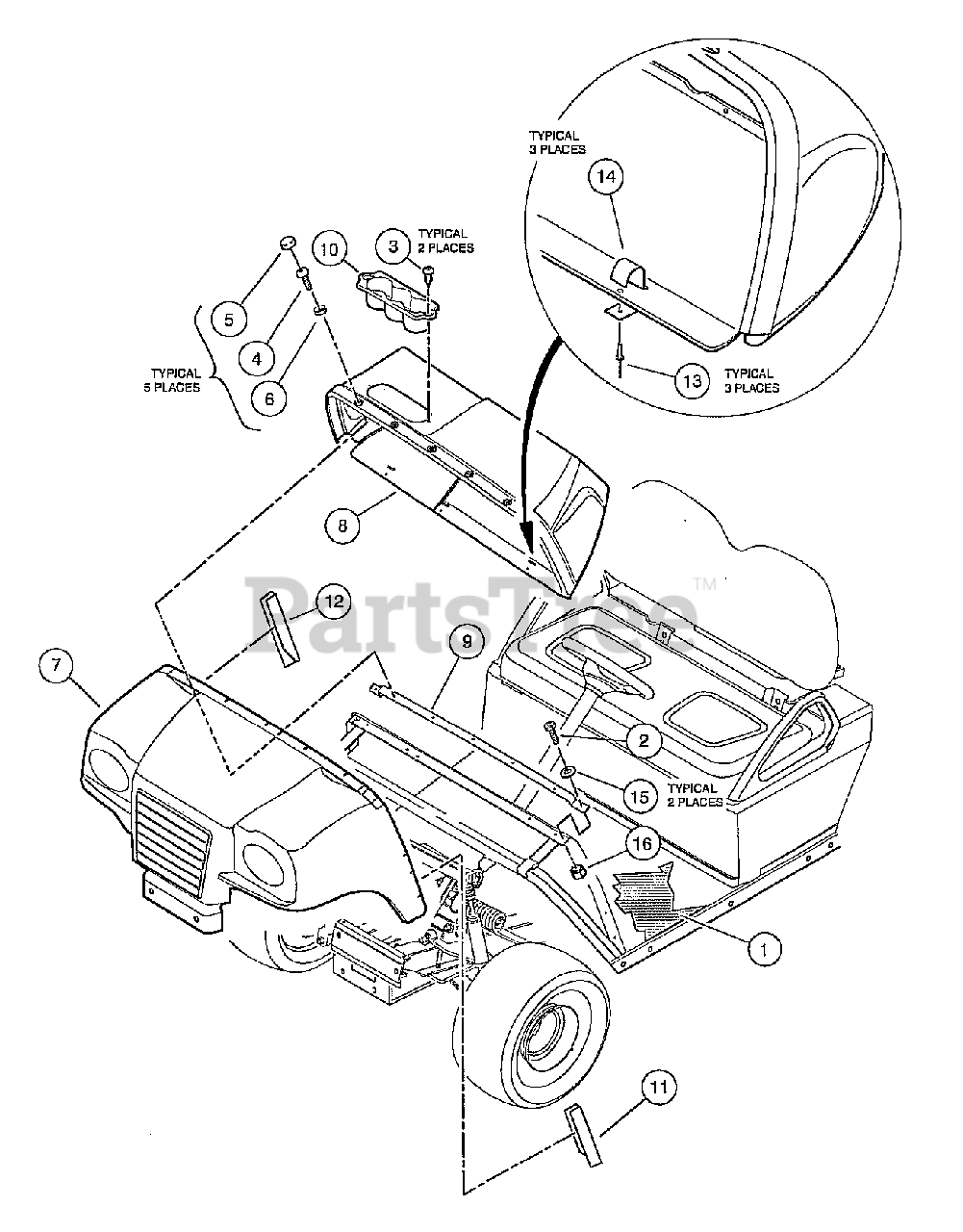

Front Body Parts Diagram

  • Title

1

Husqvarna 603002082

Floormat
(Superseded to 603003081)

$

$

Not available

2

Husqvarna 603002248

Screw, 1/4-20 X 0.75 Hex-Head
(Superseded to 603003240)

$

$

Not available

3

Husqvarna 603000695

Screw, Tuflok Panel, 1/4

$

$

Not available

4

Husqvarna 603000696

Screw, 1/4-20 X .75 Torx Pn Hd

$

$

Not available

5

Husqvarna 603000729

Cap, 1/4" Plastic Screw Head

$

$

Not available

6

Husqvarna 603000737

Washer, 1/4 ID Scalloped Plastic

$

$

Not available

7

Husqvarna 603002288

Cowl, Orange

$

$

Not available

8

Husqvarna 603002289

Dash

$

$

Not available

9

Husqvarna 603002293

Support, Upper Cowl

$

$

Not available

10

Husqvarna 603002307

Object Holder

$

$

Not available

11

Husqvarna 603002323

Cowl Cover, Driver-Side

$

$

Not available

12

Husqvarna 603002324

Cowl Cover, Passenger-Side

$

$

Not available

13

Husqvarna 603002328

Rivet
(Superseded to 603003296)

$

$

Not available

14

Husqvarna 603002368

Clip, Dash

$

$

Not available

15

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

16

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available
