HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE350 Engine - Shrouds And Brackets Parts Diagram

4x2 Utility Vehicle

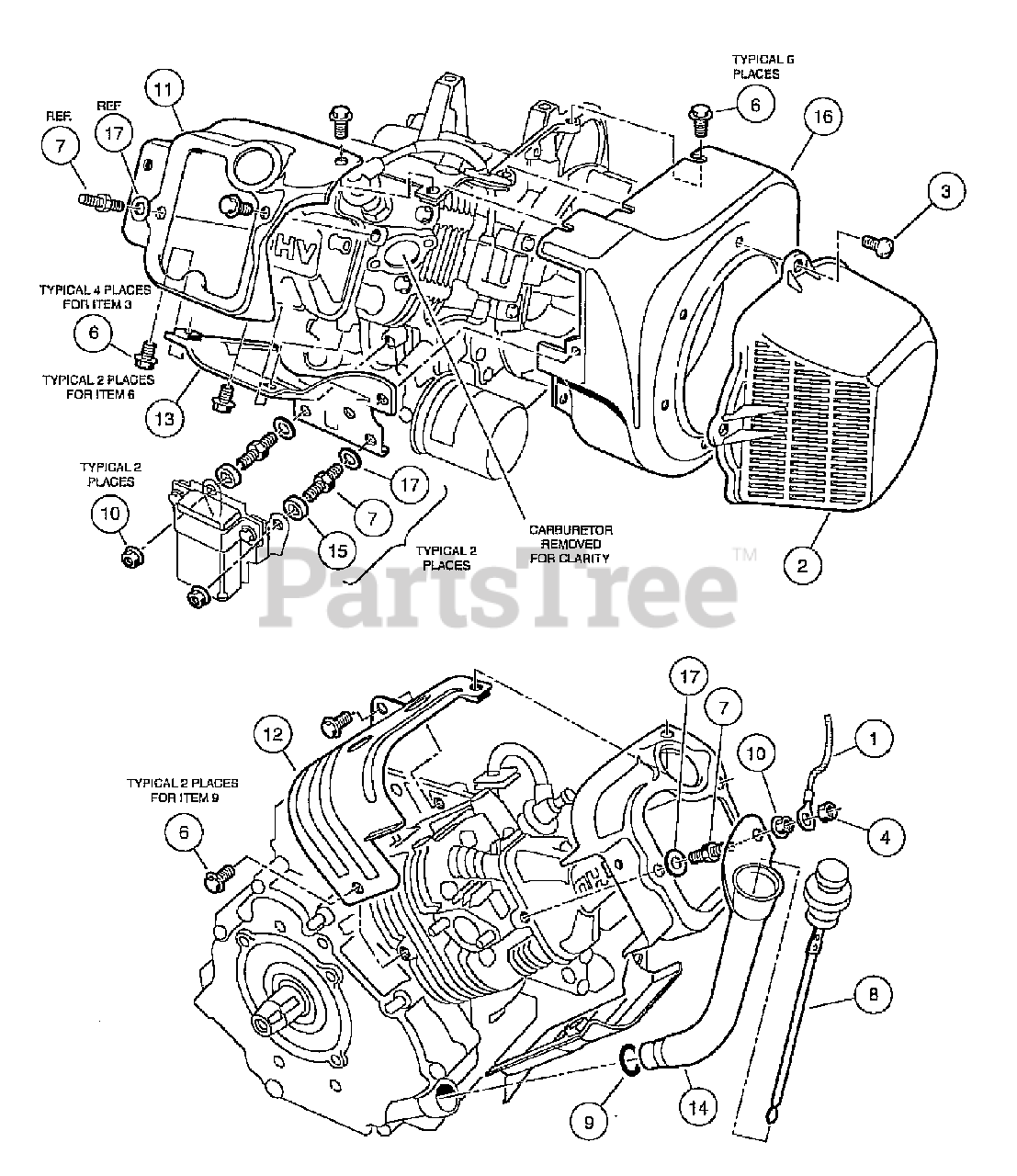

FE350 Engine - Shrouds And Brackets Parts Diagram

  • Title

1

Husqvarna 603000247

Wire Assembly, #10, Uninsulated

$

$

Not available

2

Husqvarna 603000265

Shroud, Fan

$

$

Not available

3

Husqvarna 603000274

Screw, M6-1.00 X 10mm Pan Hd

$

$

Not available

4

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

5

Husqvarna 603002246

Engine, Fe350 Cw W/o Comp.rel
(Superseded to 603003238)

Note: (Includes items 6 through 17)

$

$

Not available

6

Husqvarna 603000309

Bolt, Flange Head, M6 x 1 x 12 mm

$

$

Not available

7

Husqvarna 603000328

Bolt, Two-Ended

$

$

Not available

8

Husqvarna 603000333

Dipstick

$

$

Not available

9

Husqvarna 603000337

O-Ring

$

$

Not available

10

Husqvarna 603000341

Nut

$

$

Not available

11

Husqvarna 603000414

Shroud, Engine

$

$

Not available

12

Husqvarna 603000415

Shroud, Engine

$

$

Not available

13

Husqvarna 603000416

Shroud, Engine

$

$

Not available

14

Husqvarna 603000417

Tube, Oil Filler

$

$

Not available

15

Husqvarna 603000420

Spacer 6.50 X 12 X 5.5

$

$

Not available

16

Husqvarna 603002236

Housing, FE350 Fan
(Superseded to 603003230)

$

$

Not available

17

Husqvarna N/A

Washer, 6mm Flat

$

$

Not available
