HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Cylinder Head Parts Diagram

4x2 Utility Vehicle

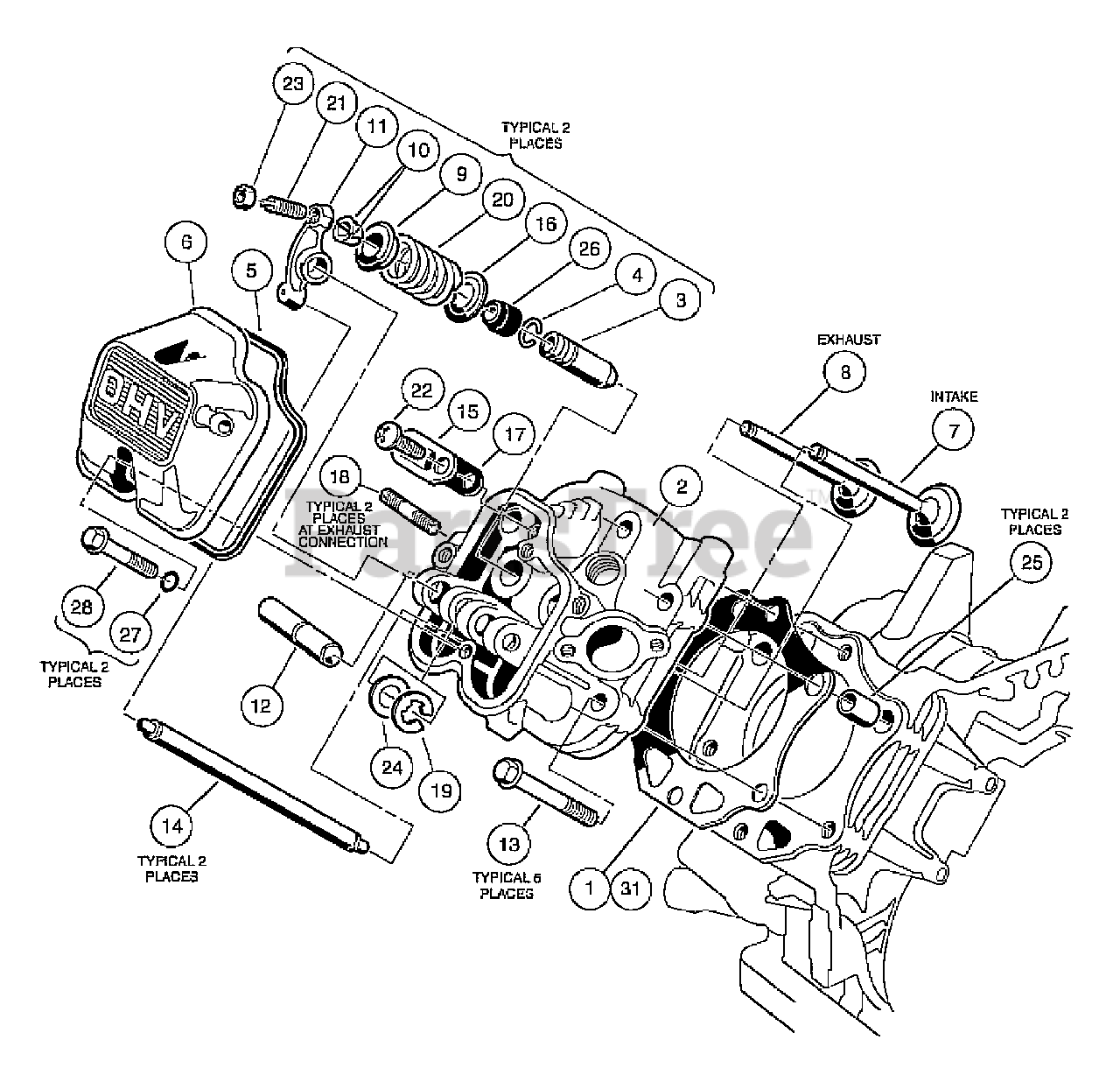

FE290 Engine - Cylinder Head Parts Diagram

  • Title
1

Husqvarna 603002101

Gasket, Head, FE290
(Superseded to 603003097)

$

$

Not available

2

Husqvarna 603002102

Head Assembly, FE290 Cylinder
(Superseded to 603003098)

Note: (includes items 3 and 4)

$

$

Not available

3

Husqvarna 603000331

Guide, Valve, Intake

$

$

Not available

4

$

$

Not available

5

Husqvarna 603000296

Gasket, Rocker Case

$

$

Not available

6

Husqvarna 603000301

Case, Rocker

$

$

Not available

7

Husqvarna 603002107

Valve, Intake
(Superseded to 603003103)

$

$

Not available

8

Husqvarna 603002108

Valve, Exhaust
(Superseded to 603003104)

$

$

Not available

9

Husqvarna 603000304

Retainer, Valve Spring

$

$

Not available

$

$

Not available

11

Husqvarna 603002109

Arm, Rocker
(Superseded to 603003105)

$

$

Not available

12

Husqvarna 603000306

Shaft, Rocker

$

$

Not available

13

Husqvarna 603000311

Bolt, Flange Head, M8 x 1.25 x 45 mm

$

$

Not available

14

Husqvarna 603002119

Rod, Push
(Superseded to 603003115)

$

$

Not available

$

$

Not available

16

Husqvarna 603000316

Seat, Spring

$

$

Not available

$

$

Not available

18

Husqvarna 603000320

Stud, Two-Ended, M8-1.25

$

$

Not available

19

Husqvarna 603000330

Circlip, Type-E

$

$

Not available

20

Husqvarna 603002130

Spring, Engine Valve
(Superseded to 603003126)

$

$

Not available

21

Husqvarna 603002137

Screw
(Superseded to 603003133)

$

$

Not available

$

$

Not available

23

Husqvarna 603002138

Nut
(Superseded to 603003134)

$

$

Not available

24

Husqvarna 603000342

Washer, 12.1x19x1.B

$

$

Not available

$

$

Not available

26

$

$

Not available

$

$

Not available

28

Husqvarna 603000359

Bolt, 6x35

$

$

Not available

29

Husqvarna 603002266

Gasket Kit, Fe290
(Superseded to 603003255)

Note: (includes items 30 through 33)

$

$

Not available

30

Husqvarna 603002084

Gasket, Exhaust
(Superseded to 603003083)

$

$

Not available

31

Husqvarna 603002101

Gasket, Head, FE290
(Superseded to 603003097)

$

$

Not available

32

Husqvarna 603000299

Gasket, Engine To Insulator

$

$

Not available

33

Husqvarna 603002106

Gasket, Crankcase Cover
(Superseded to 603003102)

$

$

Not available
