HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Crankcase, Camshaft And Oil Sensor Parts Diagram

4x2 Utility Vehicle

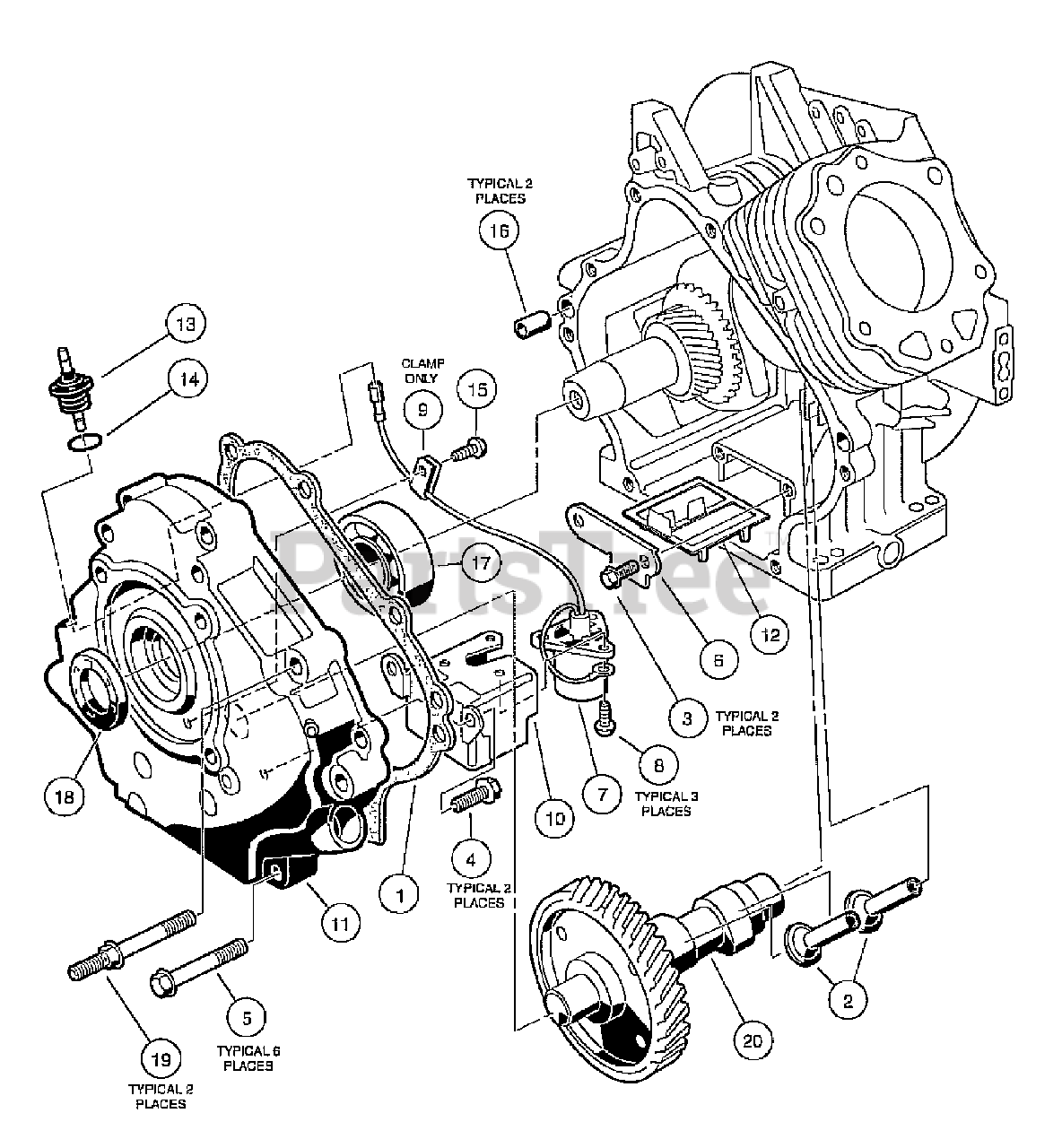

FE290 Engine - Crankcase, Camshaft And Oil Sensor Parts Diagram

  • Title

1

Husqvarna 603002106

Gasket, Crankcase Cover
(Superseded to 603003102)

$

$

Not available

2

Husqvarna 603002110

Tappet
(Superseded to 603003106)

$

$

Not available

3

Husqvarna 603000307

Bolt, Flange Head, M5 x 0.8 x 8 mm

$

$

Not available

4

Husqvarna 603000309

Bolt, Flange Head, M6 x 1 x 12 mm

$

$

Not available

5

Husqvarna 603000311

Bolt, Flange Head, MB x 1.25 x 45 mm

$

$

Not available

6

Husqvarna 603000313

Plate, Oil Filter Screen

$

$

Not available

7

Husqvarna 603000321

Sensor, Oil Level

$

$

Not available

8

Husqvarna 603000322

Screw, Cross Pan-Head, M4 x 0.7 x 8 mm

$

$

Not available

9

Husqvarna 603000327

Clamp

$

$

Not available

10

Husqvarna 603002126

Bracket, Switch, Oil Level
(Superseded to 603003122)

$

$

Not available

11

Husqvarna 603002129

Cover, Crankcase
(Superseded to 603003125)

$

$

Not available

12

Husqvarna 603000332

Screen, Oil Filter

$

$

Not available

13

Husqvarna 603000334

Connector, Cord

$

$

Not available

14

Husqvarna 603000336

O-Ring

$

$

Not available

15

Husqvarna 603000339

Screw

$

$

Not available

16

Husqvarna 603000347

Pin

$

$

Not available

17

Husqvarna 603002151

Bearing, Ball
(Superseded to 603003147)

$

$

Not available

18

Husqvarna 603002152

Seal, Crank Shaft
(Superseded to 603003148)

$

$

Not available

19

Husqvarna 603000360

Bolt, Two-Ended, M8 x 1.25 x 69 mm

$

$

Not available

20

Husqvarna 603002230

Camshaft Complete, FE290
(Superseded to 603003224)

$

$

Not available
