HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Driven Clutch Parts Diagram

4x2 Utility Vehicle

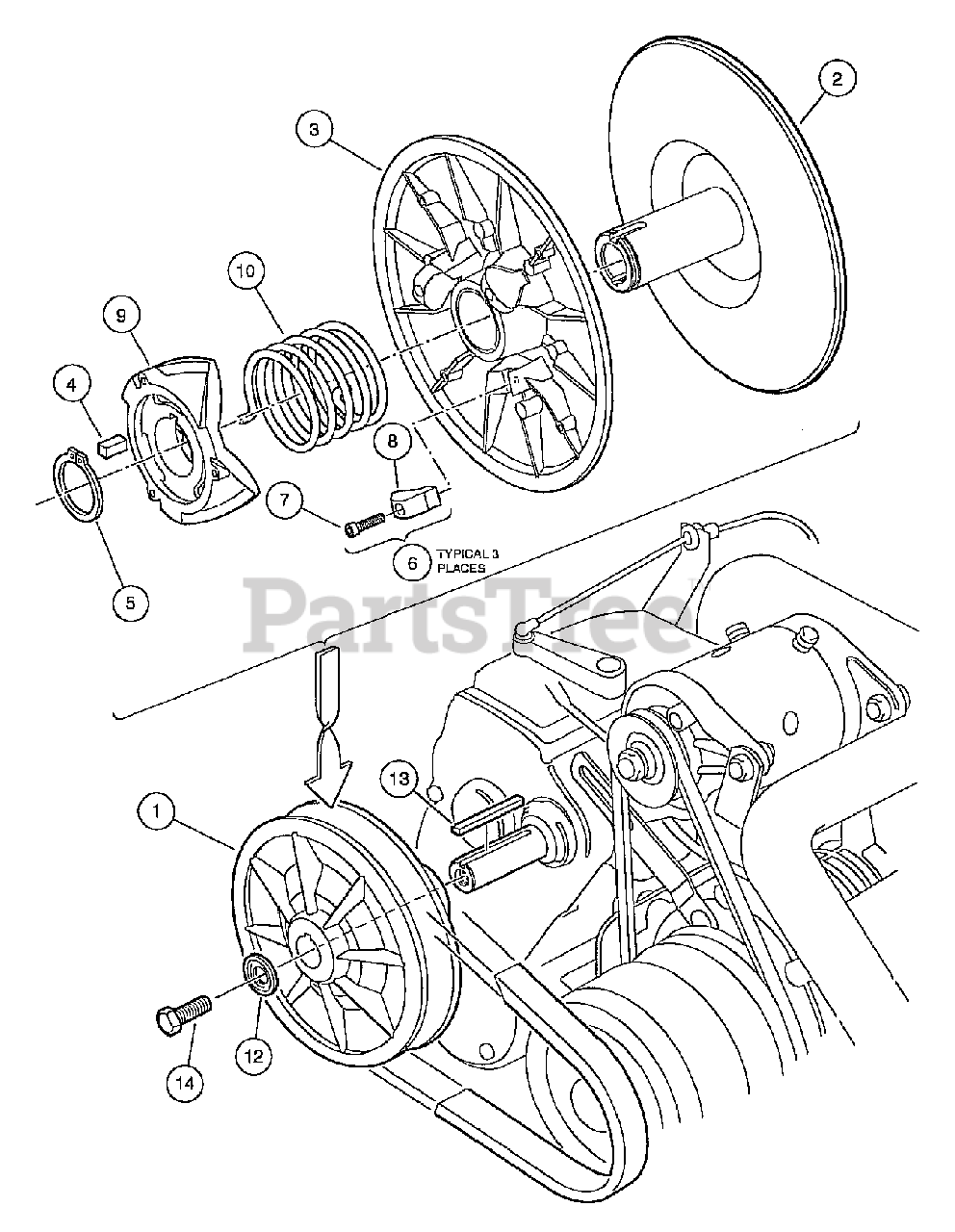

Driven Clutch Parts Diagram

  • Title

1

Husqvarna 603000518

Assembly, Driven Clutch

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 603000205

Fixed Face Assy, Driven Clutch

$

$

Not available

3

Husqvarna 603000206

Movable-Face Assembly with Bushing

$

$

Not available

4

Husqvarna 603000207

Key, Driven Clutch

$

$

Not available

5

Husqvarna 603000208

Ring, Retaining

$

$

Not available

6

Husqvarna 60300022B

Kit, Driven Clutch Button

Note: (includes items 7 and 8)

$

$

Currently unavailable

7

Husqvarna 603002049

Screw, #8-32 X 3/4 Soc Hd Cap
(Superseded to 603003055)

$

$

Not available

8

Husqvarna 603002066

Button, Drive

$

$

Not available

9

Husqvarna 603000430

Cam, Driven Clutch

$

$

Not available

10

Husqvarna 603000522

Spring, Driven Clutch Reversed

$17.99

$

In Stock, only 1 left!

0

11

Husqvarna 603001801

Kit, Clutch Repair

Note: (includes items 12 through 14)

$

$

Not available

12

Husqvarna 603000391

Washer, Driven Clutch Belleville

$

$

Not available

13

Husqvarna 603000515

Key, 3/16 Sq X 1.50"

$

$

Not available

14

Husqvarna 603000817

Screw, 5/16-18x3/4 Hx Hd W/ptc

$

$

Not available
