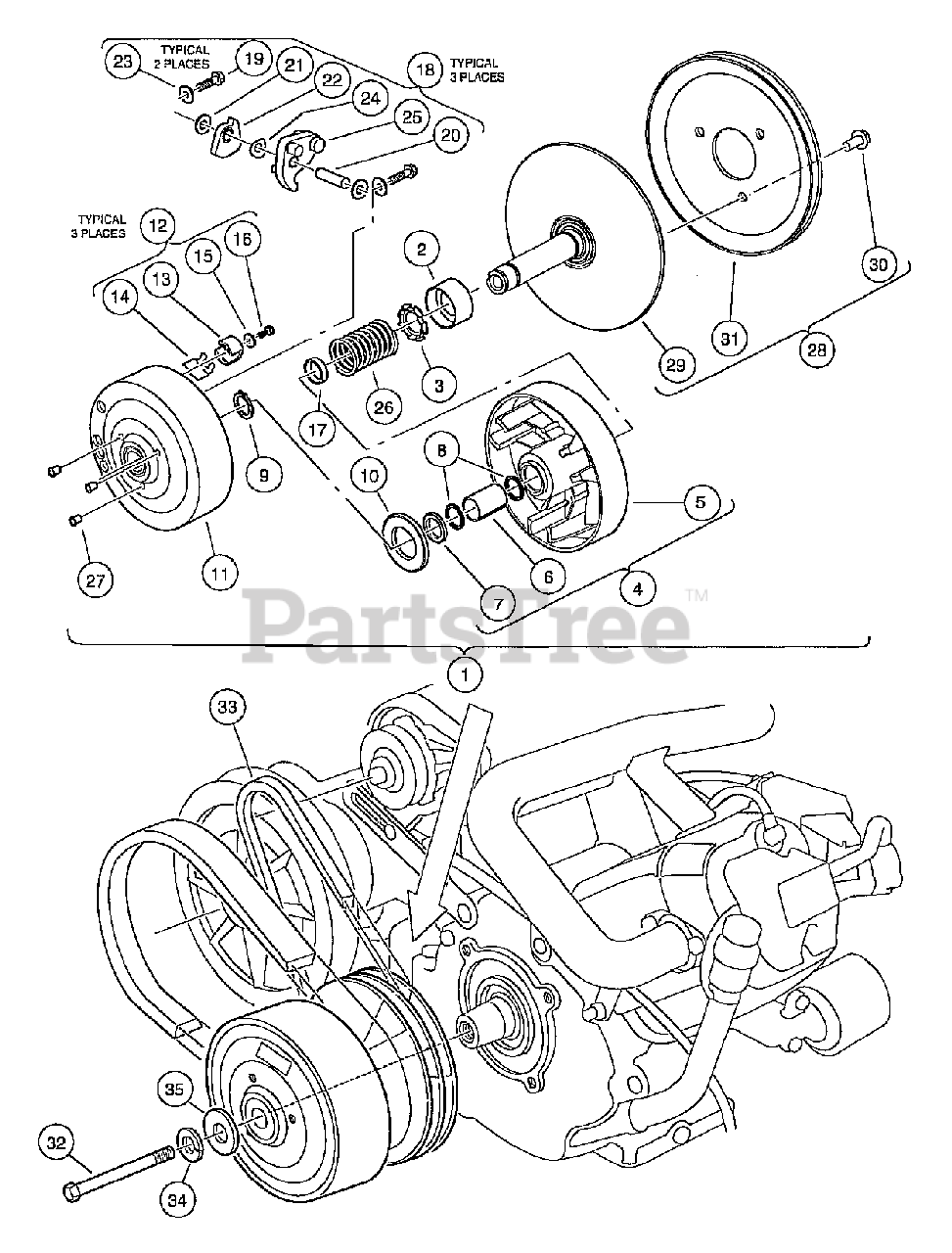

HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Drive Clutch Parts Diagram

4x2 Utility Vehicle

Drive Clutch Parts Diagram

  • Title

1

Husqvarna 603002360

Drive Clutch Assy. Fe 350/272

Note: (includes items 2 through 28)

$

$

Not available

2

Husqvarna 603000195

Bearing, Idler

$

$

Not available

3

Husqvarna 603000196

Retainer, Spring

$

$

Not available

4

Husqvarna 603000197

Movable-Face Assembly

Note: (includes items 5 through 7)

$

$

Not available

5

Husqvarna N/A

Drive Clutch Movable Face

$

$

Not available

6

Husqvarna N/A

Bushing, Split

$

$

Not available

7

Husqvarna 603000198

Retainer

$

$

Not available

8

Husqvarna 603000199

Ring, Spiral Backup

$

$

Not available

9

Husqvarna 603000200

Ring, 0.810" Internal Retaining

$

$

Not available

10

Husqvarna 603000201

Washer, Thrust

$

$

Not available

11

Husqvarna 603000202

Drive Hub Assy, Drive Clutch

$

$

Not available

12

Husqvarna 603000227

Kit, Drive Clutch Button

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603000203

Driver, Drive Clutch

$

$

Not available

14

Husqvarna 603000219

Spring, Drive Button

$

$

Not available

15

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

16

Husqvarna 603000092

Screw, #10-24 X .50 Hex Head

$

$

Not available

17

Husqvarna 603000285

Spacer, Fixed Face Shaft

$

$

Not available

18

Husqvarna 603000369

Kit, Drive Clutch Weight

Note: (includes items 19 through 25)

$

$

Not available

19

Husqvarna 603002064

Screw, 1/4-20 X 1.00 Hex Head
(Superseded to 603003068)

$

$

Not available

20

Husqvarna 603002065

Pin, 0.3752 X 1.50 Dowel

$

$

Currently unavailable

21

Husqvarna 603000204

Washer, 0.38" Id Delrin Flat

$

$

Not available

22

Husqvarna 603002067

Clutch Weight, Secondary

$

$

Currently unavailable

23

Husqvarna 603002079

Washer

$

$

Currently unavailable

24

Husqvarna 603000282

Washer, Wave

$

$

Not available

25

Husqvarna 603002090

Weight, Primary

$

$

Currently unavailable

26

Husqvarna 603002156

Spring, Drive Clutch
(Superseded to 603003152)

$

$

Not available

27

Husqvarna N/A

Cap Plug

$

$

Not available

28

Husqvarna 603002361

Assembly, Fixed-Face Drive

Note: (Includes items 29 through 31)

$

$

Not available

29

Husqvarna N/A

Fixed Face Assembly, Drive Clutch

$

$

Not available

30

Husqvarna 603000220

Screw, 5/16-18 X 0.75 Thread-Forming

$

$

Not available

31

Husqvarna N/A

Pulley, Clutch

$

$

Not available

32

Husqvarna 603000588

Screw, 3/8-24 X 5.50 Hex Head
(Superseded to 603004380)

$

$

Not available

33

Husqvarna 603000589

V-Belt

$

$

Not available

34

Husqvarna 603000056

Washer, 3/8 Split Lock

$

$

Not available

35

Husqvarna 603000060

Washer, 3/8 Type B Flat
(Superseded to 603003617)

$

$

Not available
