HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Cargo Bed Parts Diagram

4x2 Utility Vehicle

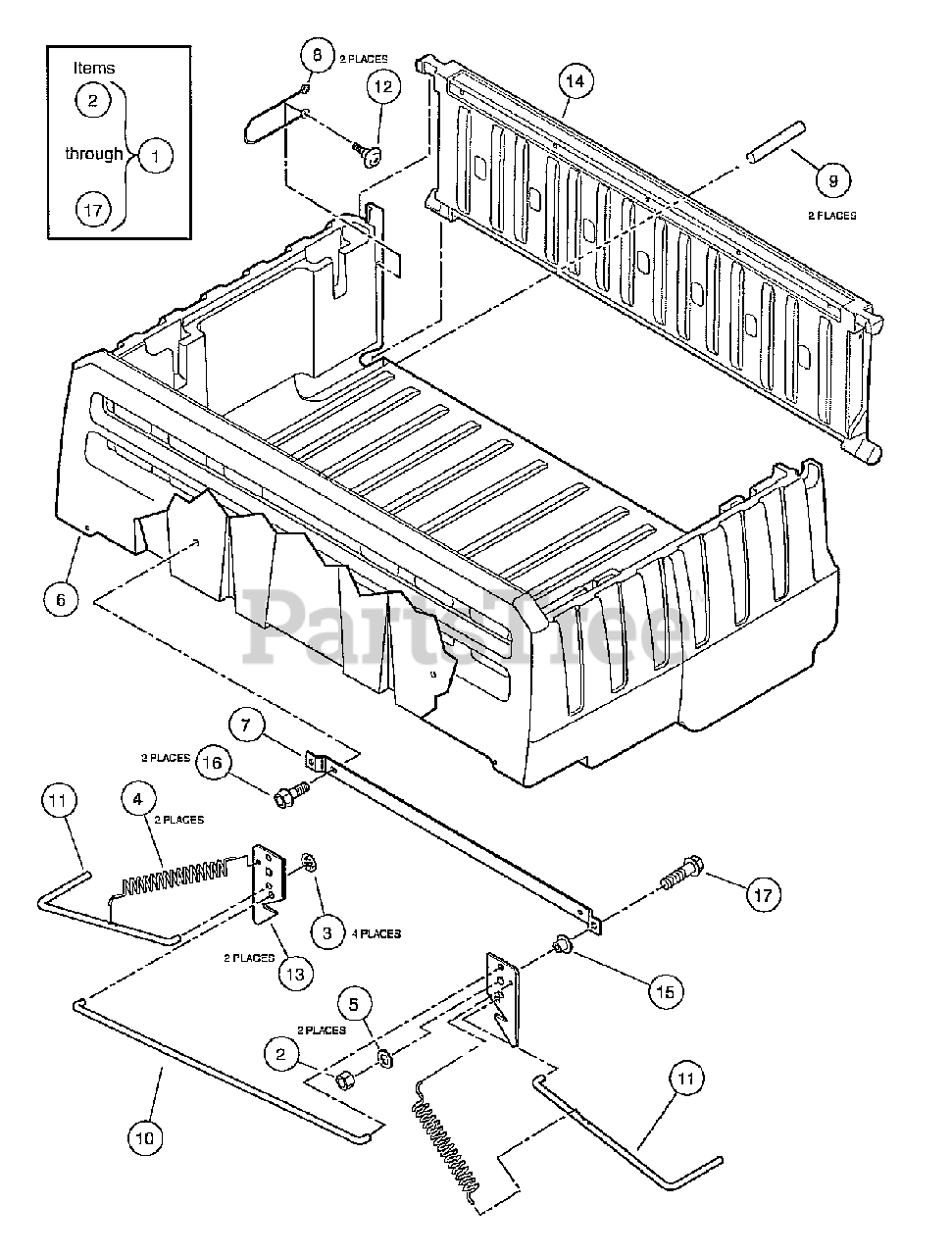

Cargo Bed Parts Diagram

  • Title

1

Husqvarna 603002290

Assembly, Bed

Note: (includes items 2 through 17)

$

$

Not available

2

Husqvarna 603000101

Locknut, 3/8-16 Dimpled

$

$

Not available

3

Husqvarna 603002062

Pushnut, 3/8
(Superseded to 603003066)

$

$

Not available

4

Husqvarna 603000254

Extension, Spring Latch

$

$

Not available

5

Husqvarna 603002160

Washer, 3/8 Flat Type A

$

$

Currently unavailable

6

Husqvarna 603002294

Bed, Cargo

$

$

Currently unavailable

7

Husqvarna 603002295

Support, Latch Link

$

$

Currently unavailable

8

Husqvarna 603002296

Cable

$

$

Not available

9

Husqvarna 603002297

Pin

$

$

Currently unavailable

10

Husqvarna 603002298

Rod, Long Link

$

$

Currently unavailable

11

Husqvarna 603002299

Rod, Bed Lift, Short Bent

$

$

Currently unavailable

12

Husqvarna 603002300

Bolt

$

$

Not available

13

Husqvarna 603002301

Catch, Tilt Bed

$

$

Currently unavailable

14

Husqvarna 603002319

Tailgate
(Superseded to 531308266)

$

$

Not available

15

Husqvarna 603002335

Bearing, Bronze, 1/2 x 9/32

$

$

Currently unavailable

16

Husqvarna 603000052

Screw, 1/4-20 X 1.0 Hex Hd Cap

$

$

Not available

17

Husqvarna 603000053

Screw, 3/8-16 X 1.00 Hx Hd Cap

$

$

Not available
