HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Carburetor Assembly - FE290 Parts Diagram

4x2 Utility Vehicle

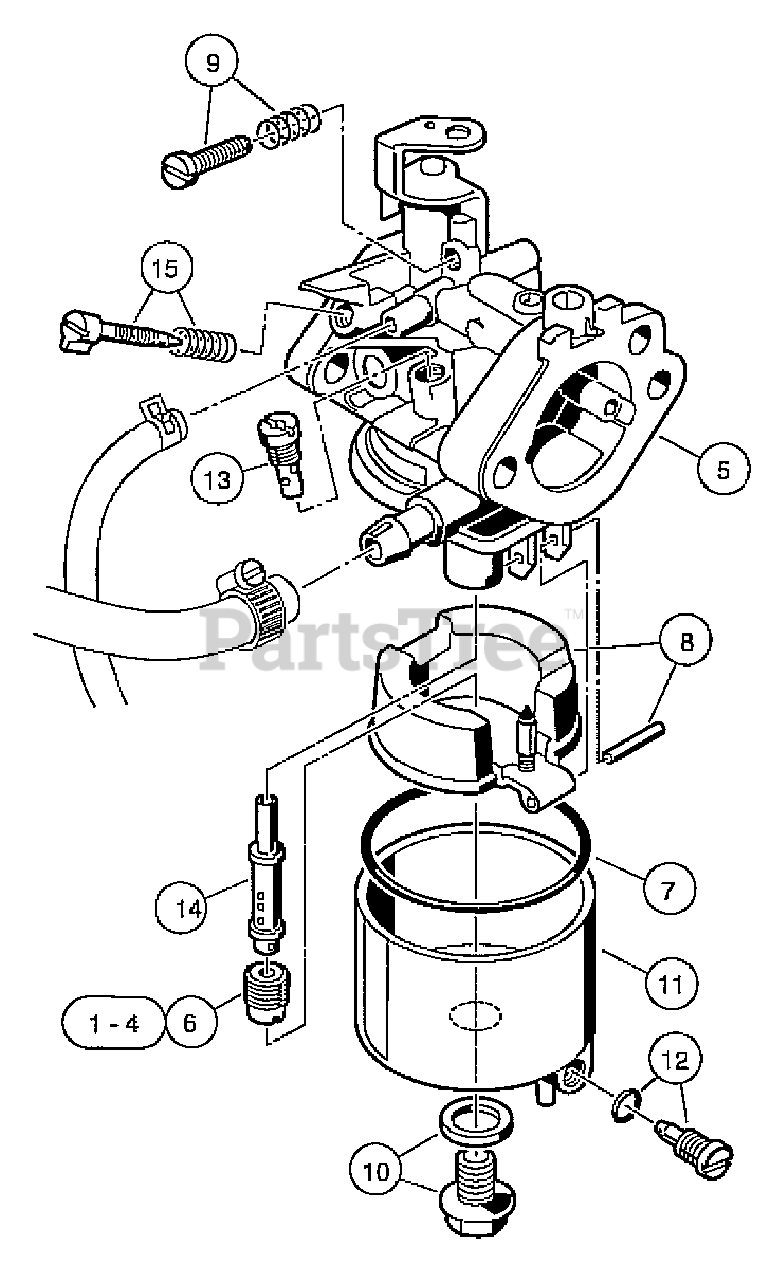

Carburetor Assembly - FE290 Parts Diagram

  • Title

1-4

Husqvarna 603002097

Jet, Altitude, # 72
(Superseded to 603003093)

$

$

Not available

1-4

Husqvarna 603002098

Jet, Altitude, # 75
(Superseded to 603003094)

$

$

Not available

1-4

Husqvarna 603002099

Jet, Altitude, # 78
(Superseded to 603003095)

$

$

Not available

1-4

Husqvarna 603002100

Jet, Altitude, # 80
(Superseded to 603003096)

$

$

Not available

5

Husqvarna 603002224

Carburetor Assembly, FE2900
(Superseded to 603003218)

Note: (includes Items 6 through 15)

$

$

Not available

6

Husqvarna 603000467

Jet, Altitude, # 82

$

$

Not available

7

Husqvarna 603000297

Gasket, Carburetor Bowl OHV

$

$

Not available

8

Husqvarna 603000319

Float Assembly

$

$

Not available

9

Husqvarna 603000325

Screw Assembly

$

$

Not available

10

Husqvarna 603000361

Bolt

$

$

Not available

11

Husqvarna 603000409

Chamber Assembly, Float

Note: (Includes item 12)

$

$

Not available

12

Husqvarna 603000324

Screw Assembly

$

$

Not available

13

Husqvarna 603002250

Jet, #40 Pilot
(Superseded to 603003242)

$

$

Not available

14

Husqvarna 603002251

Nozzle, Main
(Superseded to 603003243)

$

$

Not available

15

Husqvarna N/A

Assembly, Pilot Air Screw

$

$

Not available
