HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) REAR BODY & FENDER Parts Diagram

4x2 Utility Vehicle, Electric

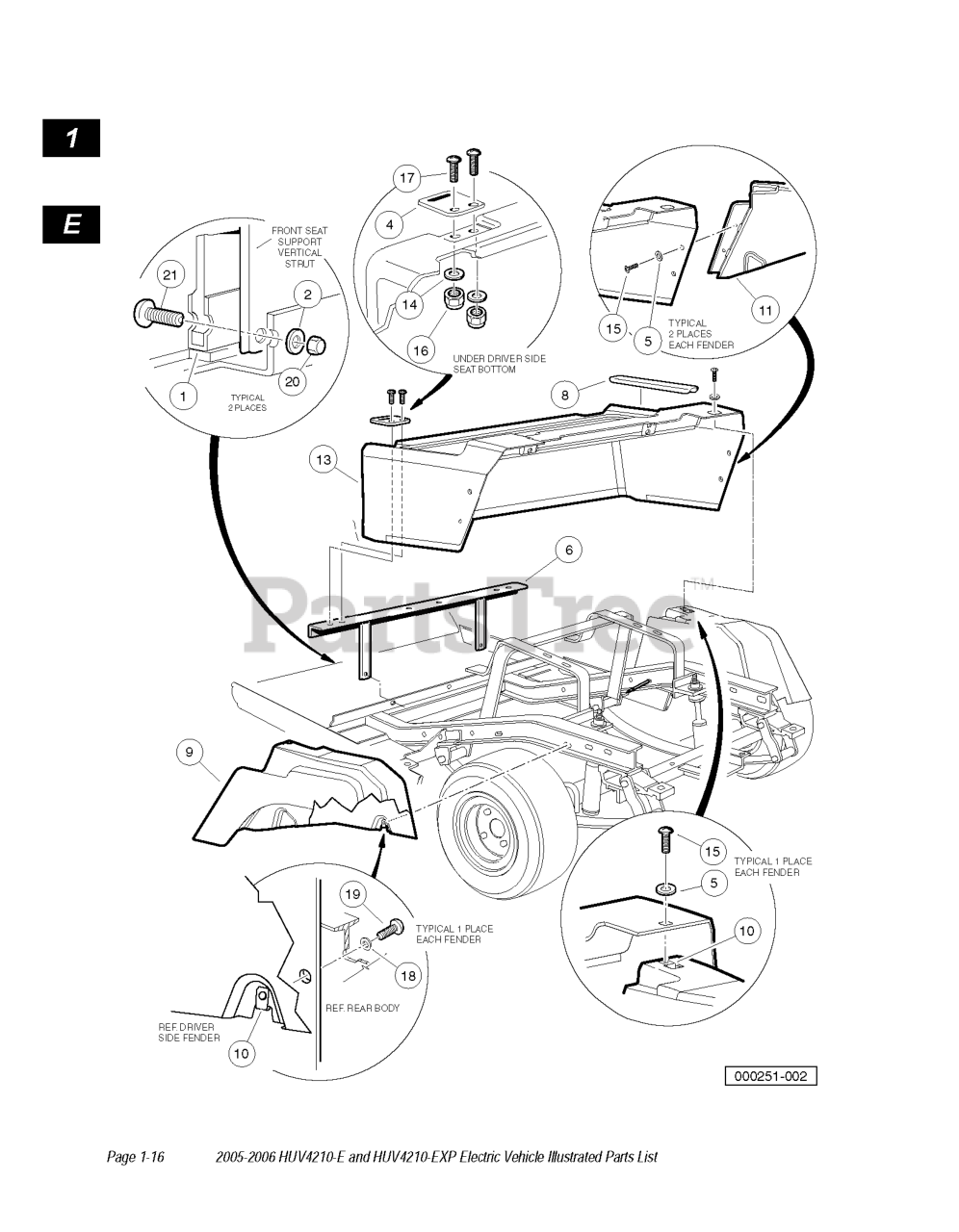

REAR BODY & FENDER Parts Diagram

  • Title

18

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

13

Husqvarna 603002949

BODY, REAR, ELECT, CUT, ORG

$

$

Not available

19

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

9

Husqvarna 603003275

FENDER ASM, BODY, DVR

$

$

Not available

12

Husqvarna 603003154

U-NUT, 1/4-20 PALNUT BRAND

$

$

Not available

14

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

15

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

2

Husqvarna 603000222

WASHER

$

$

Not available

11

Husqvarna 603002292

FENDER ASM, BODY, PASS

$

$

Not available

20

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

10

Husqvarna 603003154

U-NUT, 1/4-20 PALNUT BRAND

$

$

Not available

7

Husqvarna 603003195

CABLE RETAINER

Note: Not required for electric vehicles and is not illustrated.

$

$

Not available

16

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

8

Husqvarna 603003252

WEAR PAD

$

$

Not available

1

Husqvarna 603003629

BODY KICK PLATE

$

$

Not available

6

Husqvarna 603003156

BODY SUPPORT FRONT

$

$

Not available

5

Husqvarna 603000222

WASHER

$

$

Not available

4

Husqvarna 603000139

BODY, HINGE PLATE

$

$

Not available

17

Husqvarna 603000091

SCREW, 1/4-20 X 1.0 TRS HD MCH

$

$

Not available

21

Husqvarna 603000091

SCREW, 1/4-20 X 1.0 TRS HD MCH

$

$

Not available
