HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) PEDALS Parts Diagram

4x2 Utility Vehicle, Electric

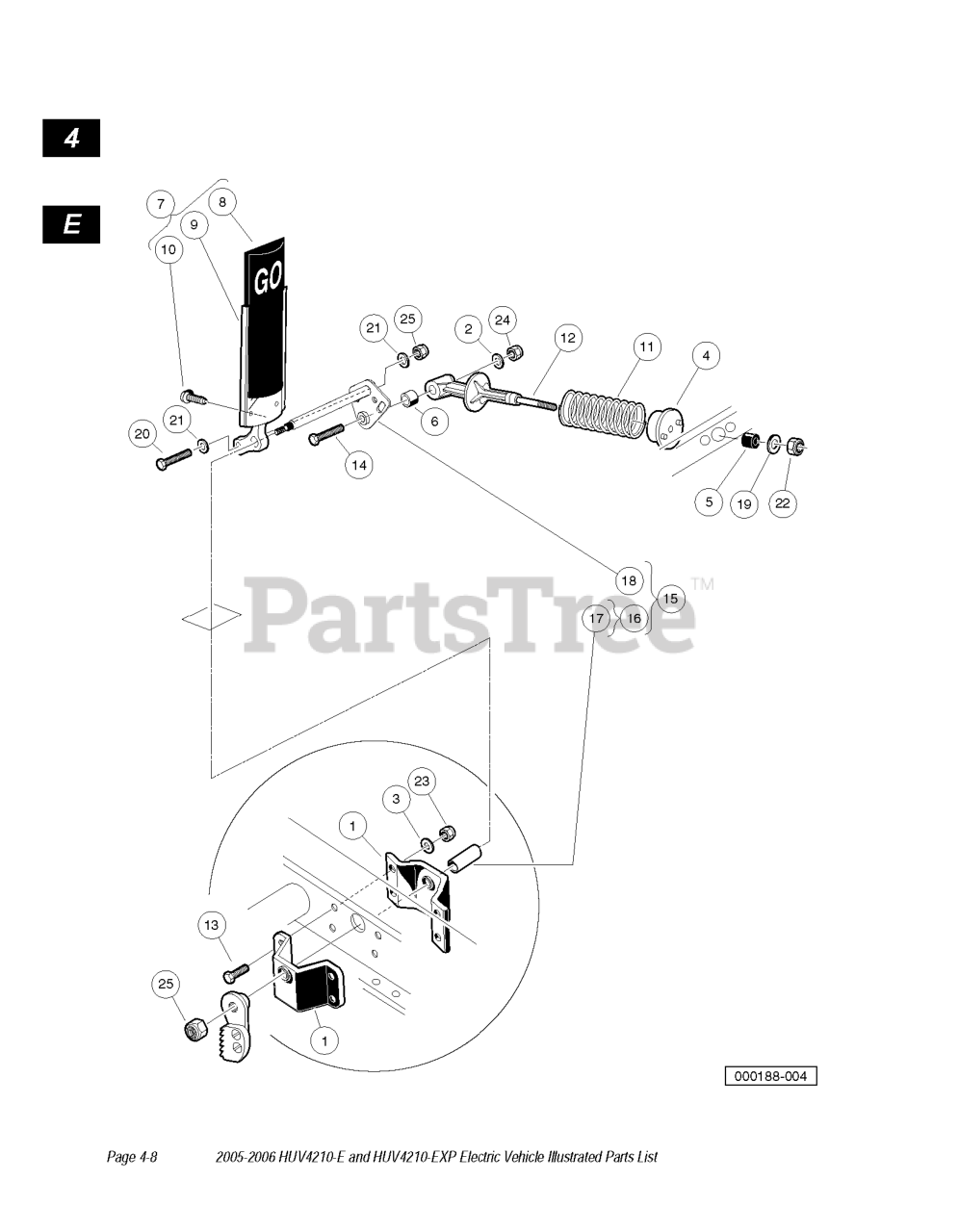

PEDALS Parts Diagram

  • Title

7

Husqvarna 603000432

SUB ASM, ACCELERATOR PEDAL

$

$

Not available

16

Husqvarna 603002238

SPACER ASSEMBLY

$

$

Not available

10

Husqvarna 603000081

SCREW TYPE AB SHT MTL

$

$

Not available

8

Husqvarna 603000192

PAD , ACCL PEDAL

$

$

Not available

6

Husqvarna 603000395

BEARING, PIVOT SUPPORT

$

$

Not available

22

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

12

Husqvarna 603000499

RETAINER, SPRING

$

$

Not available

2

Husqvarna 603003048

WASHER, 1/4 FLAT

$

$

Not available

24

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available

19

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

23

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

25

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

4

Husqvarna 603000392

CUP, SPRING

$

$

Not available

11

Husqvarna 603000490

SPRING, ACCELERATOR RETURN

$

$

Not available

21

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

3

Husqvarna 603000194

WASHER

$

$

Not available

15

Husqvarna 603000697

ACCEL. PIVOT ROD ASM. KIT

$

$

Not available

20

Husqvarna 603000068

SCREW, 3/8-16 X 1.5 HX HD CAP

$

$

Not available

13

Husqvarna 603000528

SCREW, 1/4-20 X 1.125 HEX CAP

$

$

Not available

5

Husqvarna 603000393

BUMPER, SPRING RETURN

$

$

Not available

1

Husqvarna 603000126

ACCEL BRKT & BEARING ASSY

$

$

Not available

14

Husqvarna 603003199

SCREW, 1/4-20 X 1.500 FLANGE

$

$

Not available
