HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) FRONT LOWER SUSPENSION Parts Diagram

4x2 Utility Vehicle, Electric

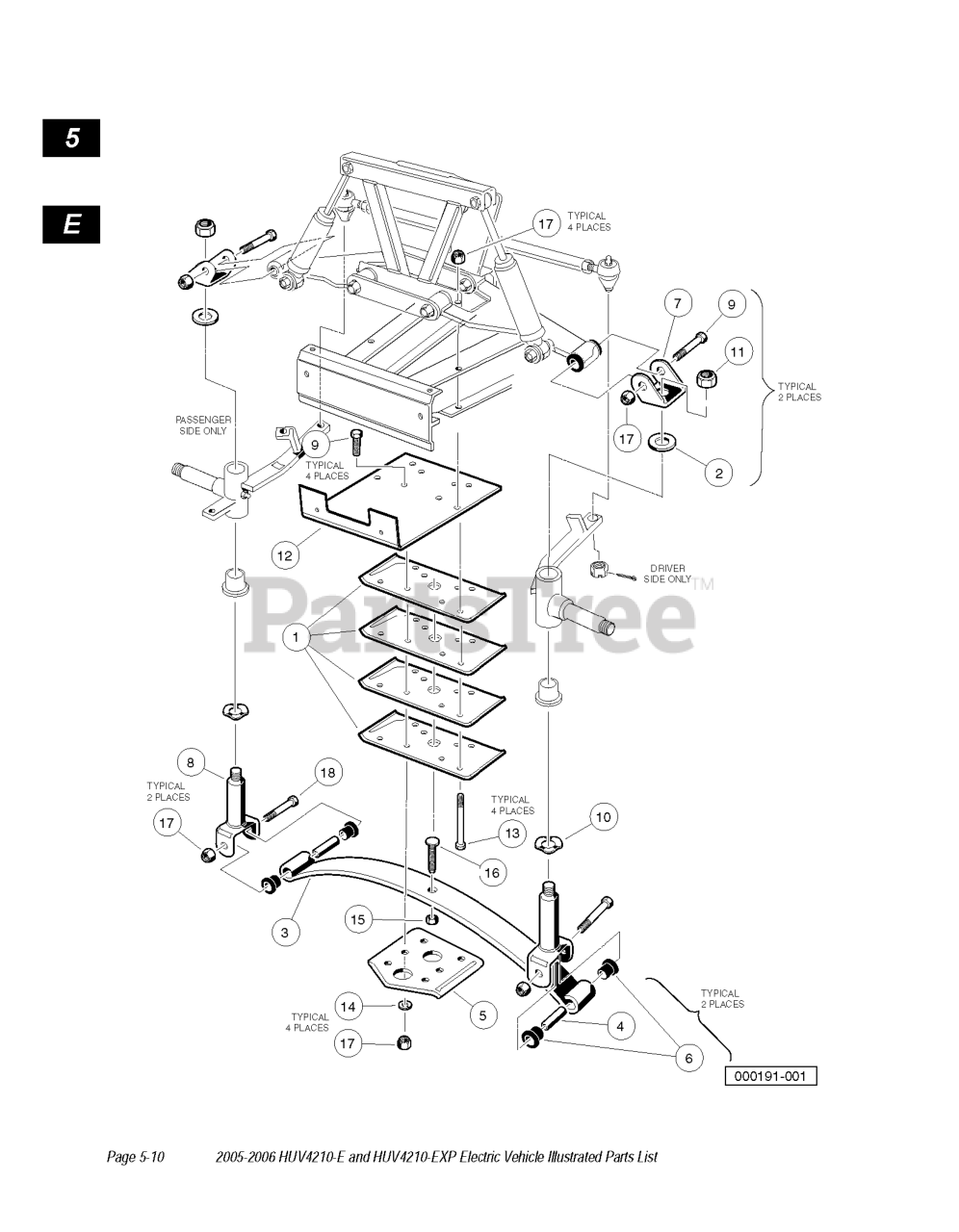

FRONT LOWER SUSPENSION Parts Diagram

  • Title

14

Husqvarna 603000056

WASHER,LOCK,HEL SP 3/8 REG

$

$

Not available

4

Husqvarna 603000136

BUSHING - STEEL (GAS CAR)

$

$

Not available

9

Husqvarna 603000291

SCREW, 3/8-16 X 2.75 HX HD CAP

$

$

Not available

10

Husqvarna 603000292

WASHER, 1.125 OD WAVE

$

$

Not available

16

Husqvarna 603003310

SCREW, ECCENTRIC ADJUSTMENT

$

$

Not available

12

Husqvarna 603003297

SUPPORT-BRUSH GUARD

$

$

Not available

5

Husqvarna 603003075

PLATE, FRONT SPRING RETAINER

$

$

Not available

7

Husqvarna 603003090

CLEVIS, DELTA UPPER

$

$

Not available

15

Husqvarna 603003305

NUT, HEX 3/8-16

$

$

Not available

8

Husqvarna 603003092

ASM, DELTA KINGPIN

$

$

Not available

17

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

13

Husqvarna 603002058

SCREW, 3/8-16 X 5.50 HX HD CAP

$

$

Not available

1

Husqvarna 603003034

PLATE, SPRING MOUNT

$

$

Not available

18

Husqvarna 603000096

SCREW, 3/8-16 X 3.375

$

$

Not available

2

Husqvarna 603000105

BEARING THRUST

$

$

Not available

11

Husqvarna 603000578

LOCKNUT, 1/2-20 NYLON INSERT

$

$

Not available

3

Husqvarna 603003049

SPRING, FRONT LEAF

$

$

Not available

6

Husqvarna 603000263

BUSHING, URETHANE

$

$

Not available
