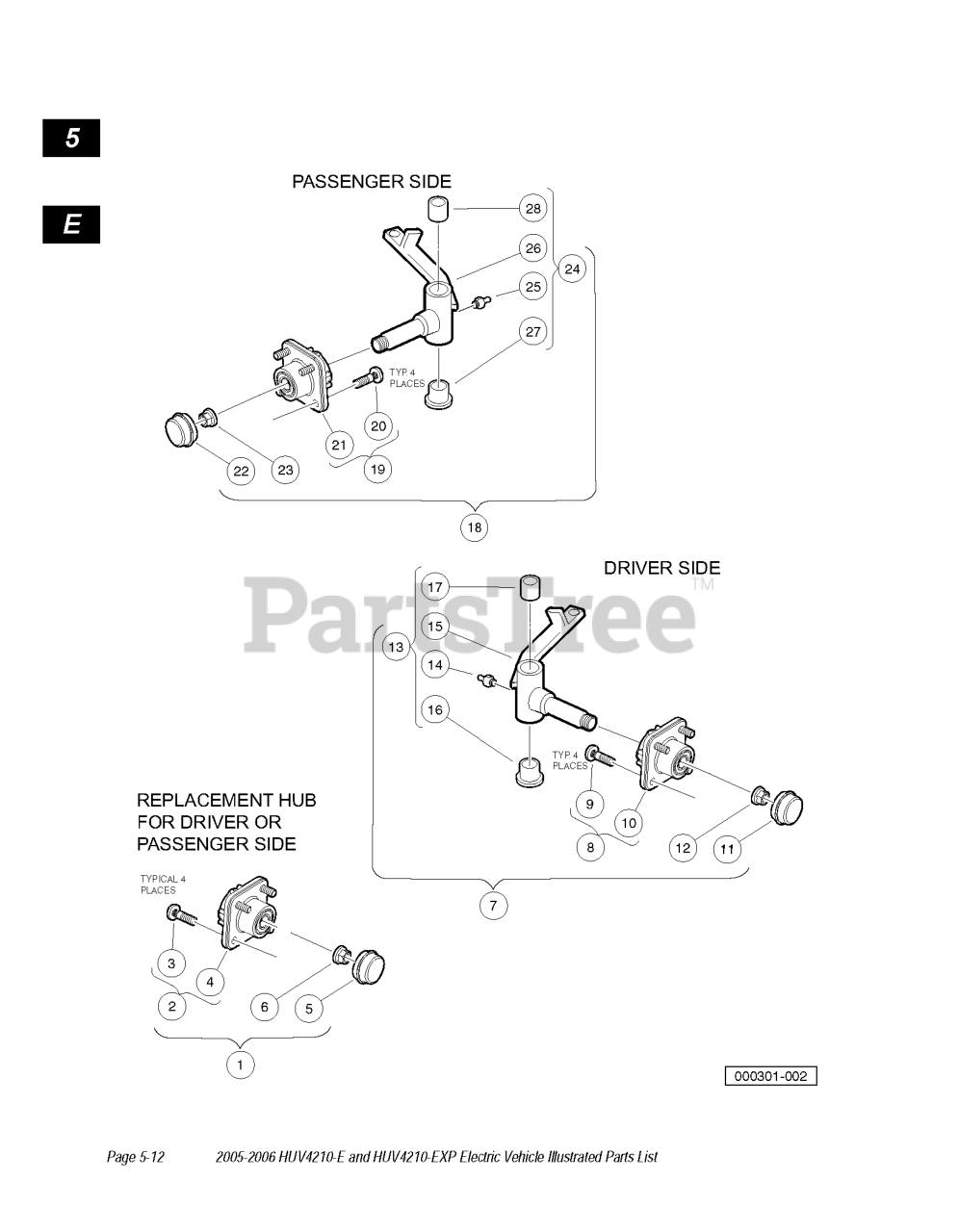

HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) FRONT HUB ASSEMBLY Parts Diagram

4x2 Utility Vehicle, Electric

FRONT HUB ASSEMBLY Parts Diagram

  • Title

5

Husqvarna 603003258

CAP, FRONT HUB

$

$

Not available

3

Husqvarna 603003260

LUG STUD, 1/2-20 UNF, 4037 STL

$

$

Not available

22

Husqvarna 603003258

CAP, FRONT HUB

$

$

Not available

15

Husqvarna 603002365

Subasm, Spindle, LH, Ext

$

$

Currently unavailable

26

Husqvarna 603002364

Subasm, Spindle, RH, Ext

$

$

Currently unavailable

24

Husqvarna 603002362

ASM, SPINDLE, RH, EXT

$

$

Not available

28

Husqvarna 603000088

BUSHING BRONZE SPINDLE

$

$

Not available

25

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 603003258

CAP, FRONT HUB

$

$

Not available

20

Husqvarna 603003260

LUG STUD, 1/2-20 UNF, 4037 STL

$

$

Not available

17

Husqvarna 603000088

BUSHING BRONZE SPINDLE

$

$

Not available

23

Husqvarna 603003259

HEX NUT, LOCKING FLANGE, M14X2

$

$

Not available

16

Husqvarna 603000070

BUSHING, FLANGED BROZE

$

$

Not available

6

Husqvarna 603003259

HEX NUT, LOCKING FLANGE, M14X2

$

$

Not available

9

Husqvarna 603003260

LUG STUD, 1/2-20 UNF, 4037 STL

$

$

Not available

12

Husqvarna 603003259

HEX NUT, LOCKING FLANGE, M14X2

$

$

Not available

14

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 603000070

BUSHING, FLANGED BROZE

$

$

Not available

1

Husqvarna 603002269

REPLACEMENT KIT, FRONT HUB

$

$

Not available

13

Husqvarna 603002363

ASM, SPINDLE, LH, EXT

$

$

Not available
