HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) FRONT BODY Parts Diagram

4x2 Utility Vehicle, Electric

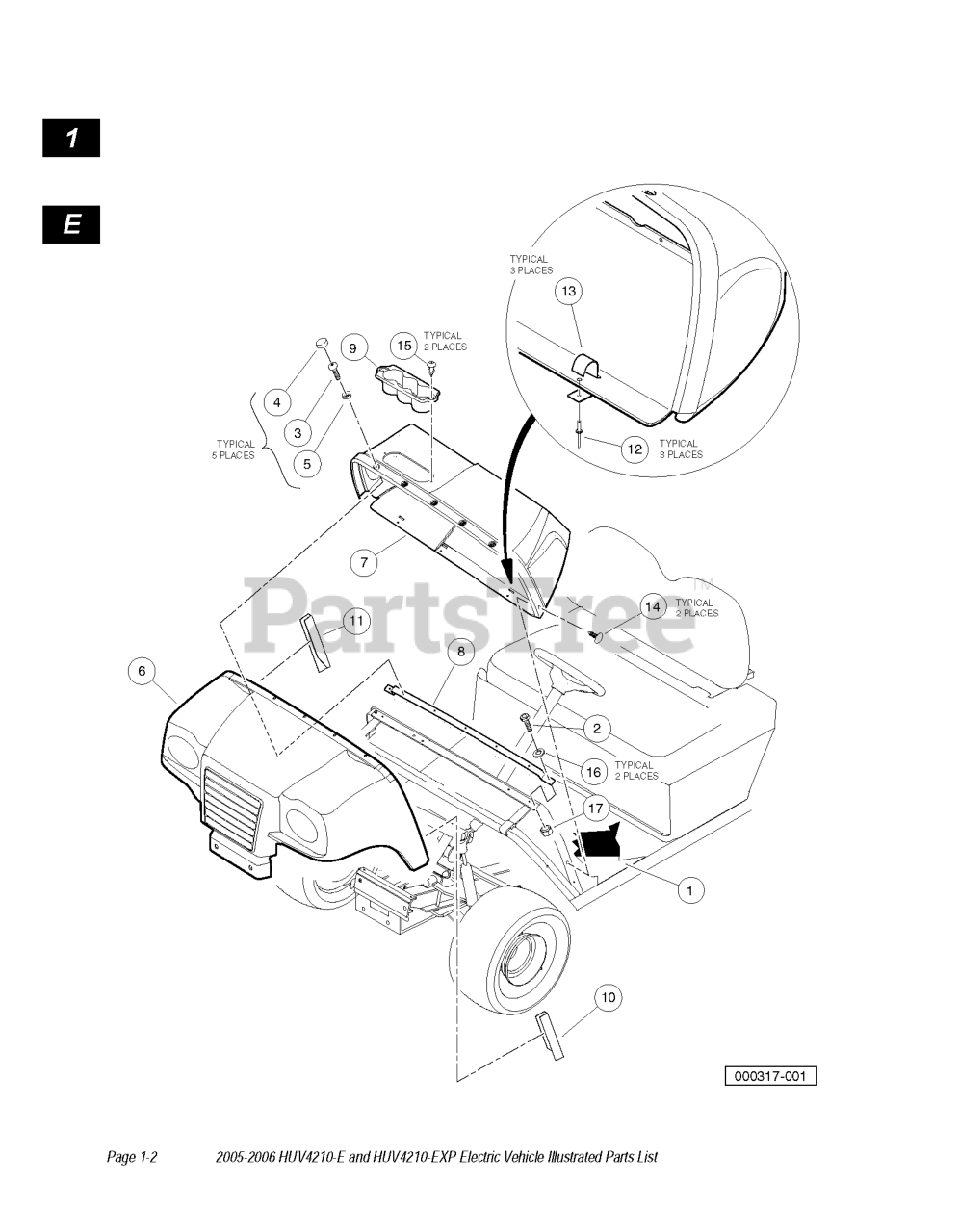

FRONT BODY Parts Diagram

  • Title

2

Husqvarna 603003240

SCREW, 1/4-20 X .750 HEX HEAD

$

$

Not available

1

Husqvarna 603003081

FLOORMAT - DEBADGED

$

$

Not available

9

Husqvarna 603003279

OBJECT HOLDER

$

$

Not available

17

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

7

Husqvarna 603003273

DASH - H2 FORMED

$

$

Not available

5

Husqvarna 603000737

WASHER 1/4 ID SCALLOPED PLAST

$

$

Not available

8

Husqvarna 603003276

UPPER COWL SUPPORT

$

$

Not available

11

Husqvarna 603003290

COWL COVER, PASSENGER

$

$

Not available

15

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

12

Husqvarna 603003296

RIVET

$

$

Not available

10

Husqvarna 603003289

COWL COVER, DRIVER

$

$

Not available

16

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

3

Husqvarna 603000696

SCREW 1/4-20X.75 TORX PN HD

$

$

Not available

4

Husqvarna 603000729

CAP 1/4" PLASTIC SCREW HEAD

$

$

Not available

14

Husqvarna 531307152

PUSH PIN, BLACK

$2.49

$

In Stock, Qty 10

0

13

Husqvarna 603002368

CLIP, DASH

$

$

Not available

6

Husqvarna 603003272

COWL, 4210, ORANGE

$

$

Not available
