HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) BRAKE CABLE Parts Diagram

4x2 Utility Vehicle, Electric

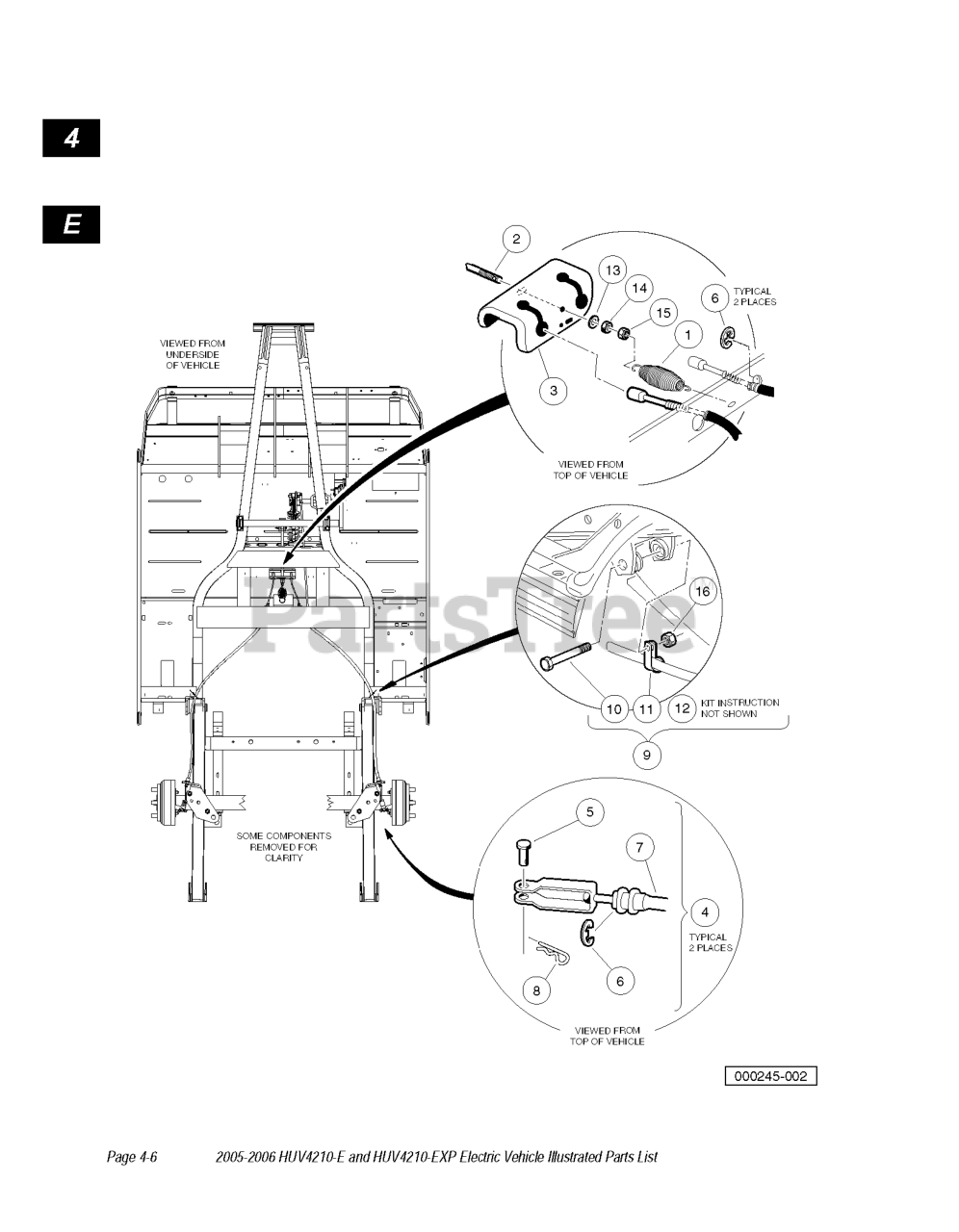

BRAKE CABLE Parts Diagram

  • Title

15

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

11

Husqvarna 603004344

P-CLAMP, BRAKE LINE

$

$

Not available

3

Husqvarna 603003249

EQUALIZER BRACKET

$

$

Not available

10

Husqvarna 603000782

SCREW, 3/8-16 X 3.50 HEX CAP

$

$

Not available

13

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

6

Husqvarna 603000130

E-CLIP, 1/2

$2.49

$

In Stock, only 2 left!

0

8

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

9

Husqvarna 603004345

KIT, FIELD P-CLAMP, BRAKE LINE

$

$

Not available

5

Husqvarna 603000112

CEVIS PIN

$

$

Not available

1

Husqvarna 603000175

SPRING, BRAKE RETURN

$

$

Not available

14

Husqvarna 603000066

NUT, 5/16-18 HEX

$

$

Not available

2

Husqvarna 603003237

ROD, EQUALIZER, 8.91"

$

$

Not available

16

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

4

Husqvarna 603003251

BRAKE CABLE KIT

$

$

Not available

12

Husqvarna 603004376

Instr Fd. P-clamp, Brake Line

$

$

Currently unavailable
