HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2008-04) BATTERY CHARGER A Parts Diagram

4x2 Utility Vehicle, Electric

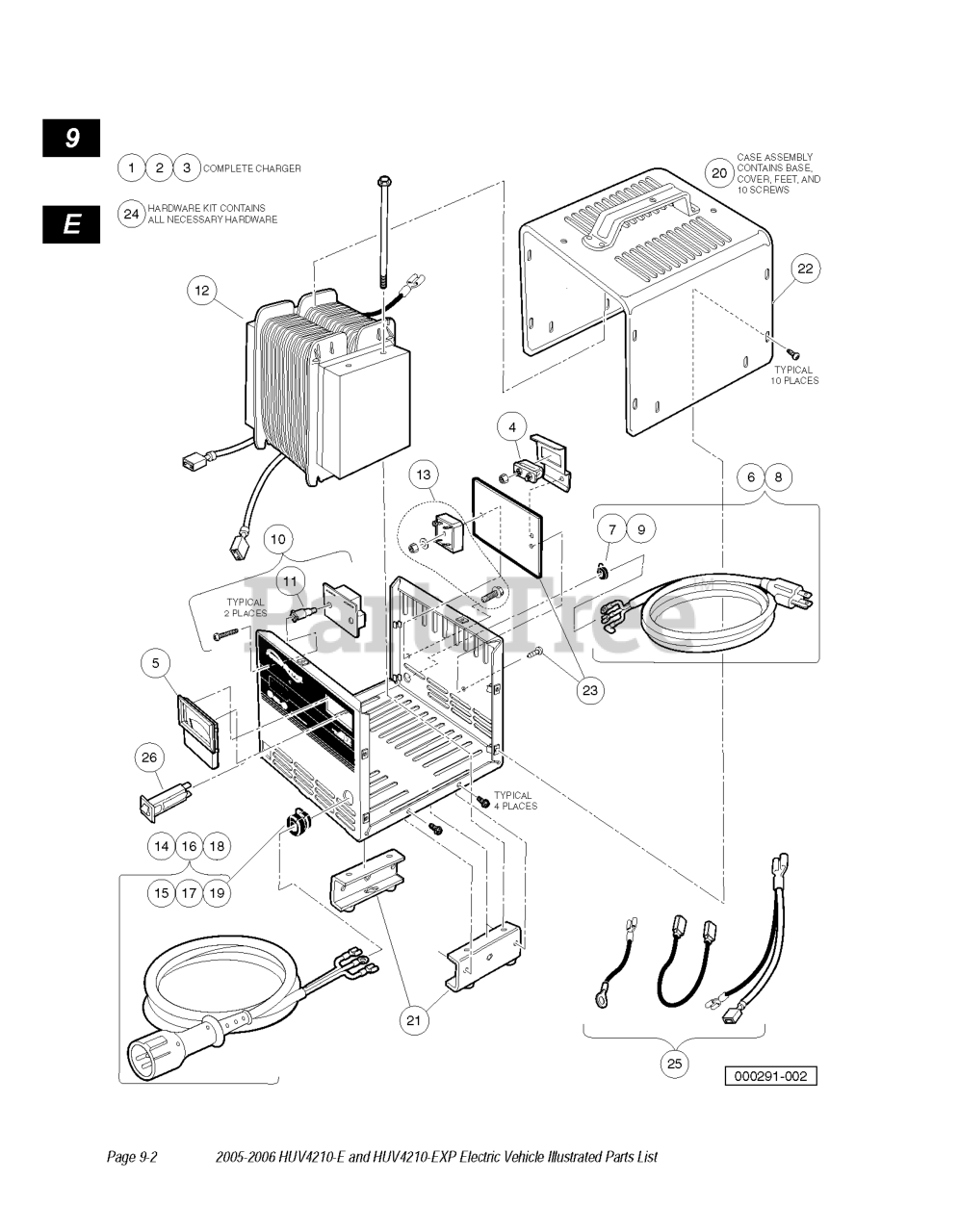

BATTERY CHARGER A Parts Diagram

  • Title

12

Husqvarna 603004396

PD3 Transformer

$

$

Currently unavailable

18

Husqvarna 603004400

PD3 Cordset - DC 205"

$

$

Currently unavailable

24

Husqvarna 603004404

Kit, PD3 Hardware

$

$

Currently unavailable

1

Husqvarna 603004346

Charger, Pd3, 9Dc/6'Ac'

$

$

Not available

20

Husqvarna 603004402

Asm, PD3 Case

$

$

Currently unavailable

2

Husqvarna 603004347

CHARGER, PD3, 12' DC/ 9' AC
(Superseded to 522718621)

$

$

Not available

23

Husqvarna 603004403

Kit, PD3 Heat Sink

$

$

Currently unavailable

5

Husqvarna 603003752

PD2 AMMETER

$

$

Not available

21

Husqvarna 603004401

Asm, PD3 Legs

$

$

Currently unavailable

19

Husqvarna 603003650

DC CORD BUSHING

$

$

Not available

25

Husqvarna 603004405

Kit, PD3 Wires

$

$

Currently unavailable

4

Husqvarna 603003751

PD2 FUSE ASM

$

$

Not available

7

Husqvarna 603003753

PD2 AC CORD BUSHING

$

$

Not available

3

Husqvarna 603004348

CHARGER, PD3, 20' DC/ 9' AC

$

$

Not available

26

Husqvarna 603002503

CIRCUIT BREAKER, 15A/120V

$

$

Not available

16

Husqvarna 603004399

PD3 Cordset - DC 154"

$

$

Currently unavailable

11

Husqvarna 603004394

PD3 Plastic Stand-Offs

$

$

Not available

17

Husqvarna 603003650

DC CORD BUSHING

$

$

Not available

15

Husqvarna 603003650

DC CORD BUSHING

$

$

Not available

13

Husqvarna 603004397

PD3 DIODE BRIDGE

$

$

Not available

6

Husqvarna 603004392

Kit, PD3 Cordset - AC 80"

$

$

Currently unavailable

14

Husqvarna 603004398

PD3 Cordset - DC 113"

$

$

Currently unavailable

9

Husqvarna 603003753

PD2 AC CORD BUSHING

$

$

Not available

10

Husqvarna 603004395

PD3 BOARD ASSY, RELAY

$

$

Not available

22

Husqvarna 603004481

PD3Case Top

Note: INCLUDED HANDLE

$

$

Currently unavailable

8

Husqvarna 603004393

Kit, PD3 Cordset, - AC 114"

$

$

Currently unavailable
