HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Steering Column Parts Diagram

4x2 Utility Vehicle, Electric

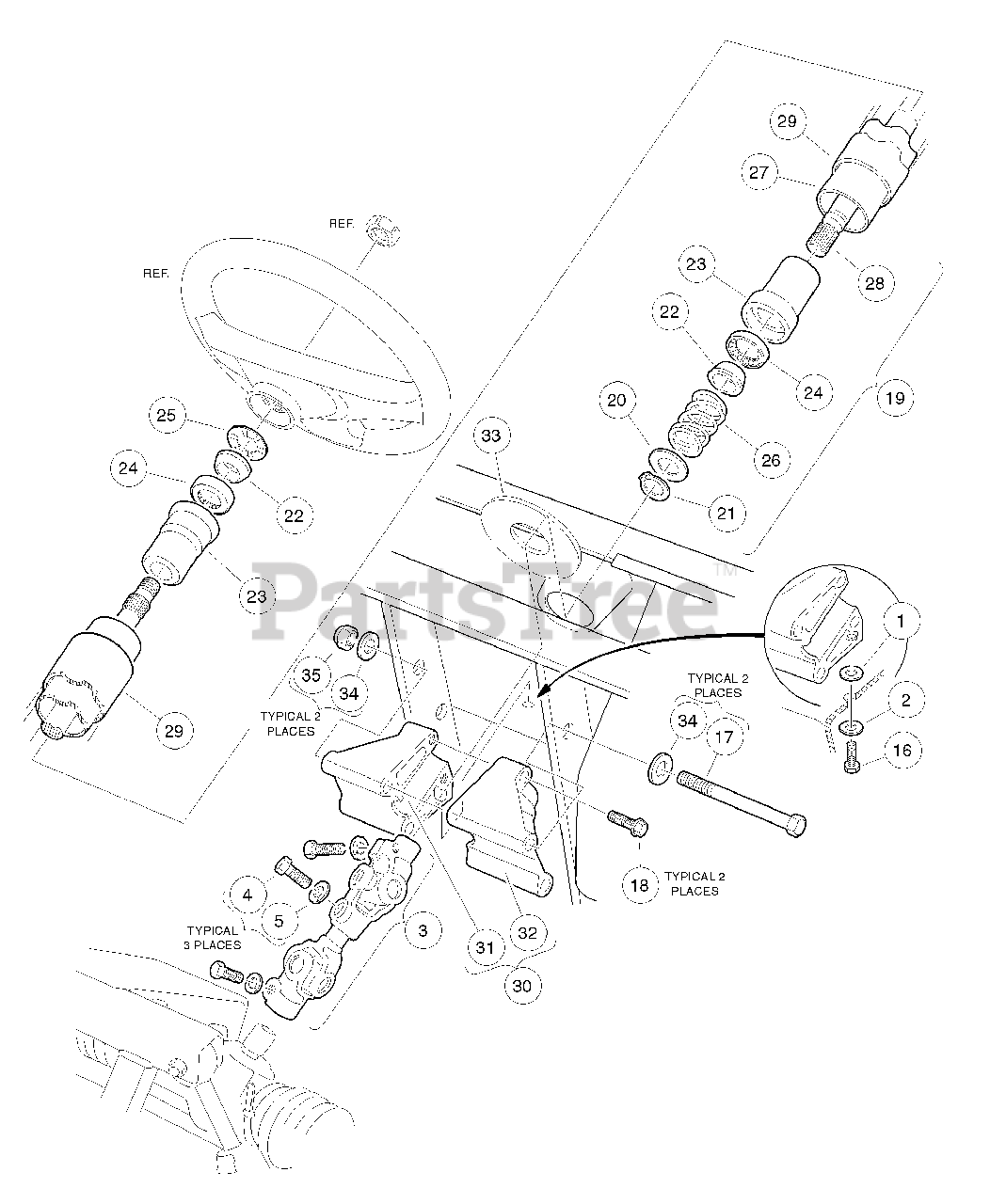

Steering Column Parts Diagram

  • Title

1

Husqvarna 603003045

Washer, 5/16 Type B Flat

$

$

Not available

2

Husqvarna 603000127

Washer, 5/16 Flat

$

$

Not available

3

Husqvarna 603003063

Intermediate Steering Shaft

Note: (includes items 4 and 5)

$

$

Not available

4

Husqvarna 603000386

Bolt, Hex-Head, 8mm X 1.25 - 30

$

$

Not available

5

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

6

Husqvarna 603003073

Steering Column Rebuild Kit

Note: (includes items 7 through 15) Item 6 is not illustrated.

$

$

Not available

7

Husqvarna 603003053

Dust Cover

$

$

Not available

8

Husqvarna 603000148

Ring, 0.579 Internal Retaining

$

$

Not available

9

Husqvarna 603000212

Wedge, Molded

$

$

Not available

10

Husqvarna 603000213

Seat, Plastic Bearing

$

$

Not available

11

Husqvarna 603003071

Seal, Bearing

$

$

Not available

12

Husqvarna 603003072

Spacer, Shaft

$

$

Not available

13

Husqvarna 603000216

Bearing, Ball

$

$

Not available

14

Husqvarna 603000217

Ring, Retaining

$

$

Not available

15

Husqvarna 603000218

Spring, Steering Shaft

$

$

Not available

16

Husqvarna 603000220

Screw, 5/16-18 X 0.75 Thread-Forming

$

$

Not available

17

Husqvarna 603000281

Screw, 3/8-16 X 7.00 Hex Cap

$

$

Not available

18

Husqvarna 603003086

Screw, 5/16-18 Thrd Forming

$

$

Not available

19

Husqvarna 603003161

Steering Shaft Assembly

Note: (includes items 20 through 28)

$

$

Not available

20

Husqvarna 603000147

Washer, 0.675 ID X 1.19 OD

$

$

Not available

21

Husqvarna 603000148

Ring, 0.579 Internal Retaining

$

$

Not available

22

Husqvarna 603000212

Wedge, Molded

$

$

Not available

23

Husqvarna 603000213

Seat, Plastic Bearing

$

$

Not available

24

Husqvarna 603000216

Bearing, Ball

$

$

Not available

25

Husqvarna 603000217

Ring, Retaining

$

$

Not available

26

Husqvarna 603000218

Spring, Steering Shaft

$

$

Not available

27

Husqvarna 603003162

Column, Aluminum Steering

$

$

Not available

28

Husqvarna 603000390

Shaft Steering Column

$

$

Not available

29

Husqvarna 603003163

Tube Cover, Steering Column

$

$

Not available

30

Husqvarna 603003246

Kit, Steering Column Mounting Bracket

Note: (includes items 31 and 32)

$

$

Not available

31

Bracket, RH Steering Column Mount

$

$

Not available

32

Bracket, LH Steering column mount

$

$

Not available

33

Husqvarna 603000868

Boot, Steering Column Round

$

$

Not available

34

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

35

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
